Kev piav qhia

AITR series rho tawm transformer tshwj xeeb yog siv hauv kev kho mob IT systems. Lub transformer core yog ua los ntawm silicon steel ntawv, qhov poob yog me me. Kev kho ob chav rwb thaiv tsev yog saws ntawm windings, thiab lub vijtsam zoo li qub yog tsim los txo cov electromagnetic cuam tshuam ntawm ob lub windings.

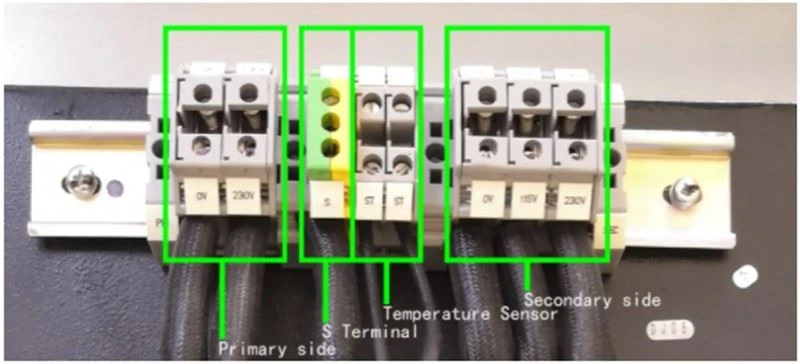

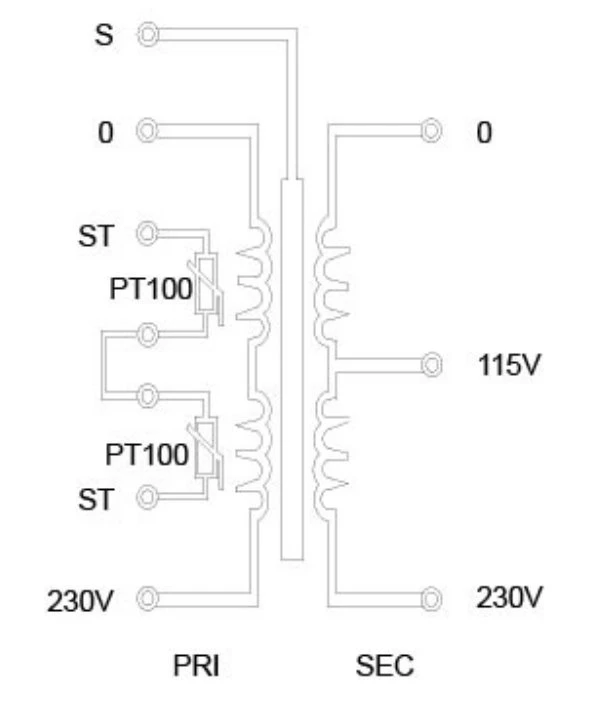

PT100 kub sensor yog ntsia rau hauv winding, uas tuaj yeem siv los saib xyuas qhov ntsuas cua kub. Lub transformer yog kho los ntawm lub tshuab nqus tsev impregnation, uas ua rau kom cov neeg kho tshuab muaj zog thiab muaj ib tug anti{1}}corrosion nyhuv. Tsis tas li ntawd, cov khoom lag luam kuj tseem siv qhov ntsuas kub qis dua - qhov kub thiab txias tsim, kom nws muaj qhov kub thiab txias ua haujlwm zoo thiab tsis muaj suab nrov.

Parameter

Rated Peev Xwm	3.15kVA/5kVA/6.3kVA/8kVA/10kVa
Ntau zaus	50/60Hz
Rated Input Voltage	230V
Rated Tso zis Voltage	230V/115V
(IE) Inrush Tam sim no	<>
Leakage Tam sim no	<>
(UO) Tsis muaj-Load Output Voltage	<>
(IO) Tsis muaj -Load Output Current	<3%>
Luv -Circuit Voltage	<3%>
Kev ua tau zoo	>96 feem pua
Maximum Ambient Kub	<>
Tsis muaj -Load Temperature Rise	<>
Full Load Temperature Rise	<>
Nrog Voltage	4200V / min
Rwb thaiv tsev Class	H
Lub suab nrov	<>

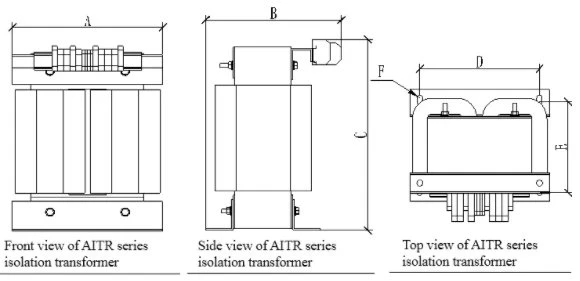

Dimension

Hom	Peev xwm (VA)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	Tag nrho qhov hnyav (kg)
TSI 10000	10000	280	275	427	240	190	φ11	92
TSI 8000	8000	280	265	427	240	190	φ11	90
TIAB SA 6300	6300	280	255	427	240	175	φ11	75
TSI 5000	5000	280	255	427	240	175	φ11	73
TIAB SA 3150	3150	280	225	427	240	175	φ11	53
