Txheej txheem cej luam

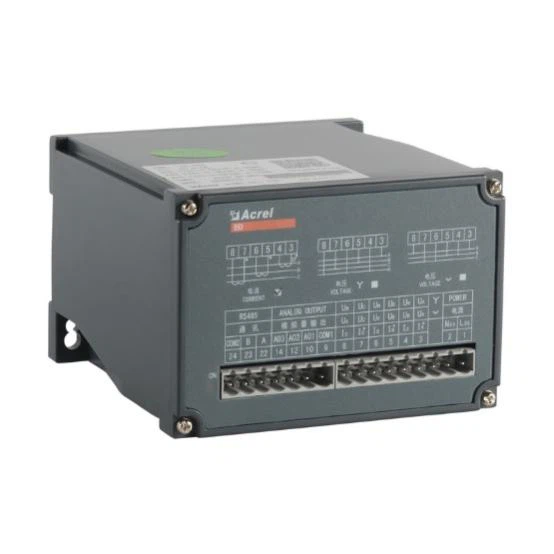

Acrel BD Series hluav taws xob transmitters yog ib qho cuab yeej uas tuaj yeem sib cais thiab xa hluav taws xob tsis zoo, Qhov no BD - 3P series Fais Fab Zaus Transducer tuaj yeem ntsuas lub zog ua haujlwm, lub zog reactive; 1.2 npaug ntawm qhov ntsuas tus nqi overload; DC 0 - 5V / 0 - 10V / 0 - 20mA / 4 - 20mA txhua tus tuaj yeem xaiv ua analog tso zis.

Muaj nuj nqi

		BD - AI BD - AV	wb - F	PAB - PF	BD - 3I3 BD - 3(4)V3	BD - 3(4)P BD - 3(4)Q	BD - 3(4)E
Phase& Txuas	1P2W	√	○	○	○	○	○
	3P3W	—	—	○	○	○	○
	3P4W	—	—	○	○	○	○
Tswv yim	Qhov hluav taws xob	Direct L - L	Txog li 480V AC
		Direct L - N	Mus txog 276V AC
		Nrog sab nraud PT	○	○	○	○	○
	Tam sim no	Ncaj qha	Txog li 5A AC
	Tam sim no	Nrog CT sab nraud	○	○	○	○	○
Tso zis	Tus nqi	DC: 4 - 20mA, 0 - 20mA, 0 - 5V, 0 - 10V, thiab lwm yam
	Load Resistance	Current output≤600Ω Voltage output≥1000Ω
	Ripple Cov ntsiab lus	& lt;0.5% Peak nqi
Kev ntsuas	Qhov hluav taws xob	□	—	—	□
	Tam sim no		—	—	□	□	□
	Active/Reactive zog	—	—	—	—	□	□
	Pom Lub Hwj Chim	—	—		—	□	□
	Hwj chim Factor	—	—	R	—	□
	Ntau zaus					□	□
Kev ntsuas hluav taws xob	±KWh	—	—	—	—	—	○
Qhov tseeb Class	0.5%
Kev sib txuas lus	Interface: RS485 Raws tu qauv: Modbus - RTU			—
Analog tso zis	DC 0 - 5V,0 - 10V,0 - 20mA,4 - 20mA
Pulse Output
Qhov Loj (mm)	Housing (WXHXD)	138X76X24	119X75X55	119X75X55	112X110X75	112X110X75	112X10X75
Pab txhawb zog		85 - 265V AC / DC, DC 24V, 48V DC
Kub	Kev ua haujlwm	- 10 rau 55 degree
Kub	Cia	- 25 rau 70 degree
Cov av noo		Txog 95%, tsis muaj condensing
Kev teeb tsa		(Rail) DIN35 kho ntawm lub cubicle nrog screws
Cov qauv		GB/T 13850
