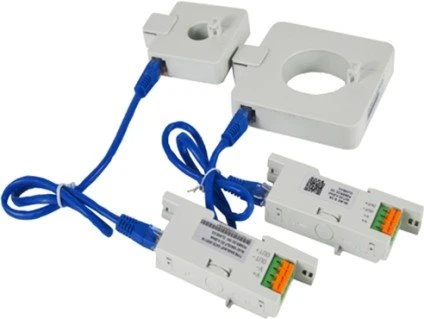

Txheej txheem cej luam

BA series ntse tam sim no sensor siv lub hauv paus ntsiab lus ntawm electromagnetic induction los ntsuas AC tam sim no hauv daim phiaj hluav taws xob hauv lub sijhawm tiag tiag thiab siv cov thev naus laus zis tam sim no thiab cov nyiaj siv hluav taws xob kom cais tawm thiab hloov pauv mus rau tus qauv DC teeb liab tawm, lossis los ntawm RS485 interface. (Modbus-RTU raws tu qauv) xa cov ntaub ntawv ntsuas. DC24V lossis 12V kev nyab xeeb voltage fais fab mov tuaj yeem siv dav hauv kev lag luam automation. BA50L(Ⅱ)-AI yog ib qho AC residual tam sim no transformer, uas feem ntau kuaj pom cov xau tam sim no ntawm cov hluav taws xob hluav taws xob, tuaj yeem tuav cov xwm txheej ntawm cov hluav taws xob hluav taws xob thiab khoom siv txhua lub sijhawm, thiab tiv thaiv hluav taws thiab lwm yam xwm txheej tshwm sim los ntawm kev xau.

Parameter

Technical parameter			Index
Chav kawm raug			Chav kawm 0.5
Tswv yim	Nominal nqi	BA20(Ⅱ)-AI	AC tam sim no {{0}}.5A, 50A, 200A, thiab lwm yam. AC 0-(0.5-200)A
		BA50(Ⅱ)-AI	Tam sim no AC 60A, 300A, 600A, thiab lwm yam. AC 0-(60-600)A
		BA50L(Ⅱ)-AI	AC tam sim no {{0}}.1A, 1A, thiab lwm yam. AC 0-(0.1-1)A
	Tshaj dhau	Nruam 1.2 npaug, tam sim no 10 zaug / 1S
	Absorbed zog	Tsawg dua los yog sib npaug rau 1VA
	Zaus teb	25Hz-800Hz, tshwj xeeb tshaj yog haum rau kev lag luam zaus
Tso zis	Nominal nqi	DC 4-20mA, lossis 0-20mA, 0-5V, 0-10V① thiab lwm yam.
	Load Resistance	Thaum DC12V fais fab mov, cov zis tam sim no Class 0.5is Tsawg dua lossis sib npaug rau 250Ω Thaum DC24V fais fab mov, cov zis tam sim no tsawg dua lossis sib npaug rau 500Ω, Thaum cov zis hluav taws xob ntau dua lossis sib npaug rau 1KΩ
	Kev sib txuas lus	RS485 interface / Modbus-RTU②
Teb sijhawm		Tsawg dua lossis sib npaug li 400ms
Fais fab mov	Qhov hluav taws xob	12V los yog 24V
	Kev siv fais fab	Tsawg dua los yog sib npaug rau 1W
Rwb thaiv tsev tsis kam		＞100MΩ
Compressive zog		Nruab nrab ntawm cov tswv yim / tso zis thiab lub zog hluav taws xob 2.0KV / 1min, 50Hz
Kub Coefficient		-10 degree - ntxiv rau 55 degree , Tsawg dua lossis sib npaug li 400ppm / degree
Ib puag ncig	Kub	Ua haujlwm: -10 degree - ntxiv rau 55 degree Cia: -25 degree - ntxiv rau 70 degree
	Cov av noo	Tsawg dua los yog sib npaug rau 93 feem pua RH, tsis muaj condensation, tsis muaj corrosive gas qhov chaw
	Qhov siab	Tsawg dua los yog sib npaug li 2000m
Txoj kev teeb tsa		TS35 rail, los yog siv cov ntsia hlau los kho lub txee

Lus Cim: ①0-10V tso zis tsuas yog haum rau DC24V fais fab mov;

② Kev sib txuas lus muaj nuj nqi yog xaiv tau.

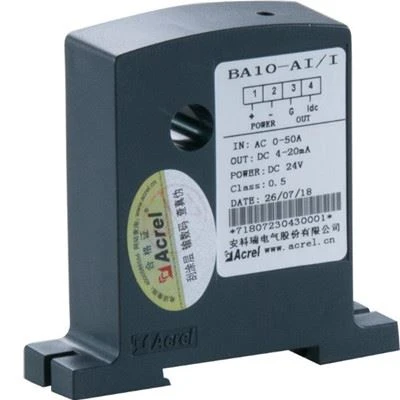

BA10-AI/I

● Daim Ntawv Thov: Muaj automation

●Input: AC tam sim no ntsuas txog 50A

●Overload: 1.2 npaug ntawm tus nqi ntsuas

● Cov zis: DC 4-20mA

BA20-AI/V

● Daim Ntawv Thov: Muaj automation

●Input: AC tam sim no ntsuas txog 200A

●Overload: 1.2 npaug ntawm tus nqi ntsuas

●Output: DC 0-5V

Qhov tshwm sim

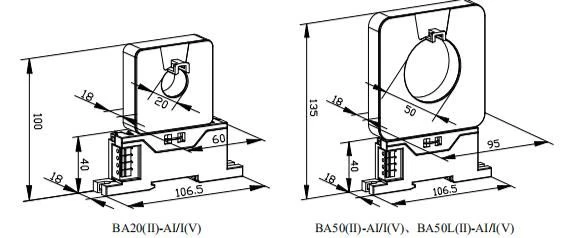

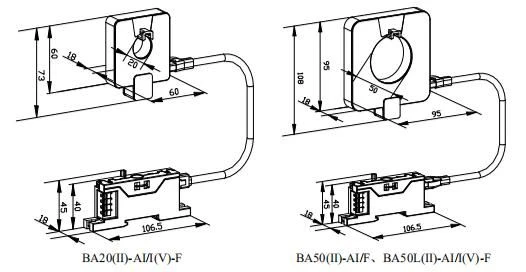

Dimension

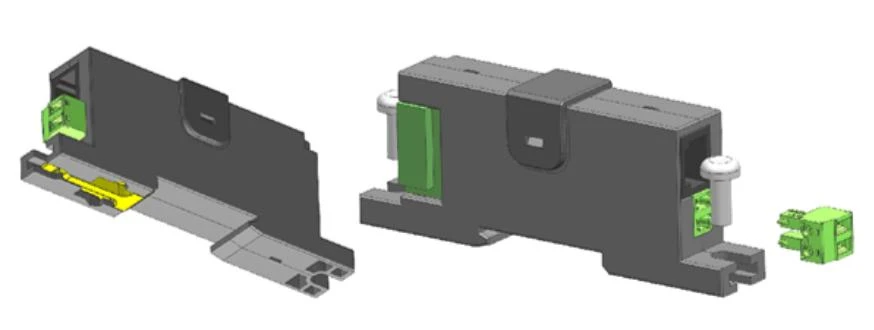

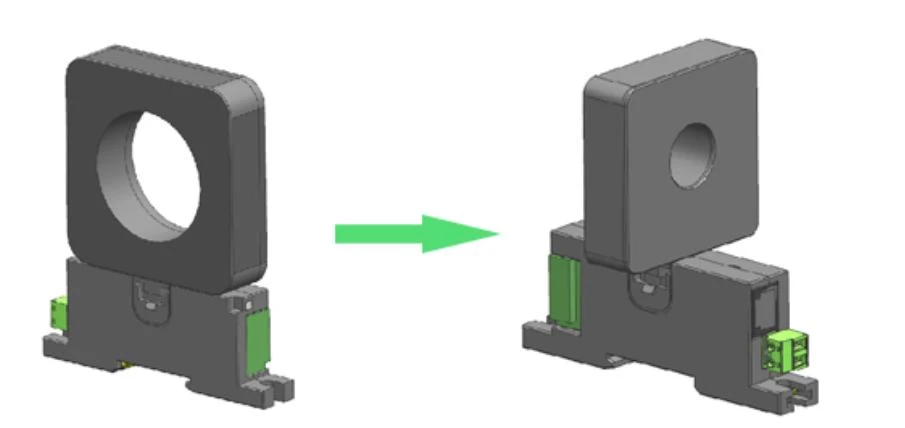

Integrated Installation

Integrated installation, ib tug rotating qauv yuav siv tau nyob rau hauv lub perforated ib feem.

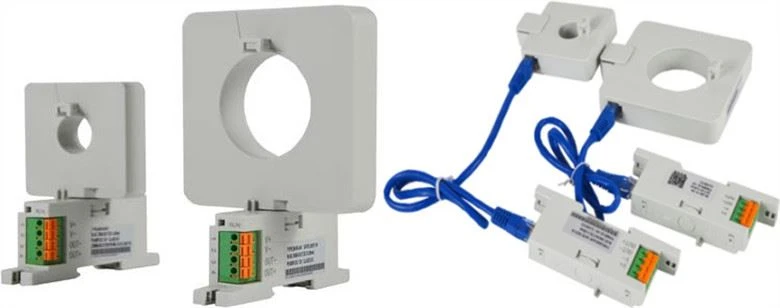

Muaj Φ20, Φ50 ntawm qhov ntau thiab tsawg rau koj xaiv.

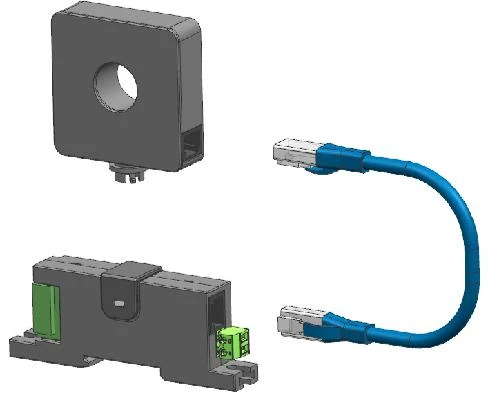

Lub cev tseem ceeb tuaj yeem txuas nrog lub vijtsam zaub txhawm rau txhawm rau tso saib tam sim no thiab teeb tsa tsis tau thaum kev teeb tsa ua ke (siv cov vijtsam uas twb muaj lawm kom deb li deb tau)
