Overviwe

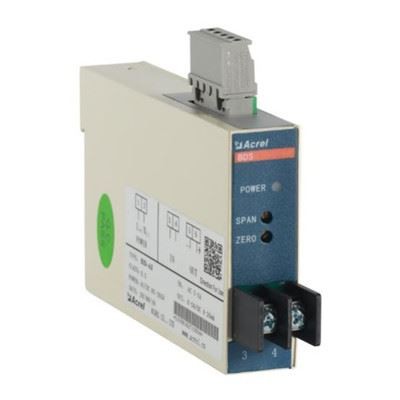

Series BD electric transmitters yog ib qho cuab yeej uas tuaj yeem cais thiab xa cov hluav taws xob tsis zoo, xws li tam sim no, voltage, zaus, lub zog, lub zog hluav taws xob, rau hauv kab DC analog teeb liab lossis cov teeb liab digital. Nws ua tau raws li cov kev cai ntawm National standard GB / T13850-1998, IEC-688.

Muaj nuj nqi

			BD-IB BD-AV	BD-F	BD-PF	BD-3I 3 BD-3(4)V3	BD-3(4) PIB BD-3(4)Q	BD-3(4) E
PhaseWiring		1P2W	√	√	√	√	√	√
		3P3W	—	—	√	√	√	√
		3P4W	—	—	√	√	√	√
Tswv yim	Qhov hluav taws xob	Qhov hluav taws xob	Txog li 480V AC
		Direct L-N	Mus txog 276V AC
		Nrog sab nraud PT	√	√	√	√	√	√
	Tam sim no	Ncaj qha	Txog li 5A AC
	Tam sim no	Nrog CT sab nraud	√	√	√	√	√	√
Tso zis		Tus nqi	DC: 4-20mA, 0-20mA, 0-5V, 0-10V, thiab lwm yam
		Load Resistance	Current output Less than or equal to 600Ω Voltage output Greater than or equal to 1000Ω
		Ripple Cov ntsiab lus	<0.5% peak="">
Kev ntsuas		Qhov hluav taws xob	□	—	—	□
		Tam sim no	□	—	—	□	□	□
		Active/Reactive zog	—	—	—	—	□	□
		Pom Lub Hwj Chim	—	—	—	—	□	□
		Hwj chim Factor	—	—	√	—	□	□
		Ntau zaus		√			□	□
Kev ntsuas hluav taws xob		±KWh	—	—	—	—	—	√
Qhov tseeb Class		0.5 feem pua
Kev sib txuas lus		Interface: RS485 Txoj Cai: Modbus-RTU	□	□	—	□	□	□
Analog tso zis		DC 0-5V, 0-10V, 0-20mA, 4-20mA
Pulse Output
Qhov Loj (mm)		Housing (WXHXD)	138X76X24	119X75X55	119X75X55	112X110X75	112X110X75	112X10X75
Pab txhawb zog			85-265V AC / DC, DC 24V, DC 48V
Kub		Kev ua haujlwm	-10 rau 55 degree
Kub		Cia	-25 rau 70 degree
Cov av noo			Txog li 95 feem pua, tsis muaj condensing
Kev teeb tsa			(Rail) DIN35 kho ntawm lub cubicle nrog screws
Cov qauv			GB/T 13850
