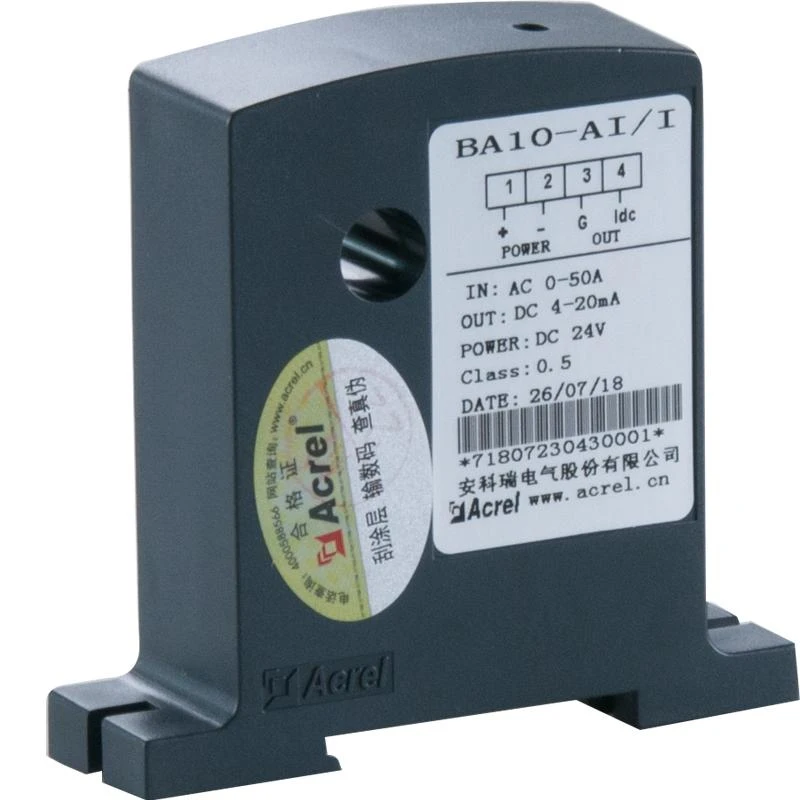

4-20MA tam sim no Transducer

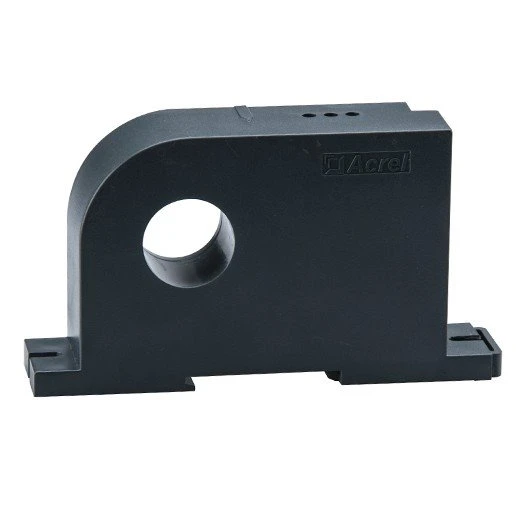

BA Analog Tam sim no Sensor / tam sim no transducer siv lub hauv paus ntsiab lus ntawm electromagnetic induction los ntsuas AC tam sim no hauv daim phiaj hluav taws xob hauv lub sijhawm, thiab siv cov thev naus laus zis tsis tu ncua thiab cov nyiaj siv hluav taws xob tawm los cais tawm thiab hloov pauv mus rau tus qauv DC cov zis tawm. Feem ntau siv hauv kev lag luam automation rau PLC.

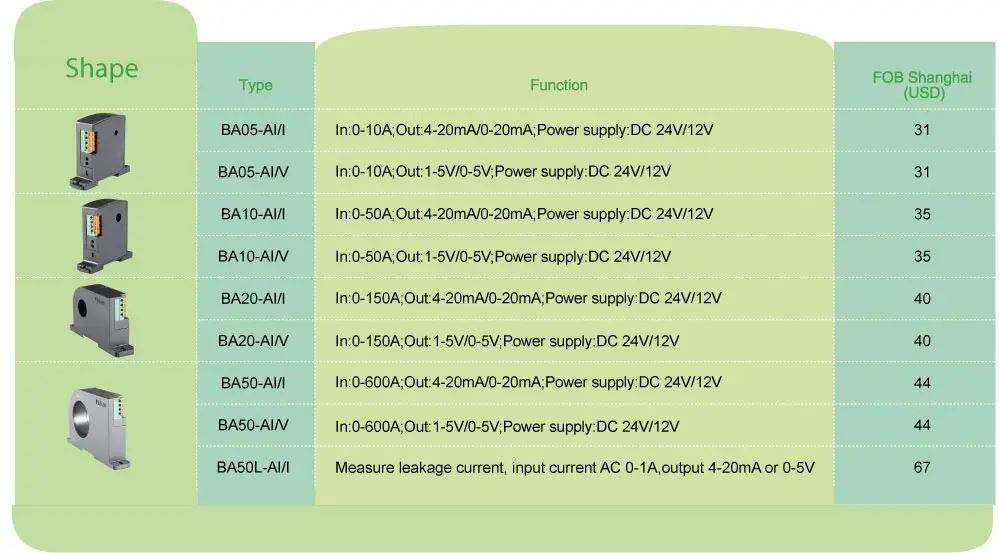

		BA05-AI/I (V)	BA10-AI/I (V)	BA20-AI/I(V)	BA50-AI/I (V)	BA50L-AI/I(V)
Pab txhawb zog	DC 12 V	DC 12 V DC 24 V	DC 12 V DC 24 V	DC 12 V DC 24 V	DC 12 V DC 24 V	DC 12 V DC 24 V
	DC 24 V
Kev noj haus		Tsawg dua los yog sib npaug rau 1W	Tsawg dua los yog sib npaug rau 1W	Tsawg dua los yog sib npaug rau 1W	Tsawg dua los yog sib npaug rau 1W	Tsawg dua los yog sib npaug rau 1W
Los ntawm - qhov loj		φ5mm	φ10mm	φ20mm	φ50mm	φ50mm
Tswv yim	Tam sim no	AC {{0}}(0.510)A	AC 0(850)A	AC 0(40200)A	AC 0(60600)A	AC {{0}}(0.11)A (Kev txwv ntawm cov dej ntws tawm)
Tso zis	Nominal nqi	DC4-20mA, 0-20mA, 0-5V, 0-10V thiab lwm yam
	Load kuj	Current output Less than or equal to 500Ω,Voltage output Greater than or equal to 1kΩ
Qhov tseeb Class		0.5 feem pua
Teb sijhawm		Tsawg dua lossis sib npaug li 350ms
Kub		Kev Ua Haujlwm: -10 rau ntxiv rau 55 degree Cia: -25 rau ntxiv rau 70 degree
Kub coefficient		Tsawg dua lossis sib npaug li 200ppm / degree
Kev teeb tsa		(Rail) DIN35, kho ntawm cubicle nrog screws
Cov qauv		GB/T 13850

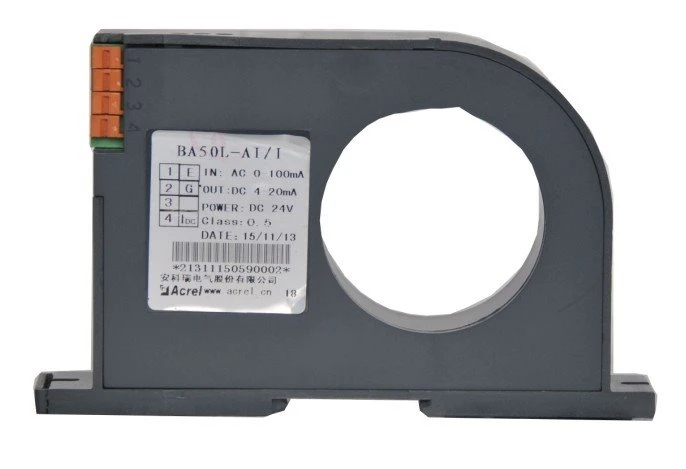

	BA50-AI/I ●Input: 0-1A Leakage Current ●Output: DC 4-20mA ●Measurement of Leakage Current ●Overload: 1.2 times of Rated Value
BA20-AI/V ●Application: Industrial automation ●Input: AC current measurement up to 200A ●Overload: 1.2 times of the rated value ●Output: DC 0-5V

●Higher accuracy ●Higher Level of Isolation ●Higher Safety Level ●Lower Consumption

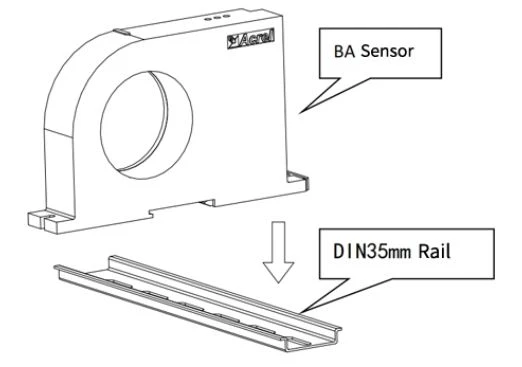

Xaiv qhov chaw tsim nyog rau nruab tus qauv DIN35mm rail, thiab nruab BA sensor ntawm txoj kev tsheb ciav hlau;

Nyob rau hauv qab lub vaj huam sib luag ntawm lub txee, xaiv ib qho chaw tsim nyog qhib ob lub qhov threaded sib raug rau txoj hauj lwm ntawm lub qhov ruaj khov ntawm lub teeb tsa sensor; Tom qab tso lub sensor, nruab qhov chaw ntsia hlau

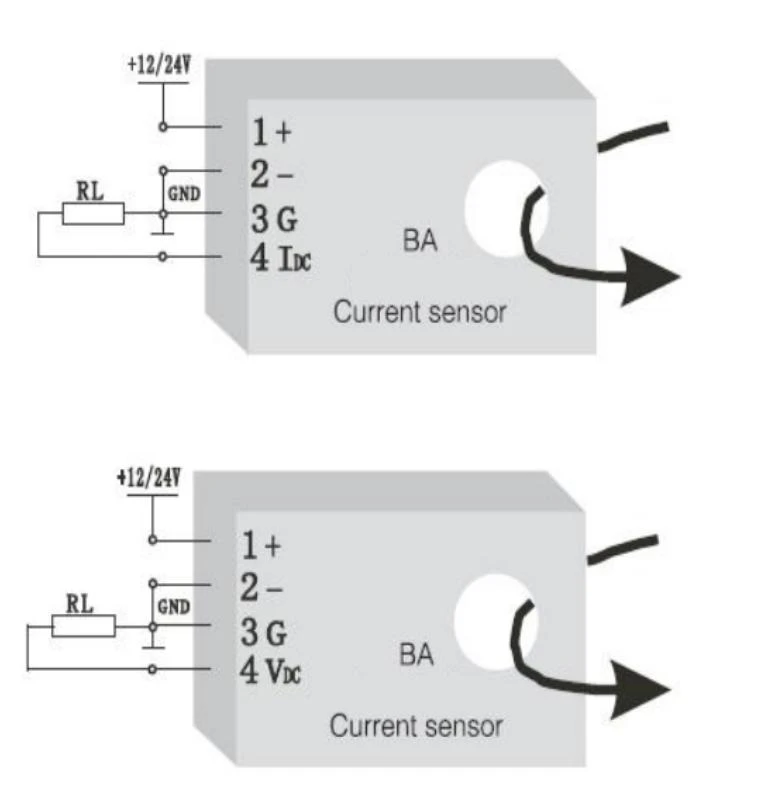

1 —— plus Positive power supply (not reversed)

2 —— - Power EARTH

3 —— G（Current output negative, which can be shared with the power supply）

4 —— IDC(Current output positive),VDC(Voltage output positive)
