Khoom piav qhia

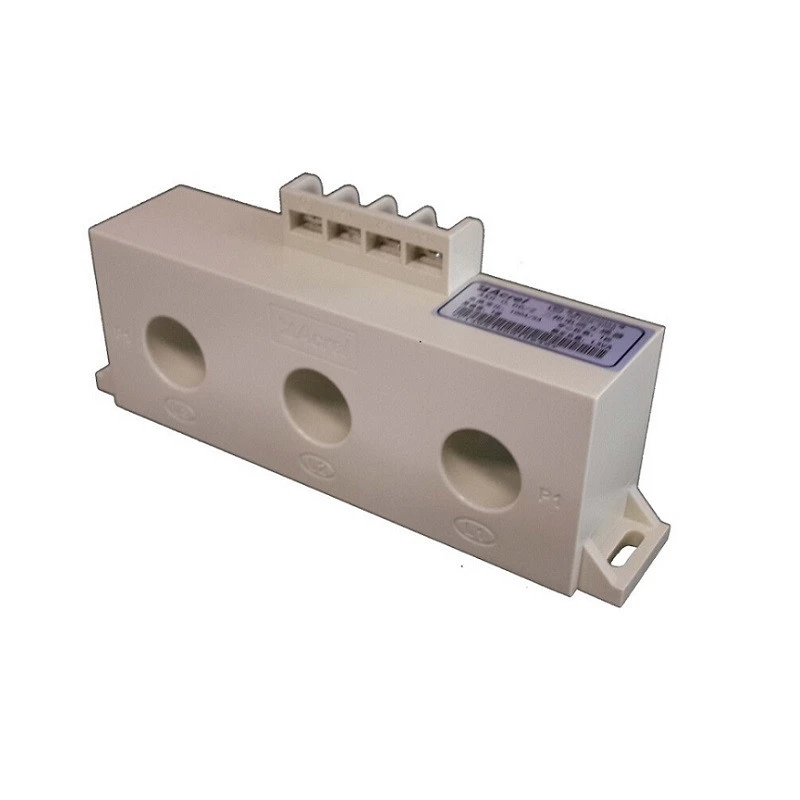

Acrel Peb Theem Tam Sim No Transformer muaj qhov zoo nkauj zoo nkauj thiab yooj yim xaim. Cov khoom siv plhaub yog pob tshab polycarbonate, uas yog siv los ua AC tam sim no cov teeb liab nrhiav tau. Ua kom peb lub - qhov ua ke tuaj yeem txo qhov chaw nruab thiab thaiv ntawm lub transformer tam sim no, thiab txo tus nqi rau cov neeg siv.
Qhov tshwm sim
Peb theem tam sim no Transformer yog tsim rau Din - Rail mounting uas yuav pab tau peb cov neeg muas zaub yooj yim installation thiab txuag tau ntau qhov chaw. txo tus nqi ntawm kev ua haujlwm thiab kev xaim. Muaj ntau yam khoom siv rau DIN - rail mounting enclosures, xws li iav fiber reinforced nylon, PPT, ntshiab polycarbonate, nplaim - retardant PC/ABS alloy.
Tsis muaj
Hom | Piv txwv | Class & Burden（VA/Ω） | Dia. (mm) | ||
0.2 | 0.5 | 1.0 | |||
Z - 3×Φ20 | 5 - 100/5A | 1.5 V.V | Φ20 | ||
150/5A | 1.5 V.V | ||||
200/5A | 2.5 V.V | ||||
5 - 100/1A | 1.5Ω | ||||
150/1A | 1.5Ω | ||||
200/1A | 2.5Ω | ||||
5 - 200A/50mA | 10Ω | ||||
100 - 200A / 20mA | 10Ω | ||||

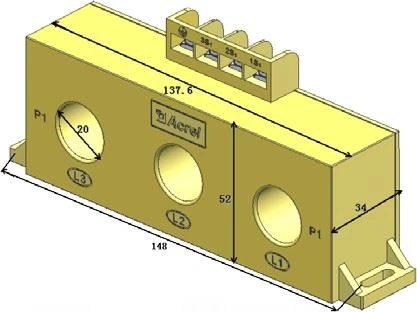

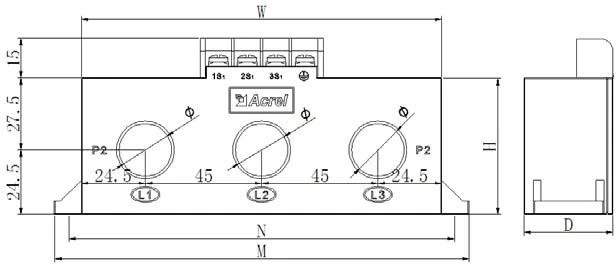

Qhov ntev
| Cov duab Hom | Loj | Qhov Loj | Nruab Qhov Loj | Qhov txawv | |||
W | H | D | Φ | M | N | ||
AKH - 0.66/Z - 20 | 138 | 52 | 34 | 20 | 159 | 148 | ±1 |
