Kev piav qhia

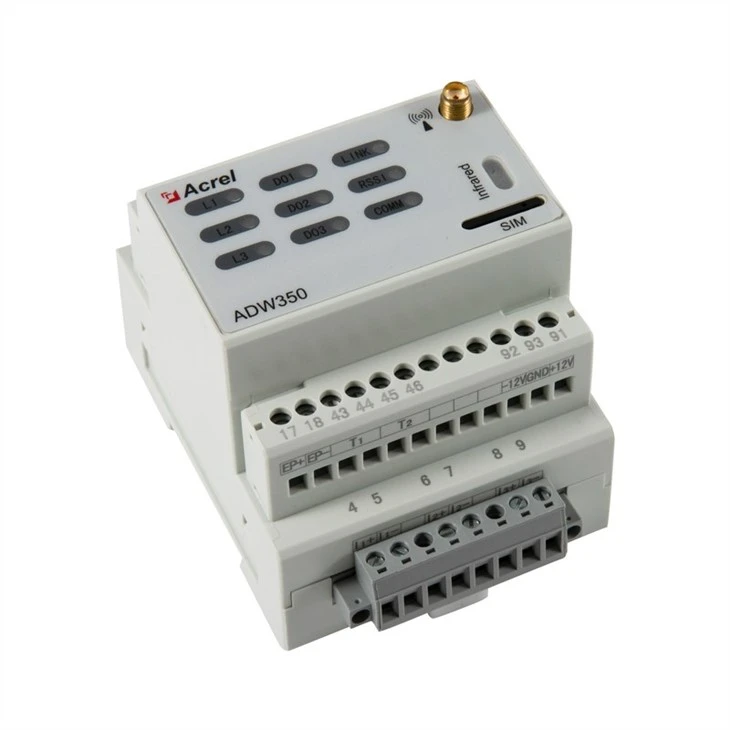

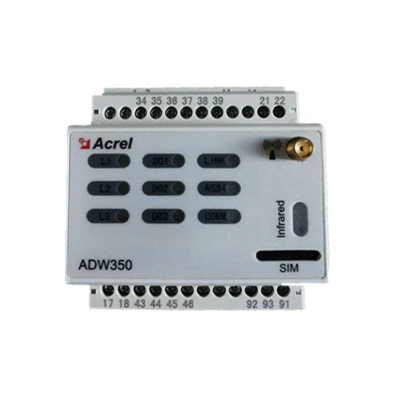

ADW350 Wireless Metering Meter feem ntau yog siv los ntsuas peb -theem lub zog ntawm cov hluav taws xob qis. Cov khoom boasts ntawm zoo xws li compact loj, siab precision, nplua nuj nta. Raws li cov kev xav tau sib txawv, muaj ntau yam kev sib txuas lus xws li RS485 kev sib txuas lus, NB, 4G, ntxiv cov qauv qauv tshiab tam sim no siv lub tshuab hluav taws xob sab nraud.

Nws tuaj yeem hloov kho tau yooj yim rau hauv lub thawv xa khoom kom ua tiav cov khoom siv hluav taws xob hluav taws xob ntsuas hluav taws xob, kev ua haujlwm thiab kev saib xyuas lossis kev saib xyuas lub zog rau cov cheeb tsam sib txawv thiab cov khoom sib txawv.

Parameter

Voltage input	Rated voltage	AC: 357.7/100V, 3220/380V, 3380/660V, 3100V, 3380V, 3660V; Lub hwj chim: 48V DC
	Kev siv zaus	AC: 50Hz
	Kev noj haus	<0.5va (each="">
Cov tswv yim tam sim no	Input tam sim no	AC: 320 (100) A DC: 50A, 100A
Cov tswv yim tam sim no	Kev noj haus	<1va (each="">
Pab txhawb zog	Fais fab mov	Lub hwj chim: 85265V DC: 48V±20 percent
Pab txhawb zog	Kev siv fais fab	<>
Kev ntsuas kev ua tau zoo	Hluav taws xob parameter	Chav kawm 0.5
Kev ntsuas kev ua tau zoo	Active zog raug	Chav kawm 1
	Qhov kub thiab txias	-40 degree 100 degree
	Kub raug	±2 degree
Ua	Tiv tauj Rating	5A, AC250V / DC30V
mem tes	Dav ntawm mem tes	80±20ms
mem tes	Pulse tas li	AC: 400imp/kWh DC: 1600imp/kWh
Kev sib txuas lus	Wireless	2g;4g ib
	Infrared kev sib txuas lus	Qhov baud tas li yog 1200
	Interface	RS485 (A, B)
	Kev sib txuas hom	Shielded twisted khub conductors
	raws tu qauv	MODBUS-RTU

Qhov tseeb

Chav kawm 0.5
Kev ntsuas
U, I, P, Q, S, PF, F
Harmonic muaj nuj nqi

THD, 2nd-31st
DI/ ua
3 DO

Ntsuas Channel

3 DC Channel lossis 1 AC Channel Peb Theem

Dimension (LWH)
7271.592.6 hli
Kev teeb tsa
DIN 35 hli
Kev sib txuas lus

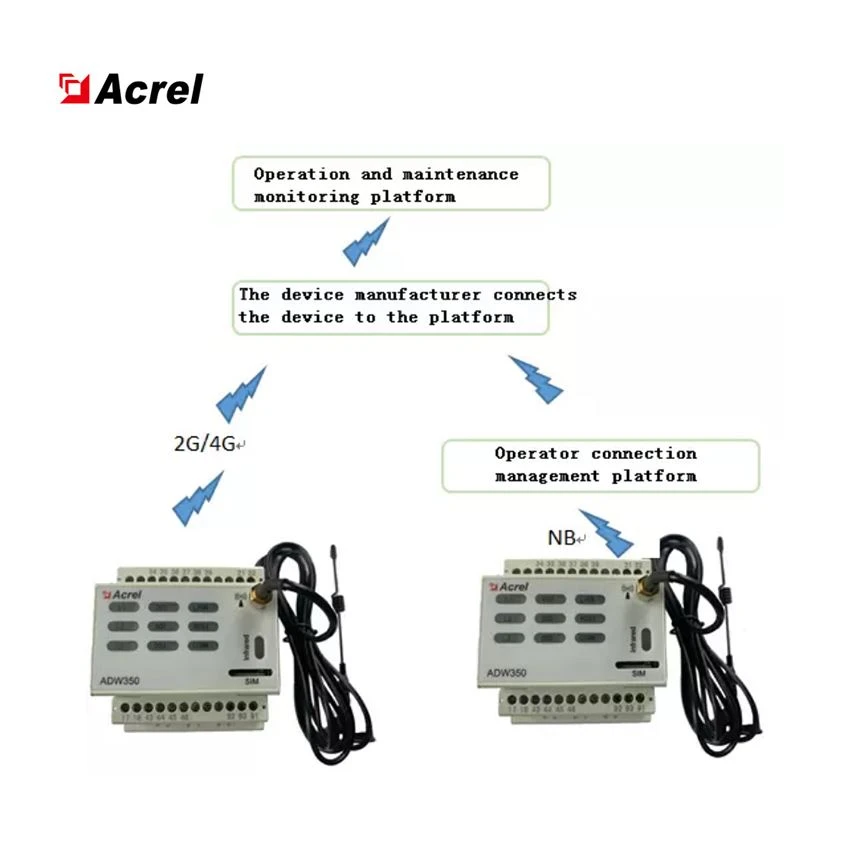

NB-IOT, Infrared, 2G, 4G
Kev ntsuas kub
Ob txoj kev kub

Qhov tshwm sim

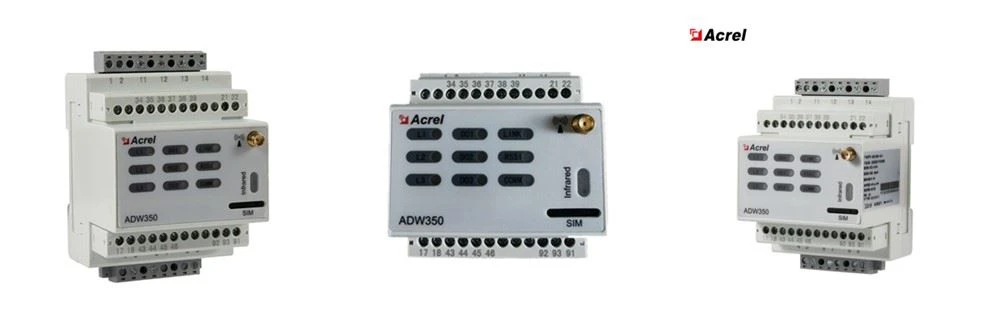

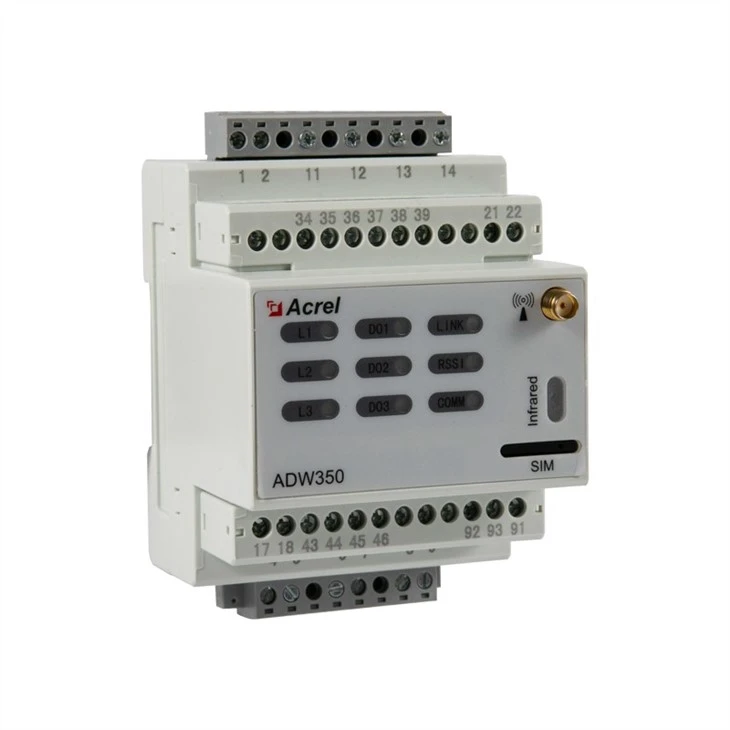

112999a_

Yuav ua li cas xaiv koj DC transformer

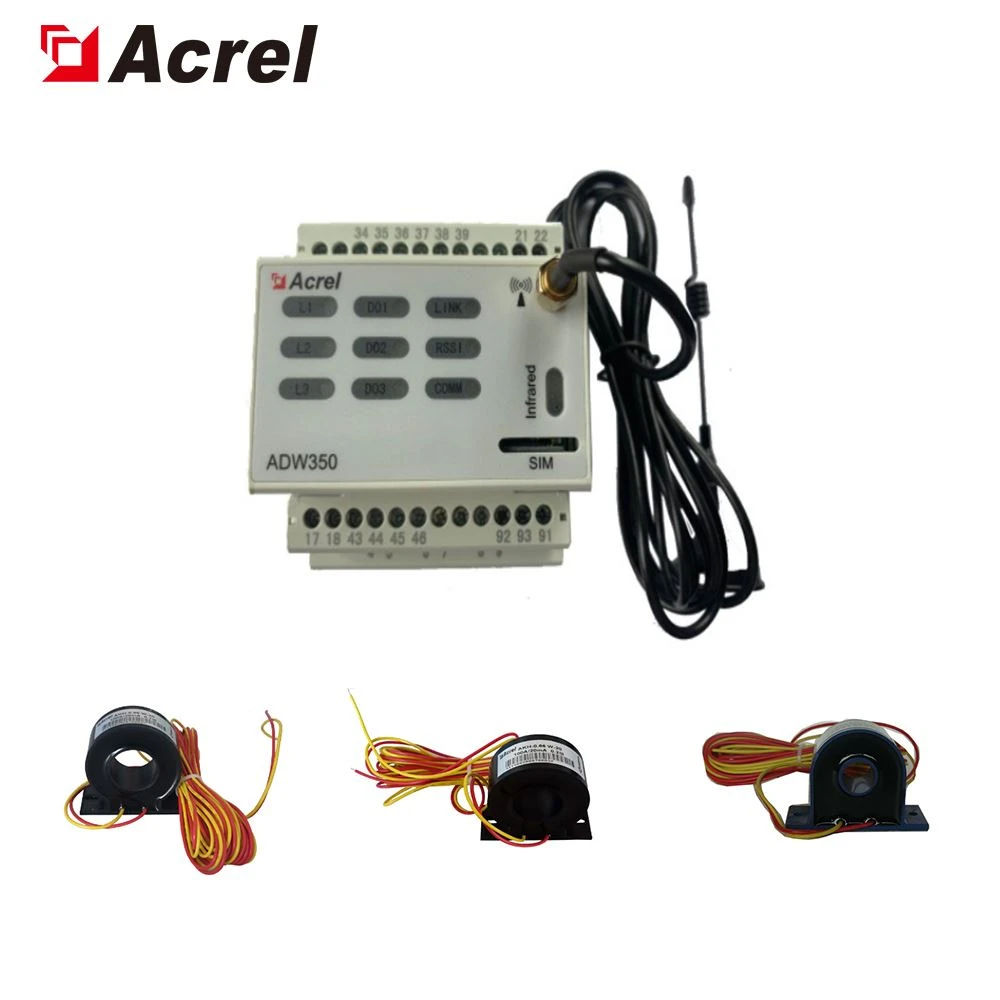

with ct ac

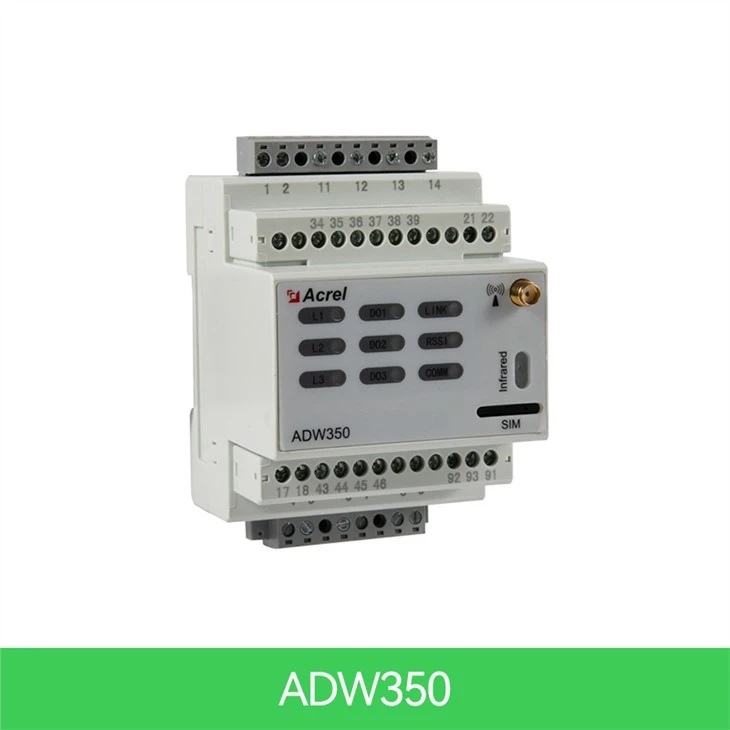

ADW350 Wireless DC Multi-Loop Din Rail Energy Meter feem ntau yog siv los ntsuas DC lossis peb lub zog AC lub zog ntawm lub network tsis tshua muaj hluav taws xob. Cov khoom boasts ntawm zoo xws li compact loj, siab precision, nplua nuj nta.

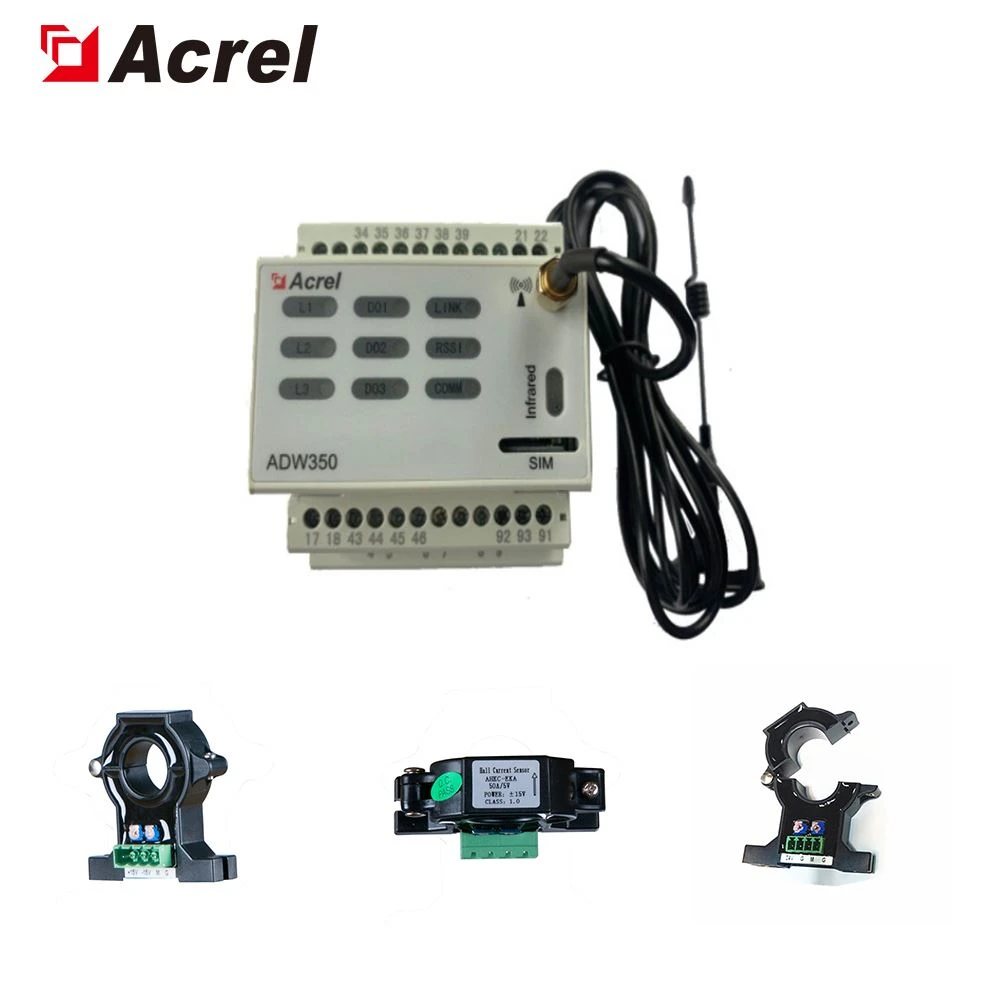

with hall dc

Raws li cov kev xav tau sib txawv, muaj ntau yam kev sib txuas lus xws li RS485 kev sib txuas lus, NB, 4G, ntxiv cov qauv qauv tshiab tam sim no siv lub tshuab hluav taws xob sab nraud.
