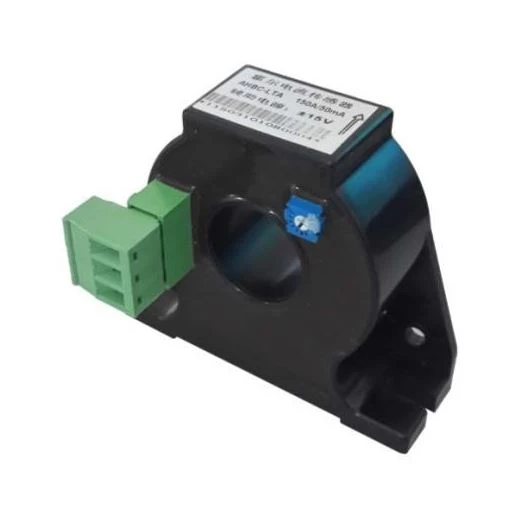

Kaw-loop Hall tam sim no sensor tseem hu ua Hall sib nqus ntsuas tam sim no sensor. Nws suav nrog cov kev xav hais txog nrog kev sib nqus ntsuas kev xav. Nyob rau hauv lwm yam lus, lub ferromagnetic teb concentrator concentrates lub magnetic teb generated los ntawm thawj tam sim no thiab siv nws mus rau lub Hall tivthaiv. Tom qab ntawd qhov hluav taws xob teeb liab tawm ntawm Hall tivthaiv yog amplified thiab dhau los ua cov tswv yim ntawm lub zog amplifier. Lub offset tam sim no tso zis ntws los ntawm lub thib ob compensating kauj. Qhov sib nqus teb generated los ntawm theem nrab coil yog opposite rau lub teb generated los ntawm thawj tam sim no. Nyob rau hauv xws li txoj kev, thawj daim teb yog compensated thiab Hall tso zis yog maj mam txo. Thaum thawj qhov chaw sib npaug rau qhov thib ob thiab qhov offset tam sim no ruaj khov, nws yog qhov sib nqus sib nqus.Qhov Circuit Court no feem ntau muaj cov khoom siv hluav taws xob hloov pauv hluav taws xob, hluav taws xob amplifier thiab tsav kev them nyiaj hluav taws xob.
1 Kev piav qhia rau hom
2 Spec. thiab loj (unit: mm)

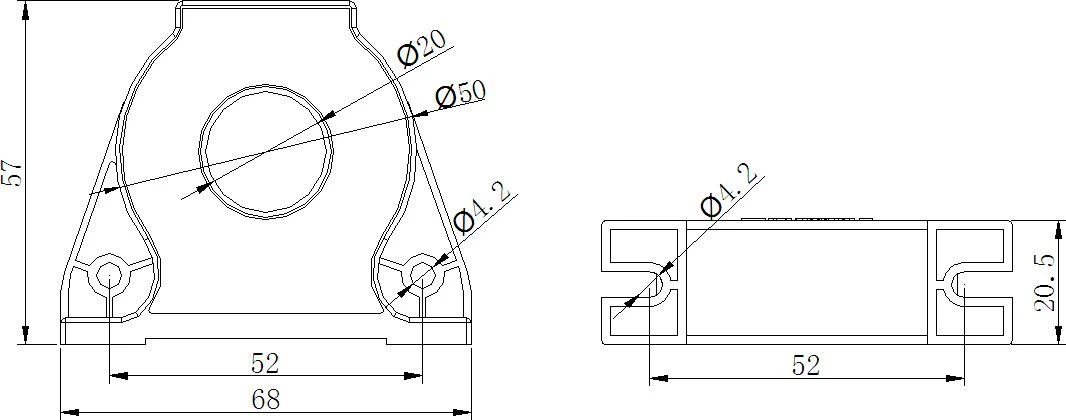

2.1 Qhov loj me ntawm AHBC-LTA
 |
 |

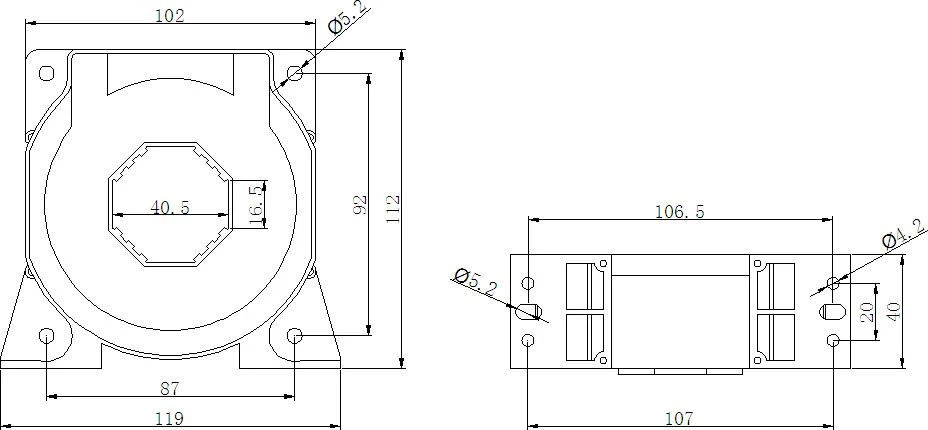

2.2 Cov lus piav qhia loj ntawm AHBC-LT1005
 |
 |

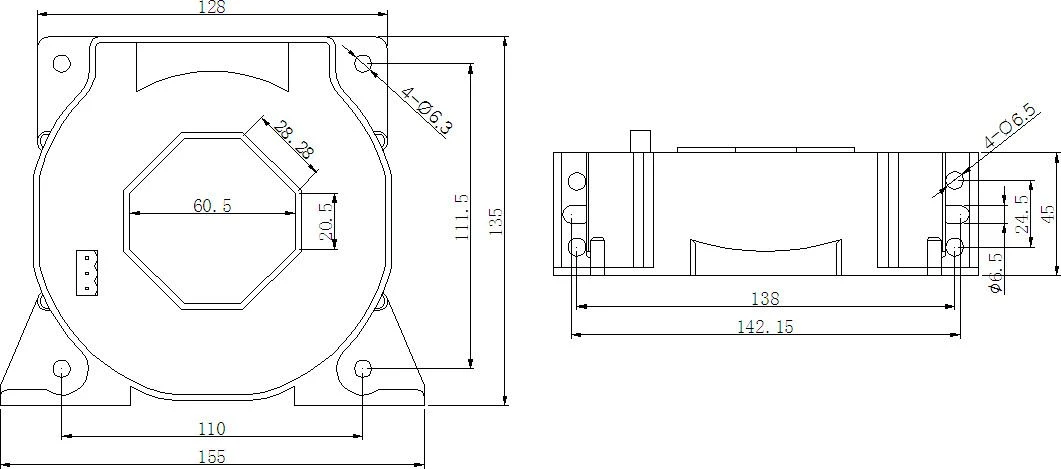

2.3 Qhov loj me ntawm AHBC-LF
 |
 |
3.Cross-reference rooj ntawm spec. - parameter
|
Specification |
Rated tam sim no |
Fais fab mov |
Rated tso zis |
Kev ntsuas aperture (mm) |
Precision degree |
|
AHBC-LTA |
100-300A |
±15V |
50mA / 100mA |
φ 20 |
0.5 |
|
AHBC- TIAB SA 1005 |
1000A |
±15V |
200 mA |
/ |
0.5 |
|
AB-LF |
2000A |
±15V |
400 mA |
/ |
0.5 |
Lus Cim: AC thiab DC input tam sim no tuaj yeem ntsuas tau, thov qhia thaum xaj.
Txoj kev txuas
● Cov ntsiab lus ntawm cov kab hluav taws xob terminals
Lus Cim: 1. Analog tso zis GND yuav tsum tau txuas nrog fais fab av.
2. Thov xaiv cov kev taw qhia ntws tam sim no kom raug.
