Product Description
Kaw - voj Hall tam sim no sensor tseem hu ua Hall sib nqus ntsuas tam sim no sensor. Nws suav nrog cov kev xav hais txog nrog kev sib nqus ntsuas kev xav. Nyob rau hauv lwm yam lus, lub ferromagnetic teb concentrator concentrates lub magnetic teb generated los ntawm cov thawj tam sim no thiab siv nws mus rau lub Hall tivthaiv. Tom qab ntawd qhov hluav taws xob hluav taws xob tso tawm los ntawm Hall tivthaiv yog amplified thiab dhau los ua cov tswv yim ntawm lub hwj chim amplifier. Lub offset tam sim no tso zis ntws los ntawm lub thib ob compensating kauj.
Qhov sib nqus teb generated los ntawm lub kauj kauj ruam thib ob yog rov qab mus rau qhov chaw tsim los ntawm thawj qhov tam sim no. Nyob rau hauv xws li ib tug txoj kev, lub thawj teb yog compensated thiab lub Hall tso zis yog maj mam txo. Thaum thawj qhov chaw sib npaug rau qhov thib ob thiab qhov offset tam sim no ruaj khov, nws yog qhov sib nqus sib nqus. Qhov Circuit Court no feem ntau muaj cov khoom siv hluav taws xob hloov hluav taws xob, hluav taws xob amplifier thiab tsav hluav taws xob them nyiaj hluav taws xob.
Qhov tshwm sim
Dimension

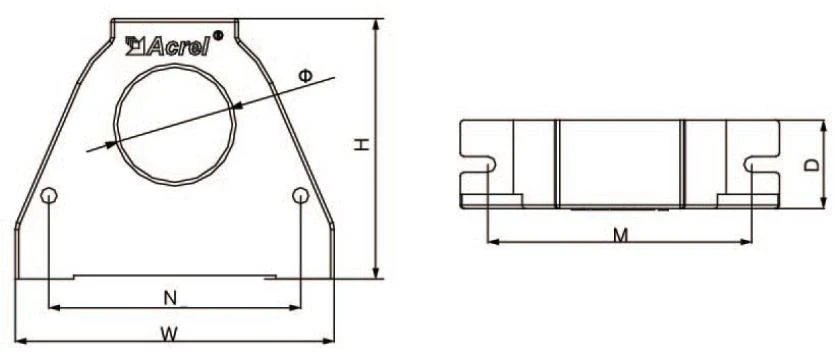

Fig.1

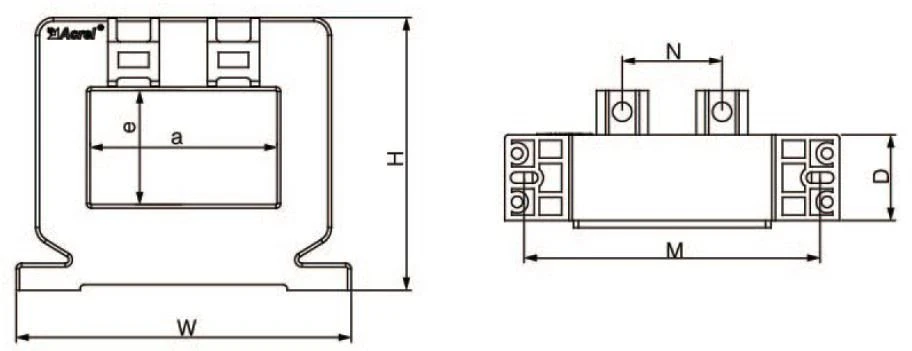

Fig.2
Loj Specification | Daim ntawv loj (mm) | Los ntawm qhov loj (mm) | Mounting | Daim duab | |||||
W | H | D | a | e | Φ | M | N | ||
AHKC - E | 53 | 72 | 16 | / | / | 21 | 47 | / | Fig.1 |
AHKC - LT | 90 | 73.5 | 25 | / | / | 32.5 | 74.5 | 71 | Fig.1 |
AHKC - BS | 43 | 32.5 | 19 | 20.5 | 10.5 | / | / | / | Fig.2 |
AHKC - BSA UA | 43 | 32.5 | 19 | 20.5 | 10.5 | / | / | / | Fig.2 |
AHKC - F | 74 | 57 | 22 | 43 | 13 | / | / | 22 | Fig.2 |
AHKC - FA | 94 | 60.5 | 26.5 | 52 | 15 | / | 83 | 28 | Fig.2 |
AHKC - TSI | 94 | 76.5 | 24 | 52.5 | 32 | / | 83 | 28 | Fig.2 |
Qhov ntsuas tam sim no
| Specification | Rated tam sim no | Fais fab mov | Rated tso zis | Kev ntsuas aperture (mm) | Precisio n degree |
AHKC - E | 0～(20 - 500)A | ±15V | 5V | φ 20 | 1 | |
AHKC - LT | 0～(100 - 800)A | ±15V | 5V | φ 32.5 | 1 | |
AHKC - BS | 0～(20 - 500)A | ±15V | 5V | 20.5*10.5 | 1 | |
AHKC - BSA UA | DC 0～(50 - 500)A | 12V/15V/24 V | 4～20mA | 20.5*10.5 | 1 | |
AHKC - F | 0～(200 - 1000)A | ±15V | 5V | 43*13 | 1 | |
AHKC - FA | 0～(200 - 1500)A | ±15V | 5V | 52*15 | 1 | |
AHKC - TSI | 0～(400 - 2000)A | ±15V | 5V | 52*32 | 1 |
Lus Cim: Kev ntsuas tam sim no tsis muaj npe qhia tias AC thiab DC cov tswv yim tam sim no tuaj yeem ntsuas tau, thov qhia thaum xaj.
Kev xaim
● Definition of wiring terminals
● Definition of wiring terminals
Nqe lus
