Khoom piav qhia

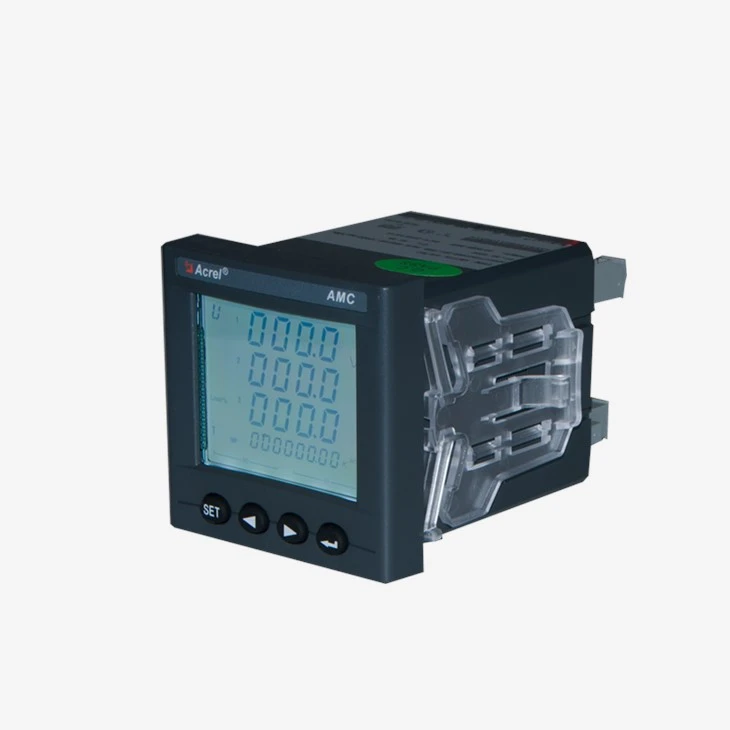

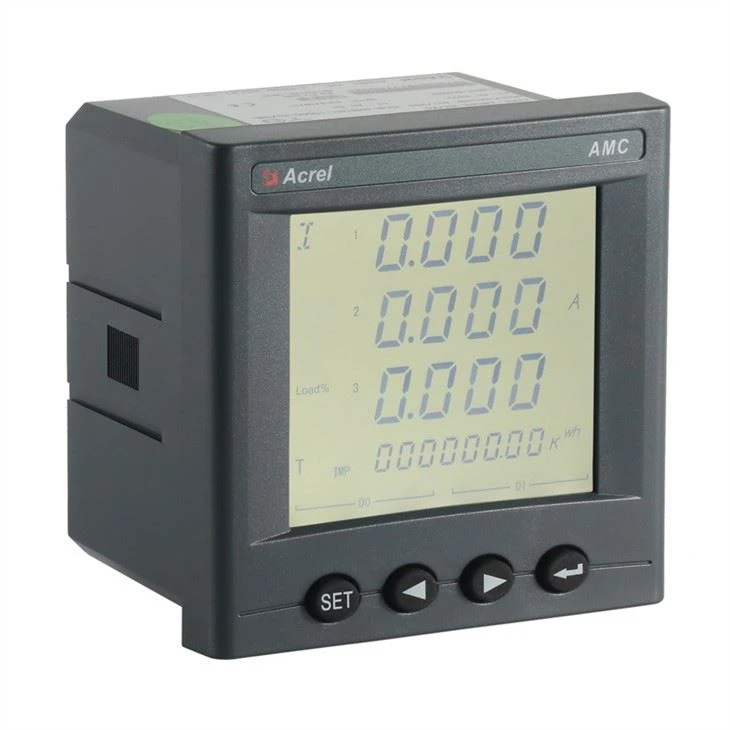

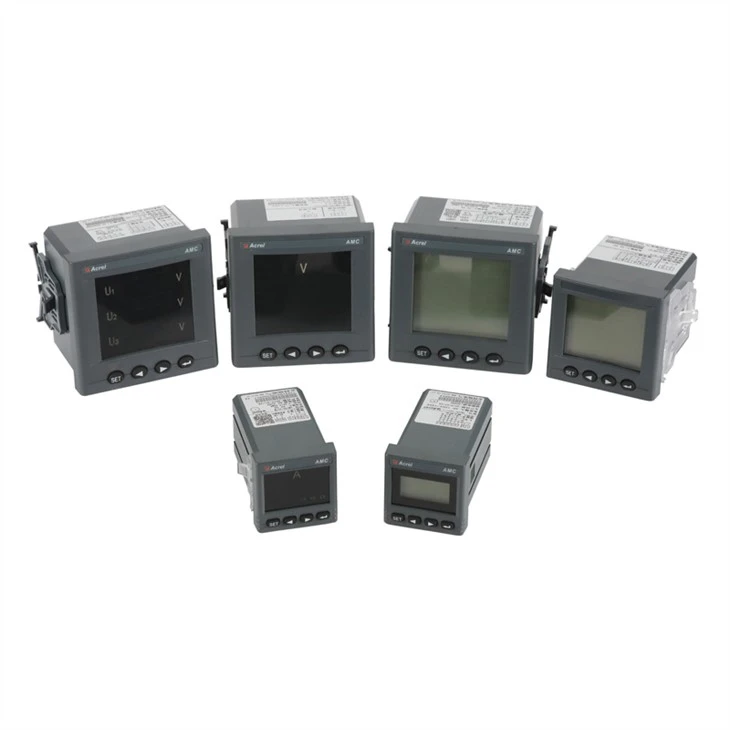

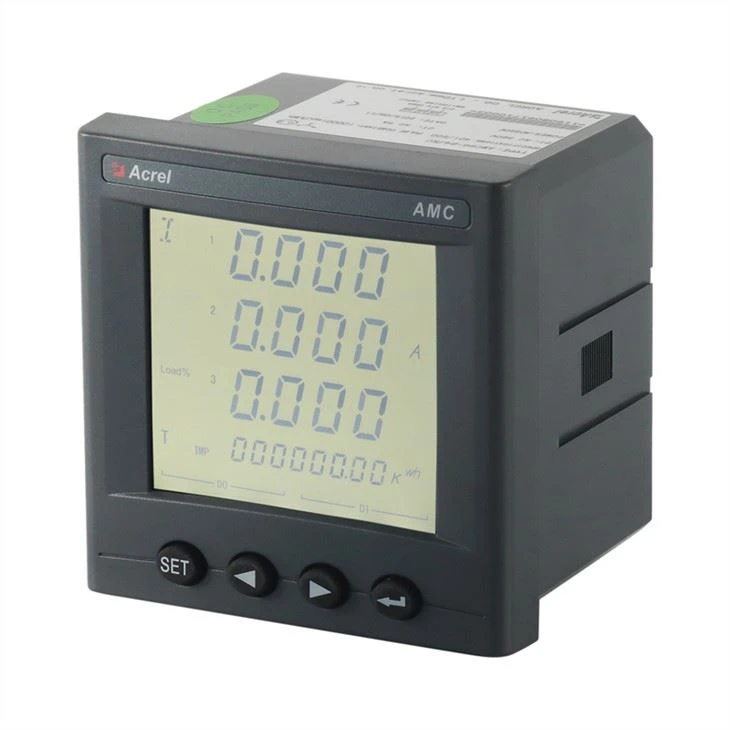

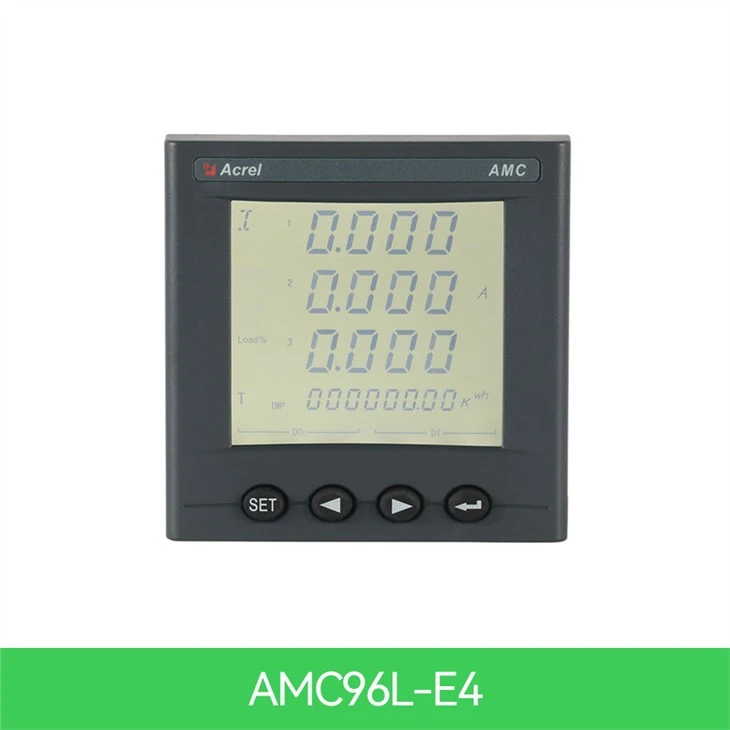

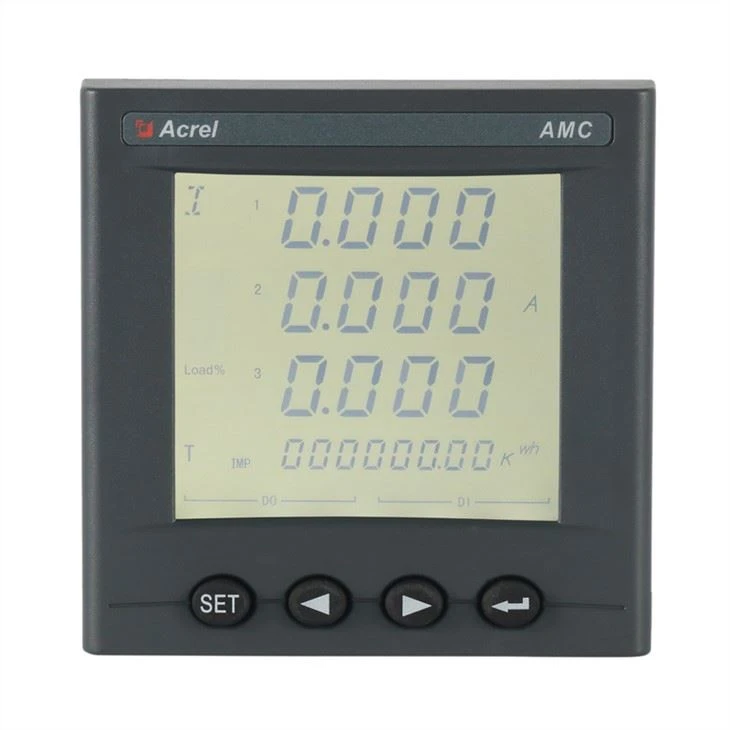

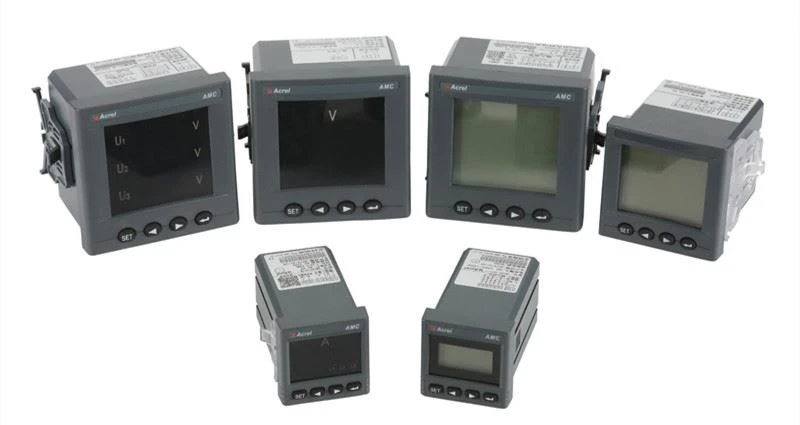

Acrel AMC Series Vaj Huam Sib Luag Peb Theem AC Fais Fab Meter, cov khoom siv hluav taws xob ntse sau thiab saib xyuas yog lub ntsuas ntsuas ntse tsim los rau kev saib xyuas cov kev xav tau ntawm lub zog hluav taws xob, kev lag luam thiab kev lag luam mining, kev siv hluav taws xob, thiab cov tsev ntse. Nws suav nrog kev ntsuas kev ntsuas hluav taws xob (xws li ib zaug - theem lossis peb - theem tam sim no, qhov hluav taws xob, thiab lub zog nquag). Lub zog, lub zog reactive, pom lub zog, zaus, lub zog muaj zog) thiab kev saib xyuas lub zog thiab kev ntsuas kev tswj xyuas.

Nyob rau tib lub sij hawm, nws muaj ntau yam peripheral interface functions rau cov neeg siv xaiv los ntawm: nrog RS485 kev sib txuas lus interface, MODBUS - RTU raws tu qauv yuav ua tau raws li cov kev xav tau ntawm kev sib txuas lus network tswj; 4 - 20mA analog tso zis tuaj yeem ua raws li qhov ntsuas hluav taws xob tsis zoo, ua tau raws li DCS Cov kev xav tau zoo li no; nrog hloov cov tswv yim thiab relay tso zis tuaj yeem paub txog kev ua haujlwm ntawm" tej thaj chaw deb teeb liab" thiab" chaw taws teeb tswj" ntawm Circuit Court breaker hloov.

Qhov tshwm sim

High - brightness LED / LCD zaub interface, parameter teeb tsa thiab tswj los ntawm cov nyees khawm, zoo tagnrho rau - lub sijhawm saib xyuas lub zog. Yuav ncaj qha hloov cov pa hluav taws xob transmitters thiab ntsuas ntsuas. Raws li ib qho kev txawj ntse, digital pem hauv ntej - kawg tau txais kev tivthaiv, cov cuab yeej tau siv dav hauv ntau lub tshuab tswj, SCADA systems thiab kev tswj hwm lub zog.

Tsis muaj

Technical parameters			Tus nqi
Tswv yim	Kev sib txuas		3 - theem - 3 - hlau, 3 - theem - 4 - hlau
	Ntau zaus		45 - 65Hz
	Qhov hluav taws xob		Kev ntsuas: Three - phase: AC 3×57.7V/100V(100V),3×220V/380V(400V), 3×380V/660V(660V)(96 size only) Lus Cim: 72 profile tsis haum rau kev siv hluav taws xob siab
			Overload: 1.2 fold rating {nruam): 2 fold rating rau 1 thib ob
			Kev siv fais fab:< 0.5="">
	Tam sim no		Kev ntsuam xyuas: AC IA, 5A
			Overload: 1.2 quav kev ntsuam xyuas (nruam); 10 quav kev ntsuam xyuas rau 1 thib ob
			Kev siv fais fab:< 0.5="">
Tso zis	Hluav taws xob		Cov zis hom: qhib - sau duab - coupler mem tes
			Pulse tas li: 10000imp / kWh (settable), saib daim duab thaiv kom paub meej;
	Kev sib txuas lus		RS485port, Modbus - RTU raws tu qauv, DLT645 raws tu qauv (versions 07 thiab 97), baud tus nqi 1200 ~ 38400
Muaj nuj nqi	Hloov cov tswv yim		Qhuav tiv tauj input, ua - hauv fais fab mov;
	Hloov cov zis		Cov zis hom: Relay nquag qhib kev sib cuag cov zis
			Kev sib cuag muaj peev xwm: AC 250V / 3A, DC 30V / 3A
	Analog tso zis		1 - 5V,4 - 20mA
Chav kawm raug			Zaus: {{0}}.05Hz, Tam sim no, Voltage:0.2 chav kawm, Reactive zog: l .0class, Reactive Electric zog: l .0class, nquag lub zog: {{0}}.5class, lub zog hluav taws xob: 0.5class,2 - 31th harmonic measurement:±1%
Fais fab mov			AC 85 - 265V DC 100V - 350V	kev siv fais fab ≤10VA
Kev ruaj ntseg	Fais fab zaus withstand voltage		Nruab nrab ntawm lub hwj chim mov // Hloov cov zis / / tam sim no cov tswv yim / / voltage input thiab Transmitting // Kev sib txuas lus // Pulse Output // hloov cov tswv yim AC 2 kV 1min; Nruab nrab ntawm cov khoom siv hluav taws xob, hloov cov zis, cov tswv yim tam sim no, qhov hluav taws xob tawm tswv yim AC 2 kV 1min; Ntawm Kev Sib Txuas Lus, Kev Sib Txuas Lus, Pulse Output, hloov cov tswv yim AC 1 kV 1 min;
	Rwb thaiv tsev tsis kam		Input,Output end to machine enclosure >100MΩ
Ib puag ncig		Kub	Ua haujlwm: - 25 degree ~ + 65 degree cia: - 40 degree ~ + 80 degree
		Cov av noo	≤93%RH Non - condensing
		Qhov siab	≤2500m

Function Description

Muaj nuj nqi	Cov lus piav qhia ua haujlwm	Function muab
Kev ntsuas kWh	Active kWh (zoo thiab tsis zoo)	■
	Reactive kWh (zoo thiab tsis zoo)	■
	A. B, C faib - theem zoo active zog	■
Kev ntsuas ntawm hluav taws xob parameter	U,I	■
Kev ntsuas ntawm hluav taws xob parameter	P, Q, S, PF, F	■
Kev ntsuas ntawm harmonics	2 ~ 31ST Voltage thiab tam sim no harmonic	£
LCD zaub	12-ntsis seem LCD zaub, lub teeb tom qab	■
Ntsiab programming	4 tus yuam sij rau kev sib txuas lus thiab teeb tsa tsis muaj	■
Pulse tso zis	Active pulse tso zis	■
Analog Analog tso zis	2 DI2 ua	■
Kev sib txuas lus	Kev sib txuas lus interface: RS485, Kev sib txuas lus raws tu qauv: MODBUS - RTU	■
SOE	Cov ntaub ntawv xwm txheej	£

( ■ within £ optional )

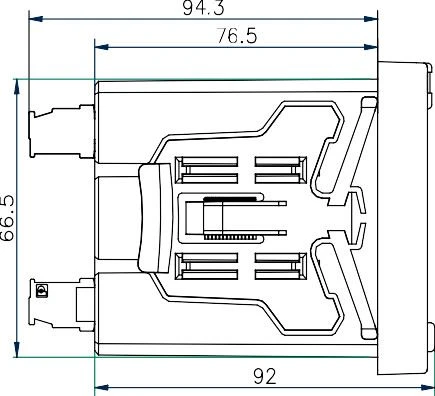

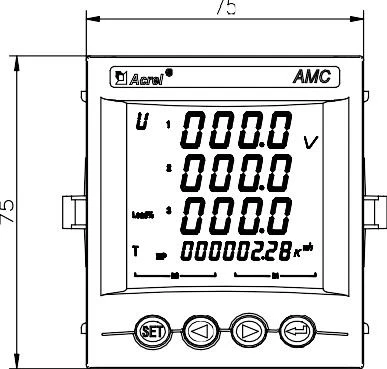

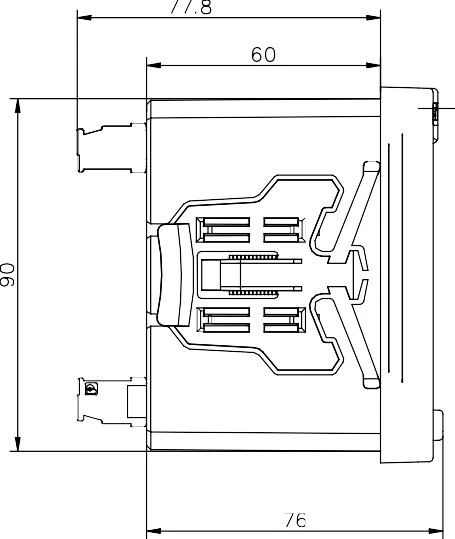

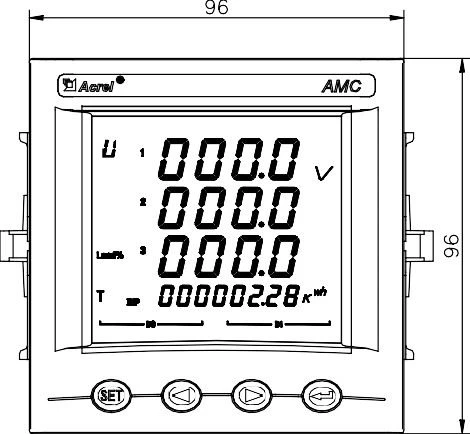

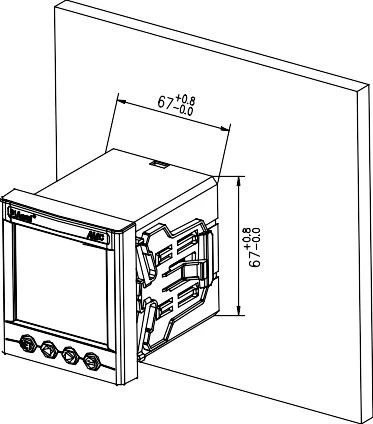

Qhov ntev

Cov ntsiab lus	faceplate loj		vaj tse loj			cutout loj
Cov ntsiab lus	dav	qhov siab	dav	qhov siab	qhov tob	dav	qhov siab
7 2 kvu	75	75	66.5	66.5	94.3	67	67
9 6 kvu	96	96	90	90	77.8	92	92
