Kev piav qhia

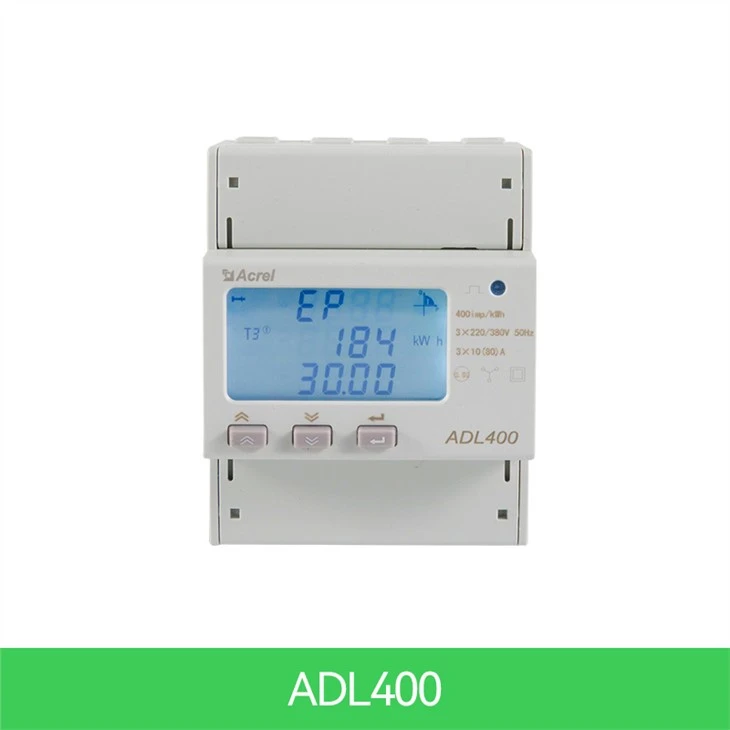

Peb Phase Zog Meter yog ib qho kev ntsuas uas feem ntau siv hauv cov chaw ua lag luam, cov chaw lag luam ntse, cov tsev rau pej xeem, cov chaw siv hluav taws xob, thiab lwm yam. Nws tuaj yeem tiv thaiv kev siv hluav taws xob zoo thiab nyab xeeb ntawm cov neeg siv, thiab kuj muaj ntau yam tshwj xeeb hauv kev ua haujlwm. Nws muaj lub zog ntsuas kev ua haujlwm, uas tuaj yeem siv rau pem hauv ntej thiab thim rov qab lub zog ua haujlwm, lub zog rov ua haujlwm, thiab lub zog khov, uas tuaj yeem pab cov neeg siv nkag siab txog kev siv hluav taws xob hauv lub sijhawm tiag tiag thiab faib hluav taws xob tsim nyog. Nws tuaj yeem sau cov programming thiab zeroing kev ua haujlwm ntawm lub ntsuas hluav taws xob thiab kev khiav haujlwm ntawm lub ntsuas hluav taws xob hauv lub sijhawm tiag tiag kom ntseeg tau tias kev ua haujlwm zoo ntawm lub ntsuas hluav taws xob. Kev ua haujlwm dav dav tuaj yeem pab cov neeg siv nyeem cov ntaub ntawv ntsuas tau zoo dua.

Nta

1. Lub txee ntawm Peb Phase Zog Meter muaj kev sib khi zoo thiab tiv thaiv kev cuam tshuam, yog li nws tuaj yeem ua kom muaj kev ntsuas raug.

2. Peb cov khoom yog ua los ntawm ABS cov khoom siv hluav taws xob, uas muaj kev ruaj ntseg zoo dua.

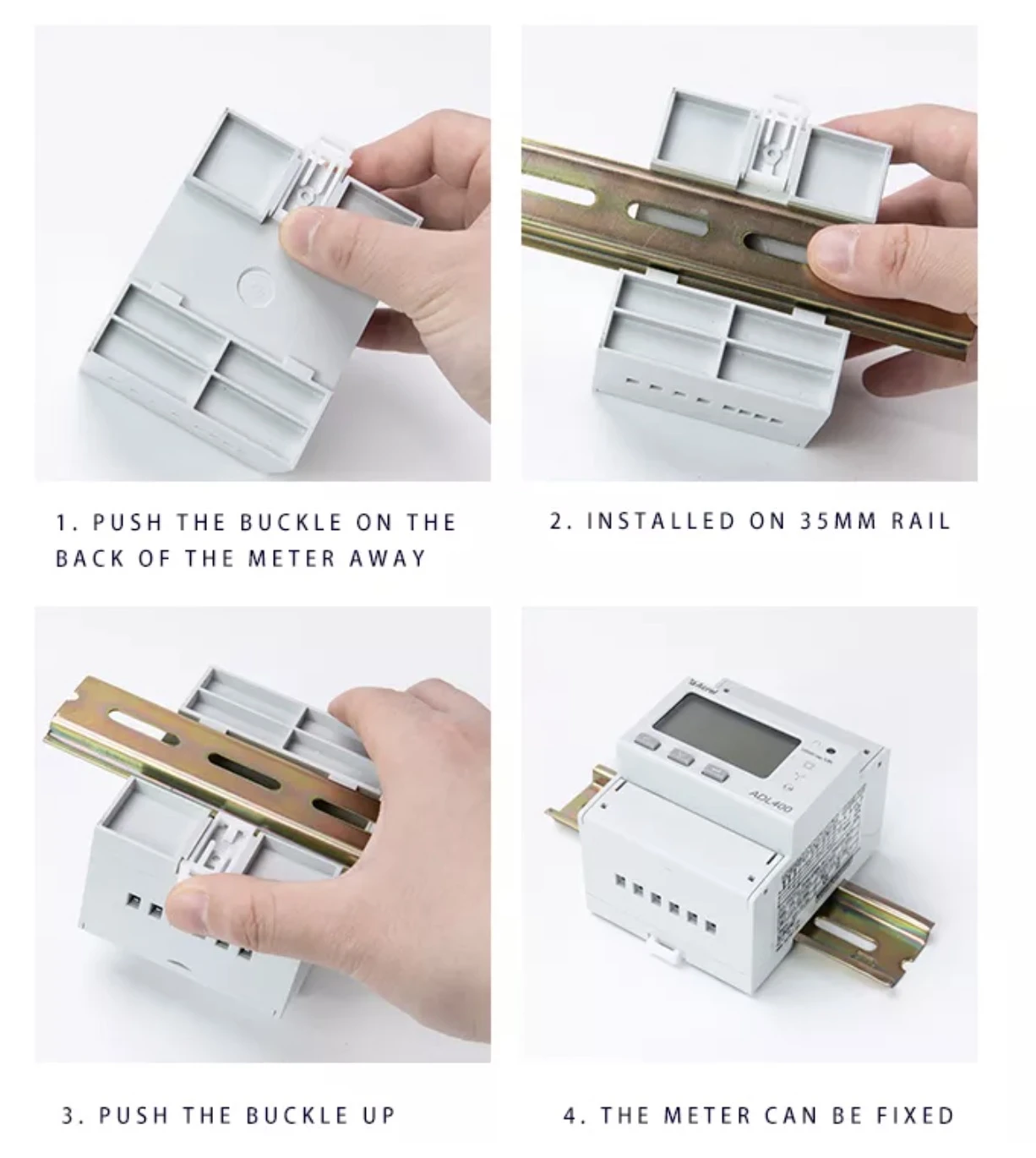

3. Lub phab ntsa-mounted tsim ua rau installation yooj yim dua thiab txuag lub sij hawm.

4. Lub vijtsam LCD tso cai rau koj pom cov ntaub ntawv kom meej meej thiab tiv thaiv kev ua yuam kev.

Qhov tshwm sim

Parameter

Qhov project			Parameter ntsuas
Specification			3 theem 3 xov hlau, 3 theem 4 xov hlau
Kev ntsuas	Qhov hluav taws xob	Kev siv hluav taws xob	3×100V, 3×380V,3×57.7/100V, 3×220/380V
		Kev noj haus	<>
		Impedance	>2MΩ
		Chav kawm raug	yuam kev ±0.2 feem pua
	Tam sim no	Tswv yim tam sim no	3×1(6)A, 3×10(80)A
		Kev noj haus	<>
		Chav kawm raug	yuam kev ±0.2 feem pua
	Hwj chim		Active, reactive, pom lub zog, yuam kev ±0.5℅
	Ntau zaus		{{0}}Hz, yuam kev ± 0.2 feem pua
	Zog		Lub zog muaj zog (Qhov raug: 0.5) lub zog reactive (Qhov tseeb 2)
	moos		Tsawg dua los yog sib npaug rau 0.5s/d
Tus lej teeb liab	Lub zog pulse tso zis		1 active photocoupler tso zis
mem tes	Dav ntawm mem tes		80 ± 20ms
	Pulse tas li		400imp/kWh, 10000imp/kWh (Sau nrog qhov pib tam sim no)

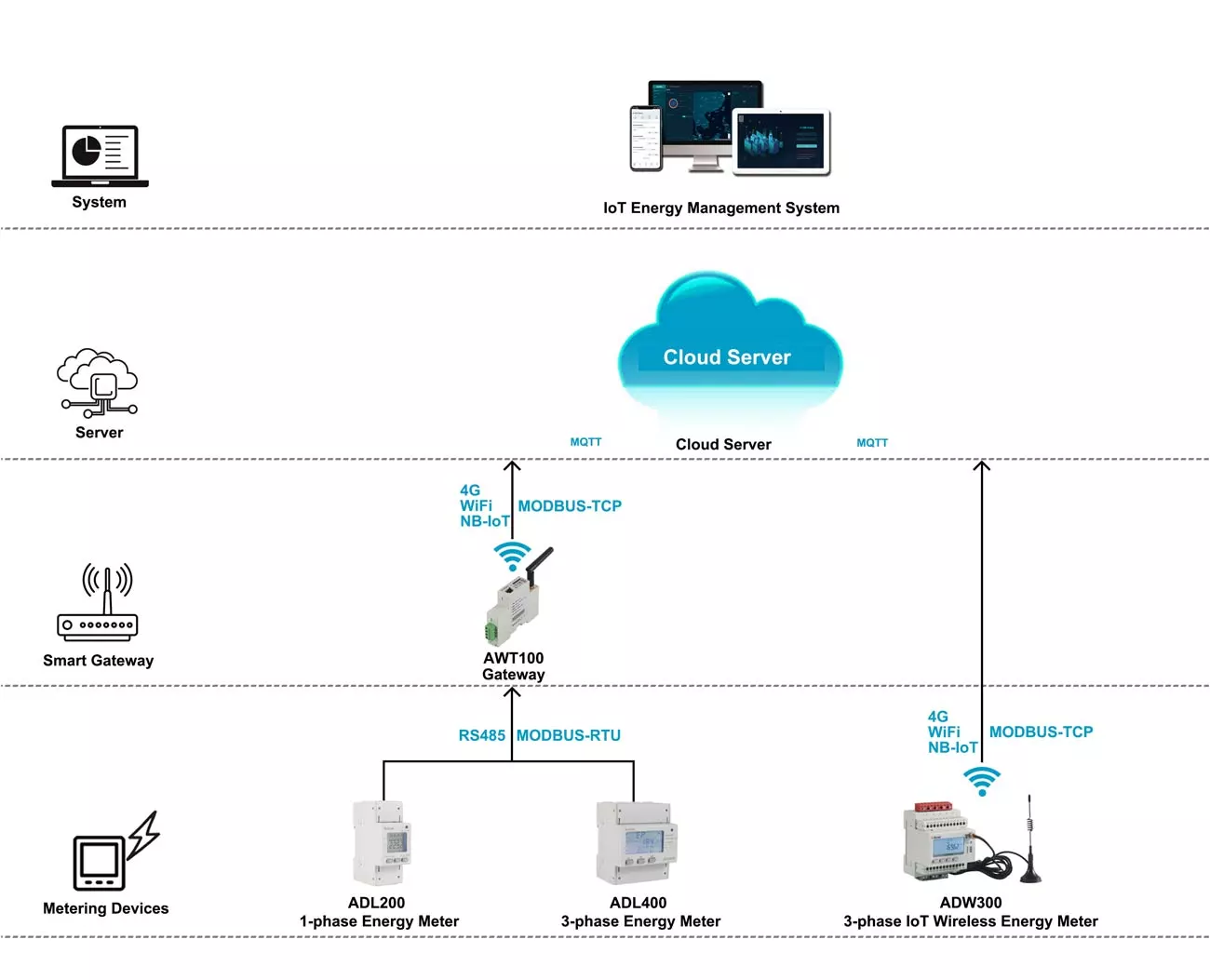

Kev sib txuas lus	Interface thiab kev sib txuas lus raws tu qauv		RS485: Modbus
	Ntau yam ntawm		Modbus RTU: 1 ~ 247;

Muaj nuj nqi

Khoom npe	Peb Theem Zog Meter
Muaj nuj nqi	Cov lus piav qhia ua haujlwm	Function muab
Kev ntsuas kWh	Active kWh (zoo thiab tsis zoo)	■
	Reactive kWh (zoo thiab tsis zoo)	■
	A. B, C faib theem zoo active zog	■
Kev ntsuas qhov ntsuas hluav taws xob	U, I	■
Kev ntsuas qhov ntsuas hluav taws xob	P, Q, S, PF, F	■
Kev ntsuas ntawm harmonics	2 ~ 31st Voltage thiab tam sim no harmonic	■
LCD zaub	12-ntsis seem LCD zaub, lub teeb tom qab	■

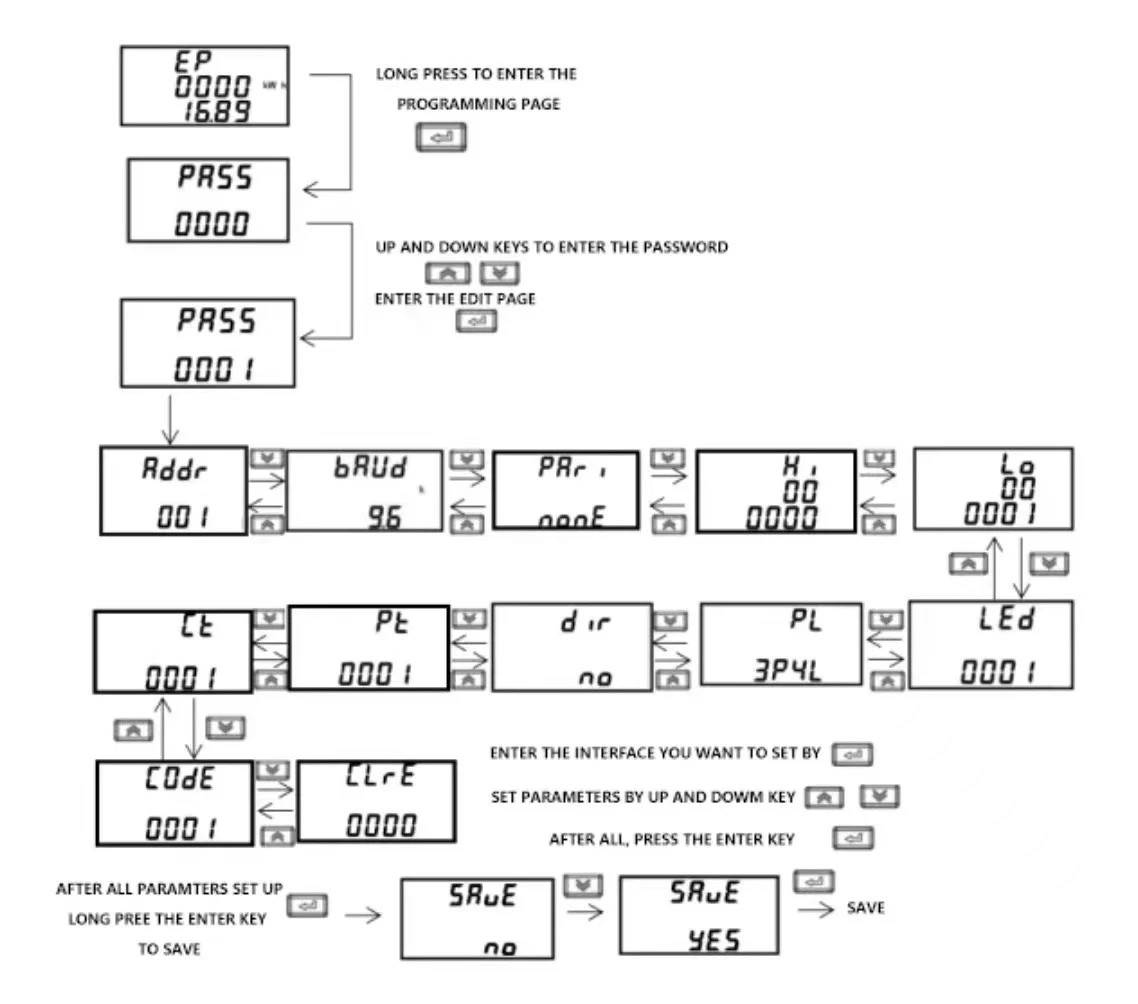

Qhov tseem ceeb programming	3 tus yuam sij rau kev sib txuas lus thiab teeb tsa cov kev txwv	■
Pulse tso zis	Sortie d'impulsion nquag	■
Multi-tariff thiab muaj nuj nqi	Kho 4 lub sij hawm aav, 2 lub sij hawm ncua cov npe, 14 lub sij hawm ib hnub twg, thiab 4 tus nqi tariff	□
	Max xav tau thiab lub sijhawm tshwm sim	□
	Cov ntaub ntawv khov rau 48 lub hlis dhau los, dhau 90 hnub	□
	Hnub tim, sijhawm	□
Kev sib txuas lus	Kev sib txuas lus interface: RS485, Kev sib txuas lus raws tu qauv: MODBUS-RTU	■
( ■ nyob rau hauv □ xaiv tau )
