Txheej txheem cej luam

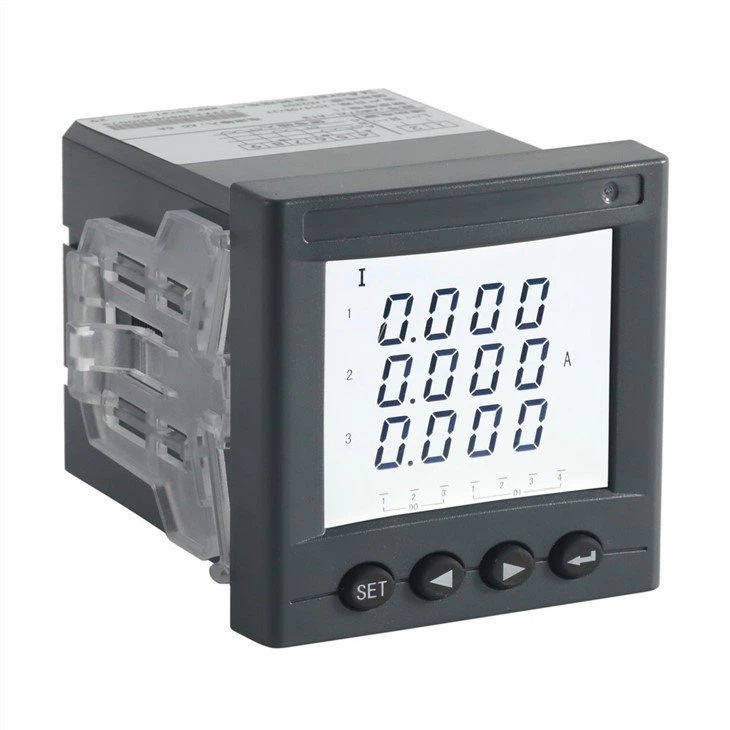

AMC series programmable ntse ntsuas, siv AC sampling thev naus laus zis, tuaj yeem ntsuas hluav taws xob ncaj qha lossis ncaj qha thiab tam sim no ntawm ib zaug -theem lossis peb-phase kab. Nws tuaj yeem siv rau cov zaub hauv zos, thiab txuas cov khoom siv tswj kev lag luam los tsim kev ntsuas ntsuas.

Cov kab ntsuas no muaj RS-485 chaw nres nkoj, txais yuav Modbus-RTU raws tu qauv. Analog tso zis, tswb tso zis, switching input/output tuaj yeem xaiv. Raws li kev thov sib txawv, los ntawm nias cov yuam sij, tsis muaj qhov sib piv, tswb, kev sib txuas lus thiab lwm yam tuaj yeem hloov kho.

Tus nqi Parameter

Technical Parameter		Tus nqi
Tswv yim	Rated Tus Nqi	Voltage: AC 100V, 220V lossis 380V; Tam sim no: AC 1A lossis 5A
	Tshaj dhau	Voltage: 1.2 npaug ntawm tus nqi ntsuas (nruam); 2 lub sij hawm ntsuas tus nqi / 1 thib ob Tam sim no: 1.2 npaug ntawm tus nqi ntsuas (nruam); 10 npaug ntawm tus nqi / 1 thib ob
	zaus	45Hz-65Hz
	Kev siv fais fab	<>
Qhov tseeb Class		0.5 chav kawm
Muaj nuj nqi	Zaub	LED los yog LCD
	Kev sib txuas lus	RS485 (Modbus{1}}RTU)
	Tswb	1 channel passive relay, hu rau lub peev xwm 3A / 30VDC, 3A / 250VAC, Siv rau siab, qis, tsis sib npaug tswb thiab lwm yam.
	Analog tso zis	DC 4-20mA (load<>
Hloov	Tswv yim	4 channel los yog 2 channel qhuav hu Input, ua tau - nyob rau hauv lub hwj chim mov
Hloov	Tso zis	2 channel hloov cov zis, Tsis muaj kev sib cuag, muaj peev xwm: 3A / 30VDC, 3A / 250VAC
Kev Pabcuam	Voltage Ntau	85265V AC / DC
	Kev siv fais fab	<>
	Rwb thaiv tsev Resistance	Greater than or equal to 100MΩ
Ib puag ncig	Kub	Kev Ua Haujlwm: -10 degree - ntxiv rau 55 degree Cia: -25 degree ntxiv rau 70 degree
	Cov av noo	Tsawg dua los yog sib npaug li 95 feem pua RH, tsis muaj condensation, tsis muaj corrosive gas
	Qhov siab	Tsawg dua los yog sib npaug li 2500m
