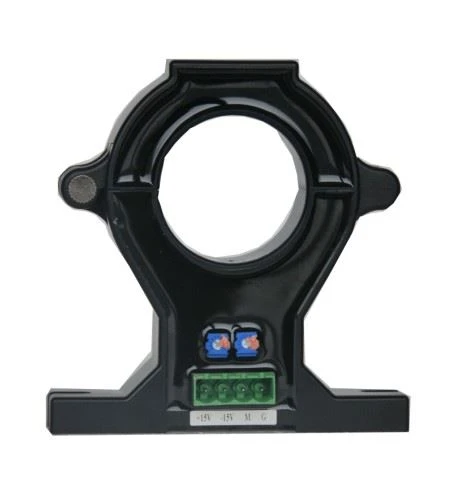

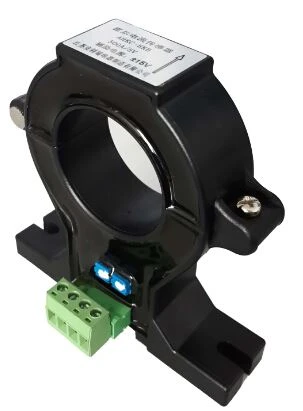

Hall tam sim no sensors yog siv los cais thiab hloov AC, DC, mem tes thiab lwm yam teeb meem nyuaj. Tom qab lub teeb liab tswj cov teeb liab tam sim no tau hloov pauv raws li Hall Effect Theory, lawv tuaj yeem tau ncaj qha los ntawm AD, DSP, PLC, cov twj paj nruag theem nrab thiab lwm yam khoom siv.

Hall tam sim no sensors yog dav siv rau kev nrhiav tau thiab kev tawm tswv yim hauv kev saib xyuas tam sim no, daim ntawv thov roj teeb, inverter, hnub ci kev tswj fais fab, lub txee ncaj qha tam sim no, DC tsav tsav, electroplating, vuam, zaus converter, UPS servo tswj systems. Lawv muaj cov lus teb ceev ceev, ntau yam kev ntsuas, siab precision, muaj zog tshaj lub peev xwm, zoo linearity thiab zoo heev los tiv thaiv - cuam tshuam kev ua haujlwm.

Qhov tshwm sim

Tsis muaj

Technical parameters			Cov ntaub ntawv
			Split/kaw qhib - voj	Hall (RMS tseeb)
Tso zis	Nominal nqi		Voltage: ±5V/±4V	Tam sim no: 4 - 20mA
	Zero offset voltage (tam sim no)		Voltage: ±20mV	Current:±0.05mA
	Offset voltage (tam sim no) drift		Voltage: {{0}}±1.0mV/ degree	Current:±0.04mA/ degree
	Linearity		≤0.2%FS
Lub zog hluav taws xob			DC±15V	DC 24 V
Bandwidth			0 - 20kHz
Teb sijhawm			≤5mus	≤1ms
Dielectric zog			Tso cai 2500VAC nruab nrab ntawm kev tawm tswv yim / tawm thiab lub zog ntawm lub zog zaus
Chav kawm raug			1.0
Ambient tej yam kev mob		Kub	Ua haujlwm kub: - 25 degree - + 70 degree; Cia kub: - 40 degree - + 85 degree
		Cov av noo	≤95%RH, tsis muaj lwg, tsis muaj roj
		Qhov siab	≤3500m

Dimension

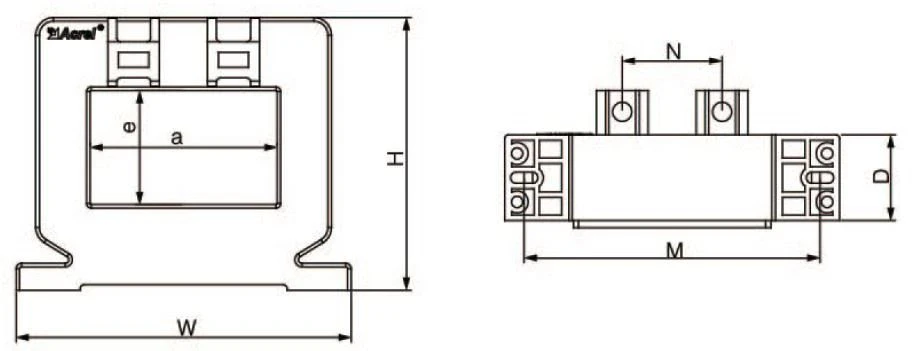

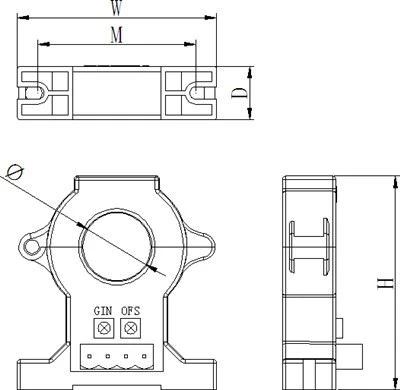

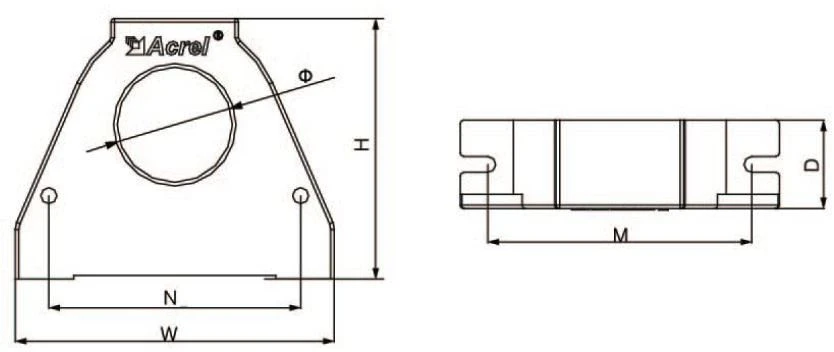

Fig.1	Fig.2

Loj Specification	Daim ntawv loj			Los ntawm qhov loj me			Mounting loj		Daim duab
Loj Specification	W	H	D	a	e	Φ	M	N	Daim duab
AHKC - EKA	60	64	16	/	/	20	47	/	Fig.1

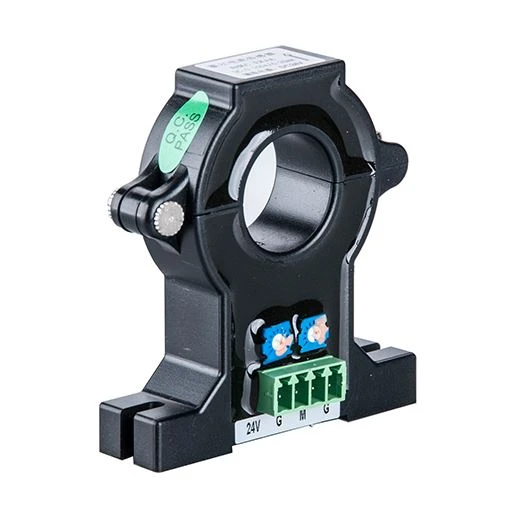

AHKC - EKAA UA	60	64	16	/	/	20	47	/	Fig.1
AHKC - EKDA	60	64	16	/	/	20	47	/	Fig.1
AHKC - EKB	100	102	24	/	/	40	80	/	Fig.1
AHKC - UA	100	102	24	/	/	40	80	/	Fig.1
TIAB SA - EKBDA	100	102	24	/	/	40	80	/	Fig.1
AHKC - K	127	63	25	64	16	/	/	30	Fig.2
AHKC - UA	127	63	25	64	16	/	/	30	Fig.2
AHKC - KDA	127	63	25	64	16	/	/	30	Fig.2
AHKC - H	149	79	25	82	32	/	/	46	Fig.2
AHKC - KA	176	95.5	29	104	36	/	/	60	Fig.2
AHKC - HB	204	111.5	29	132	52	/	/	48 × 2	Fig.2

Qhov ntsuas tam sim no

Specification	Rated tam sim no	Fais fab mov	Rated tso zis	Kev ntsuas aperture (mm)	Precision degree
AHKC - EKA	0～(20 - 500)A	±15V	5V	φ 20	1
AHKC - EKAA UA	DC 0～(50 - 500)A	12V/24V	4～20mA	φ 20	1
AHKC - EKDA	AC 0～(50 - 500)A	12V/24V	4～20mA	φ 20	1
AHKC - EKB	0～(200 - 1000)A	±15V	5V	φ 40	1
AHKC - UA	DC 0～(200 - 1000)A	12V/24V	4～20mA	φ 40	1

AHKC - EKBDA	AC 0～(200～ 1000)A	12V/24V	4～20mA	φ 40	1
AHKC - K	0～(400 - 2000)A	±15V	5V	64×16	1
AHKC - UA	DC 0～(400 - 2000)A	12V/24V	4～20mA	64×16	1
AHKC - KDA	AC 0～(400 - 2000)A	12V/24V	4～20mA	64×16	1
AHKC - H	0～(500 - 3000)A	±15V	5V	82×32	1
AHKC - KA	0～(500 - 5000)A	±15V	5V	104×36	1
AHKC - HB	0～(2000 - 20000)A	±15V	5V	132×52	1

Lus Cim: Kev ntsuas tam sim no tsis muaj npe qhia tias AC thiab DC cov tswv yim tam sim no tuaj yeem ntsuas tau, thov qhia thaum xaj.

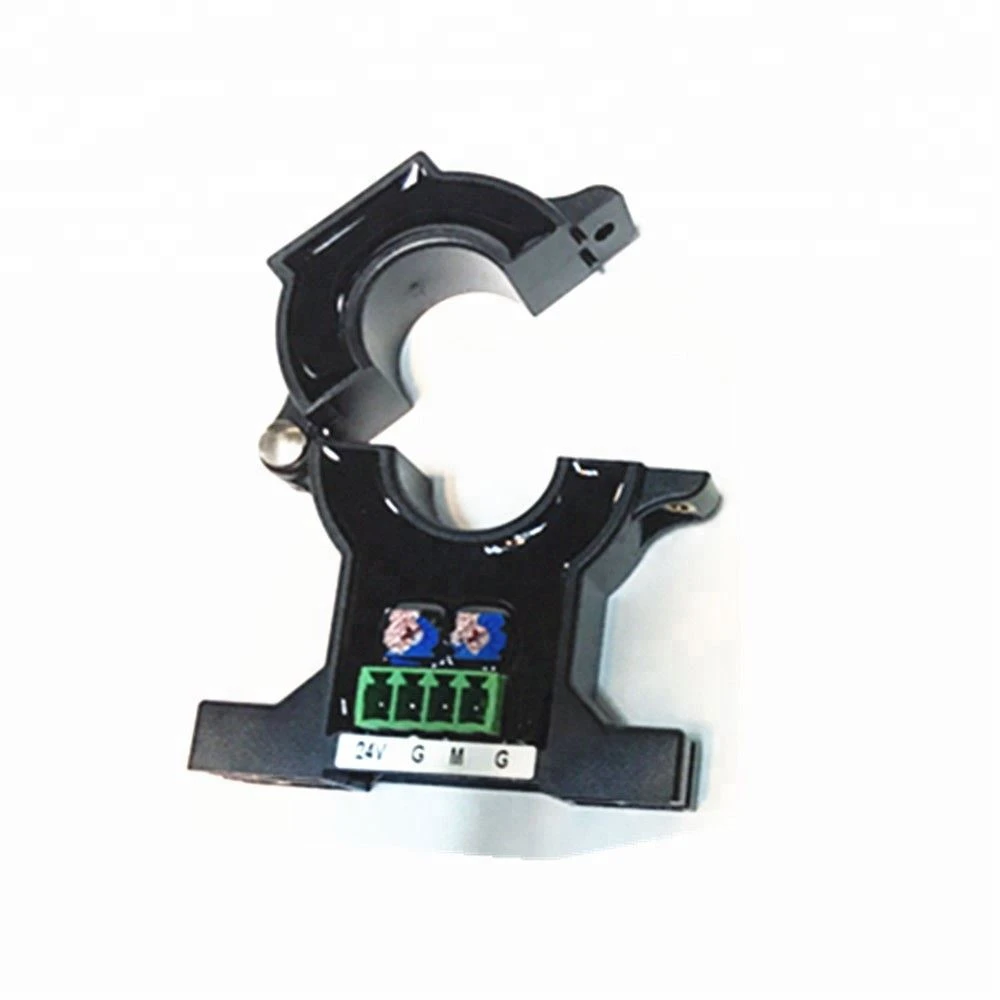

Kaw Hall Tam sim no Sensor

Fig.1

Fig.2

Loj Specification	Daim ntawv loj (mm)			Los ntawm qhov loj (mm)			Mounting qhov loj (mm)		Daim duab
Loj Specification	W	H	D	a	e	Φ	M	N	Daim duab
AHKC - E	53	72	16	/	/	21	47	/	Fig.1
AHKC - LT	90	73.5	25	/	/	32.5	74.5	71	Fig.1
AHKC - BS	43	32.5	19	20.5	10.5	/	/	/	Fig.2
AHKC - BSA UA	43	32.5	19	20.5	10.5	/	/	/	Fig.2
AHKC - F	74	57	22	43	13	/	/	22	Fig.2
AHKC - FA	94	60.5	26.5	52	15	/	83	28	Fig.2
AHKC - TSI	94	76.5	24	52.5	32	/	83	28	Fig.2

Qhov ntsuas tam sim no

Specification	Rated tam sim no	Fais fab mov	Rated tso zis	Kev ntsuas aperture (mm)	Qhov tseeb
AHKC - E	0～(20 - 500)A	±15V	5V	φ 20	1
AHKC - LT	0～(100 - 800)A	±15V	5V	φ 32.5	1
AHKC - BS	0～(20 - 500)A	±15V	5V	20.5*10.5	1
AHKC - BSA UA	DC 0～(50 - 500)A	12V/15V/24 V	4～20mA	20.5*10.5	1
AHKC - F	0～(200 - 1000)A	±15V	5V	43*13	1
AHKC - FA	0～(200 - 1500)A	±15V	5V	52*15	1
AHKC - TSI	0～(400 - 2000)A	±15V	5V	52*32	1
