Kev piav qhia
Nrog rau kev siv dav dav ntawm cov cuab yeej siv kho mob hauv tsev kho mob hauv tsev kho mob, cov dej xau tam sim no ua rau muaj kev hem thawj rau cov neeg mob, tshwj xeeb tshaj yog nyob rau hauv cov chaw uas muaj txoj sia nyob. Thaum lub sij hawm phais los yog nyob rau hauv cov tshuaj loog, ntau yam electrodes thiab sensors yog ncaj qha mus rau hauv tib neeg lub cev, thiab ib tug me me to tam sim no yuav ua rau muaj xwm txheej. Medical Isolated Power Monitor yog ib yam khoom siv hauv kev kho mob IT systems los saib xyuas cov txheej txheem rwb thaiv tsev ntawm IT systems los ntawm av mus rau hauv av. Thaum muaj qhov cuam tshuam ntawm kev rwb thaiv tsev, lub tswb ceeb toom tuaj yeem raug muab tso rau hauv lub sijhawm kom ceeb toom cov neeg ua haujlwm kom daws nws raws li qhov xwm txheej tiag tiag.

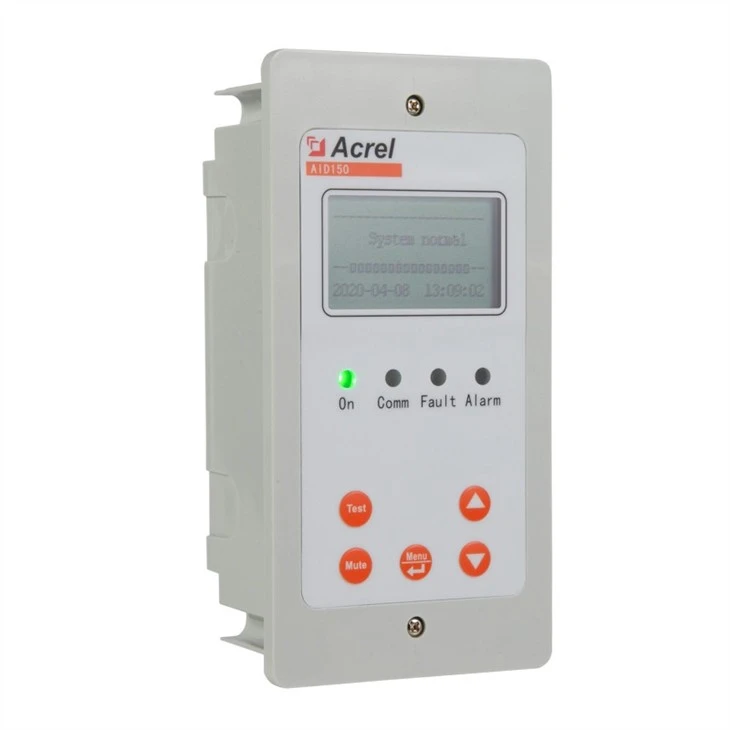

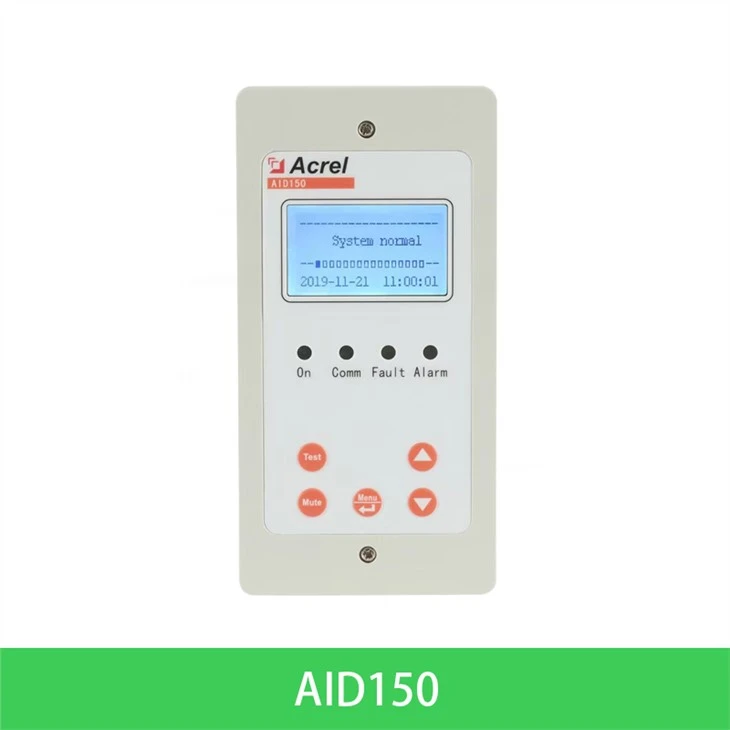

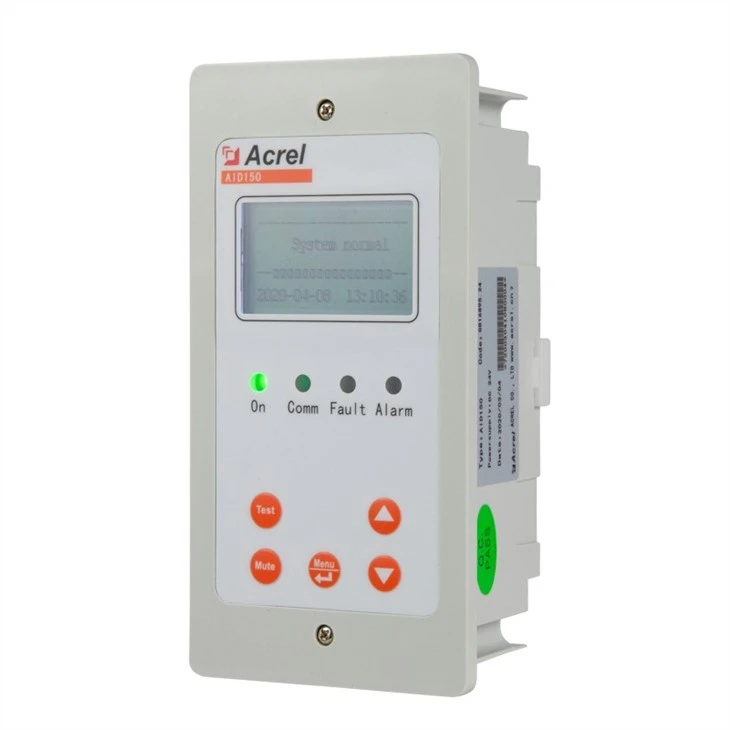

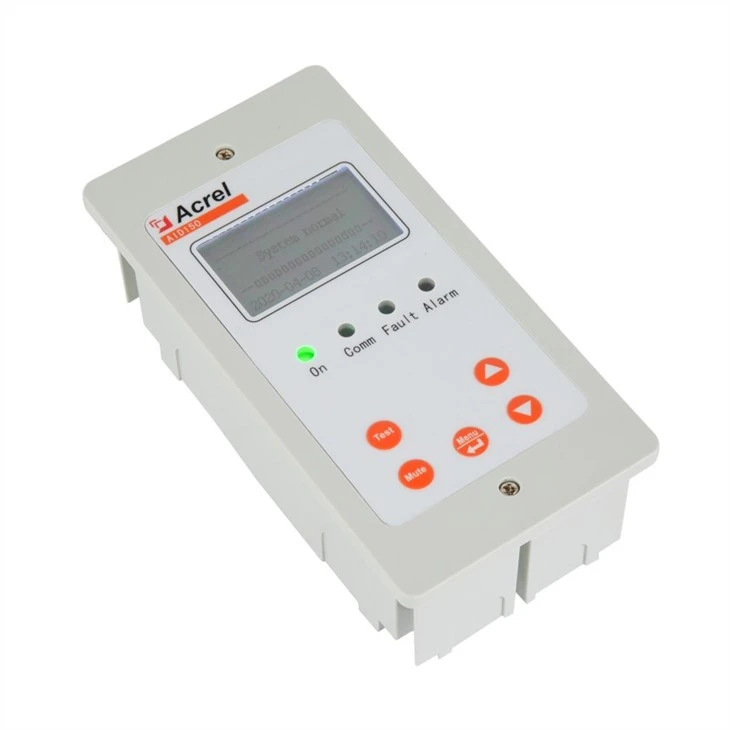

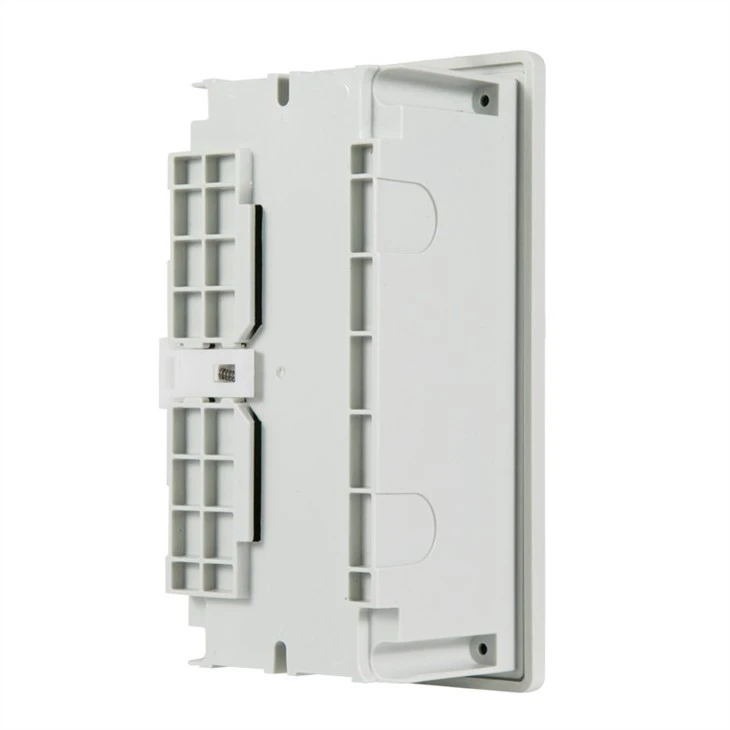

AID150 centralized tswb thiab tso saib ntaus ntawv txais cov LCD kua siv lead ua zaub thiab ua tiav cov ntaub ntawv pauv nrog AIM-M300 series kev kho mob ntse rwb thaiv tsev saib xyuas cov cuab yeej los ntawm RS485 kev sib txuas lus interface, uas tuaj yeem tshawb xyuas cov ntaub ntawv ntau lub sijhawm ntawm AIM-M300 series kev kho mob ntse rwb thaiv tsev saib xyuas ntaus ntawv.
1
Multi-Circuits Monitoring
Max 16 IT Systems
2
Chaw Taws Teeb Cov Nqi
Resistance / load tam sim no / transformer tswb
3
Centralized tswb
Suab nrov thiab pom lub tswb ceeb toom
4
Cov Txheej Txheem Teev Tseg
Khaws qhov siab kawg ntawm 20 cov ntaub ntawv tshiab.
Parameter
| Khoom | Medical Isolated Power Monitor |
Lub zog txhawb nqa | DC 24 V |
Kev noj haus | Tsawg dua los yog sib npaug rau 0.6W |
Rwb thaiv tsev tswb ntau yam | 50...999kΩ |
Lub tswb nrov tam sim no | 14A,18A,22A,28A,35A,45A |
Lub tswb ntsuas kub | 0... ntxiv rau 200 degree |
Tswb hom | Suab nrov thiab pom lub tswb |
Tswb hom | Rwb thaiv tsev txhaum, overload, overtemperature, ntaus ntawv tsis ua hauj lwm |
Kev sib txuas lus | RS485, MODBUS-RTU |
Zaub hom | LCD zaub, 128 * 64 dot array |
 | ● Kev saib xyuas cov ntaub ntawv ntawm lub sijhawm thiab tswb los ntawm lub tsheb npav ● Kev teeb tsa chaw taws teeb ● Acoustic tswb nrog kev ua haujlwm |

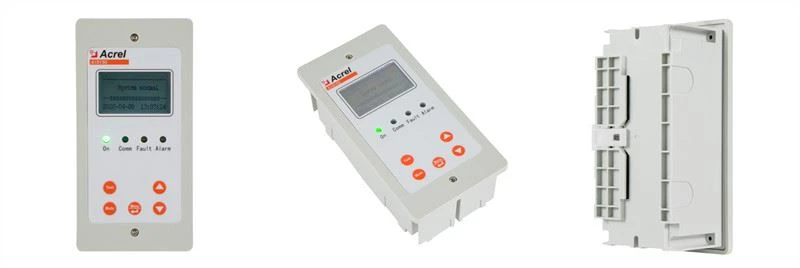

| Qhov Loj (L * W * H) 63 * 87 * 172 hli Kev teeb tsa Embedded phab ntsa Kev sib txuas lus RS485 ua |  |

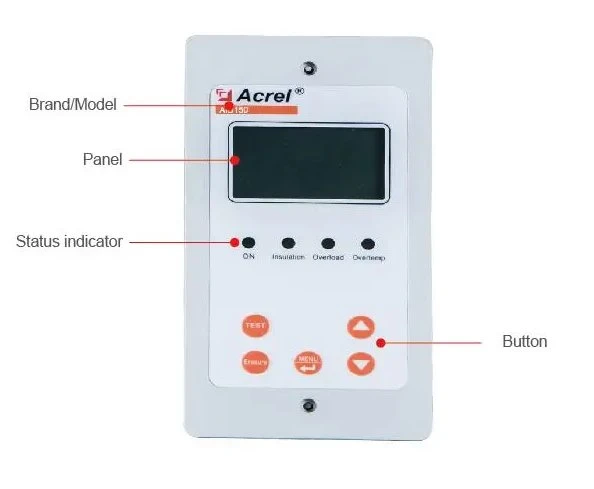

Muaj nuj nqi
Nta
1. Medical Isolated Power Monitor muaj cov khoom siv nplua nuj thiab lub tswb ceeb toom ua haujlwm, tus phooj ywg interface, thiab kev ua haujlwm yooj yim.
2. Nws tuaj yeem ntsuas thiab tso saib qhov hloov pauv tam sim no hauv lub sijhawm.
3. Lub tswb nrov thiab lub teeb tuaj yeem ua rau tib neeg pom sai dua thiab tiv thaiv kev sib tsoo hauv lub sijhawm.
4. Lub LCD tuaj yeem ua kom pom tseeb ntau yam ntaub ntawv.

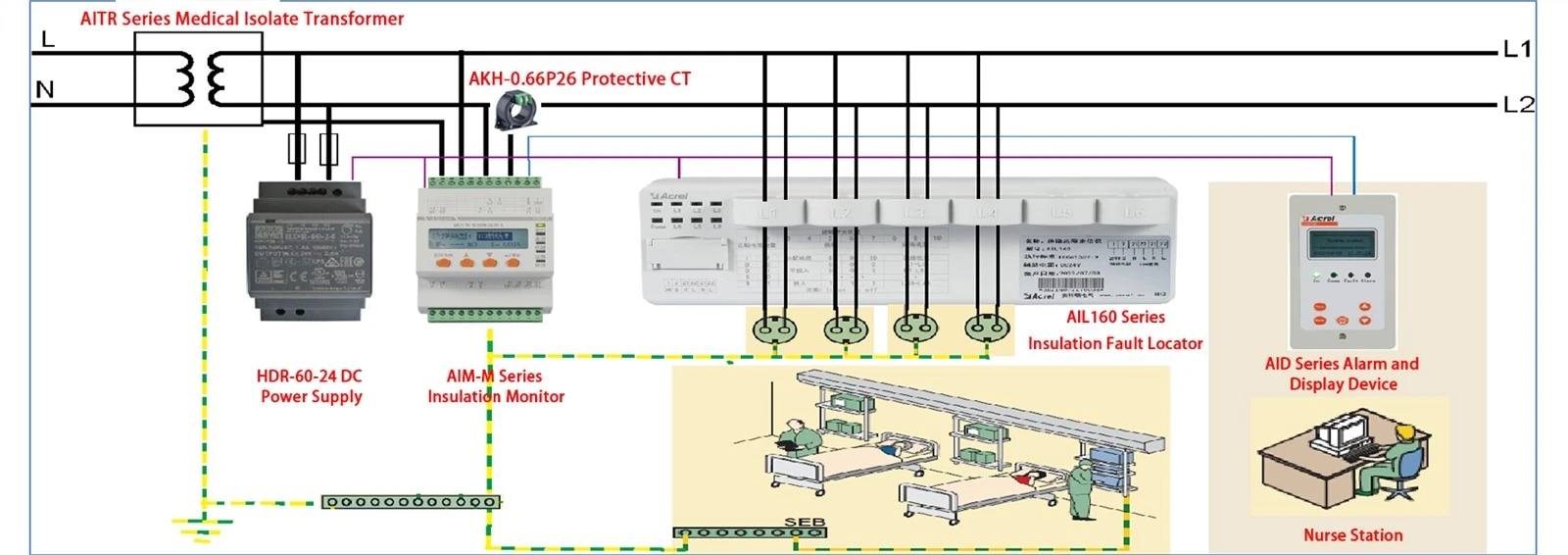

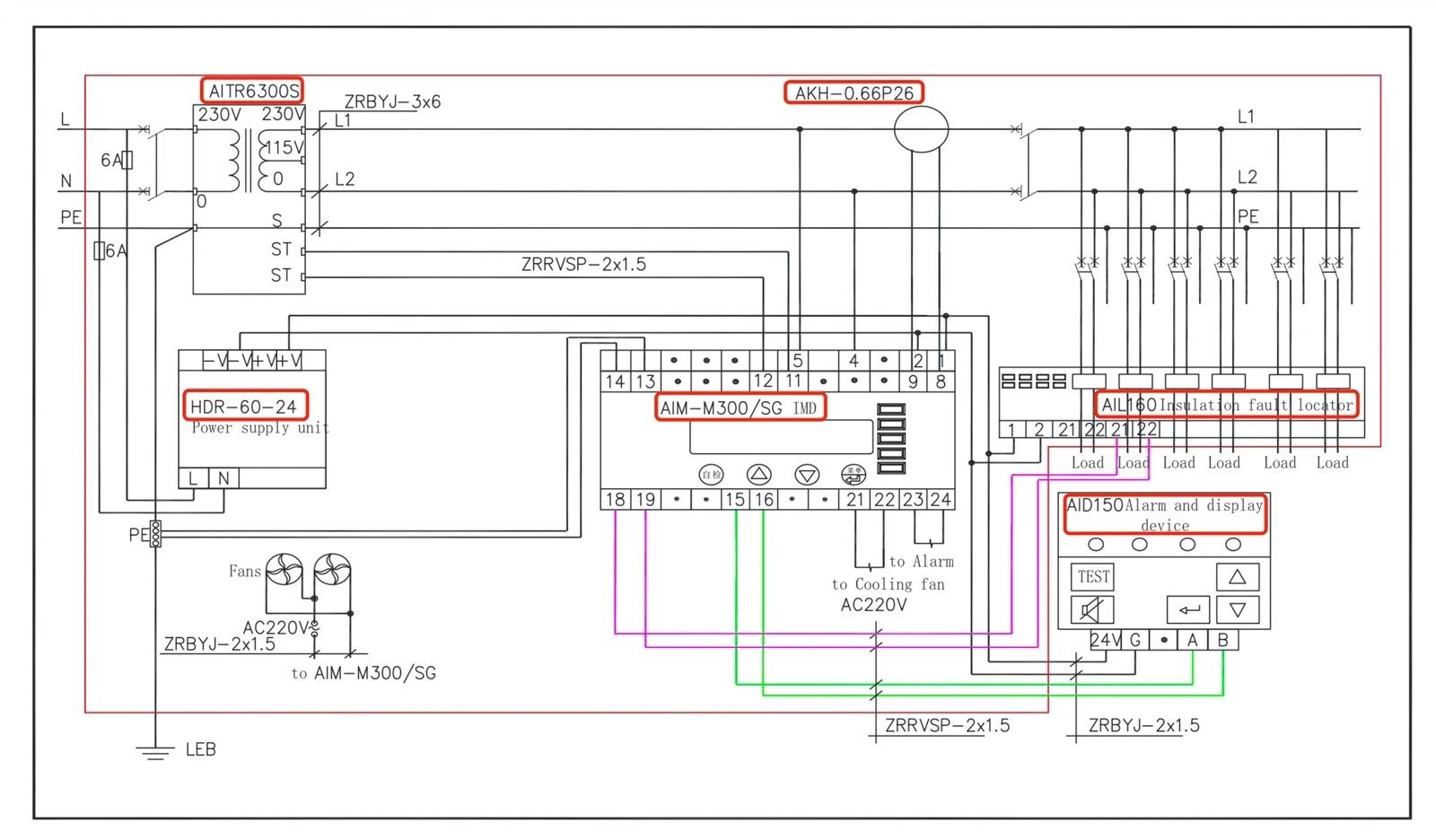

Acrel IT System 6 Pieces Solution rau ICU & Chav Ua Haujlwm
Siv:
1) AITR series kho mob rho tawm transformer
2) AIM-M300 (los yog AIM-M300 / SG) kev kho mob ntse ntsuas ntsuas ntsuas;
3) AKH-0.66P26 tam sim no transformer;
4) AIL150-4/AIL150-8 /AIL160-6 rwb thaiv tsev fault locator;
5) HDR-60-24 zog module;
6) AID150 centralized tswb thiab tso saib ntaus ntawv
