Kev piav qhia

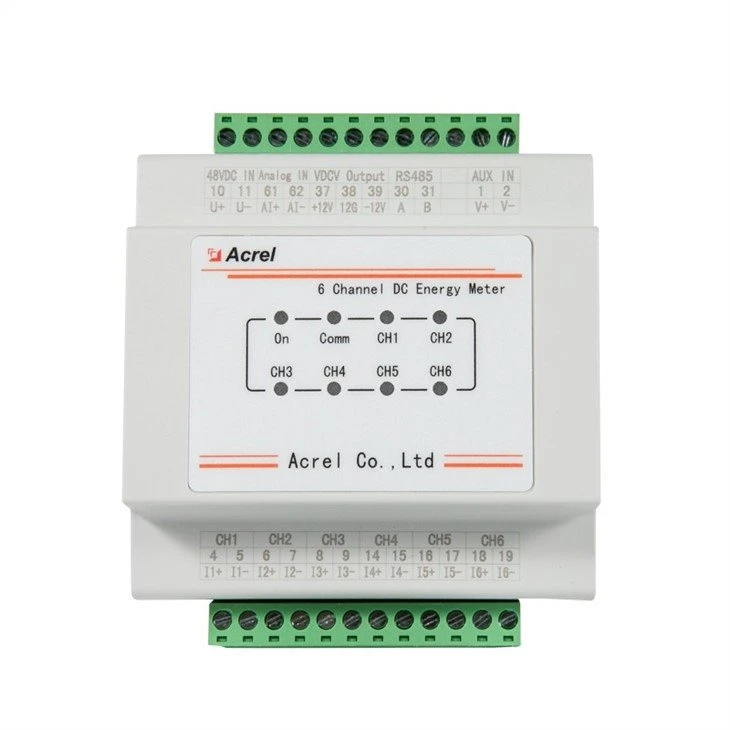

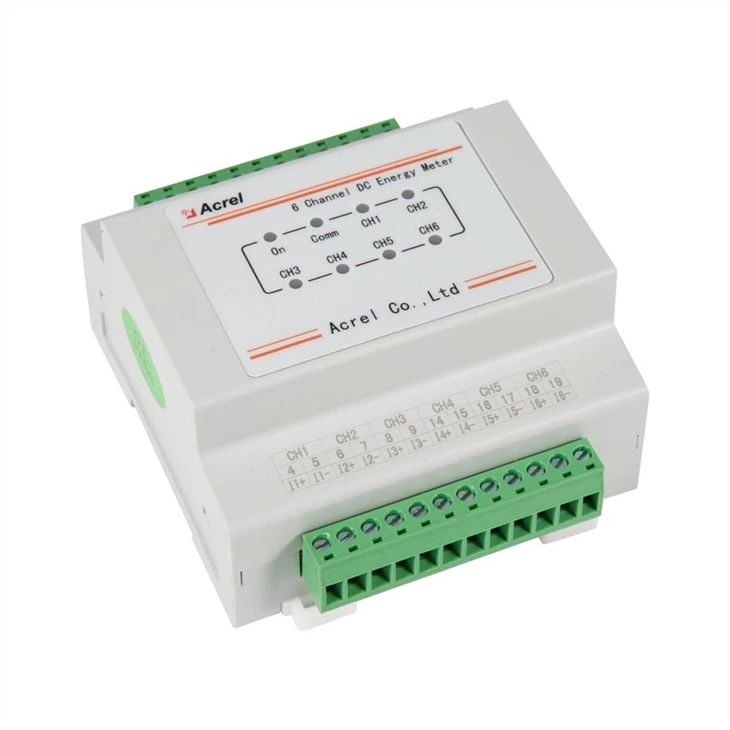

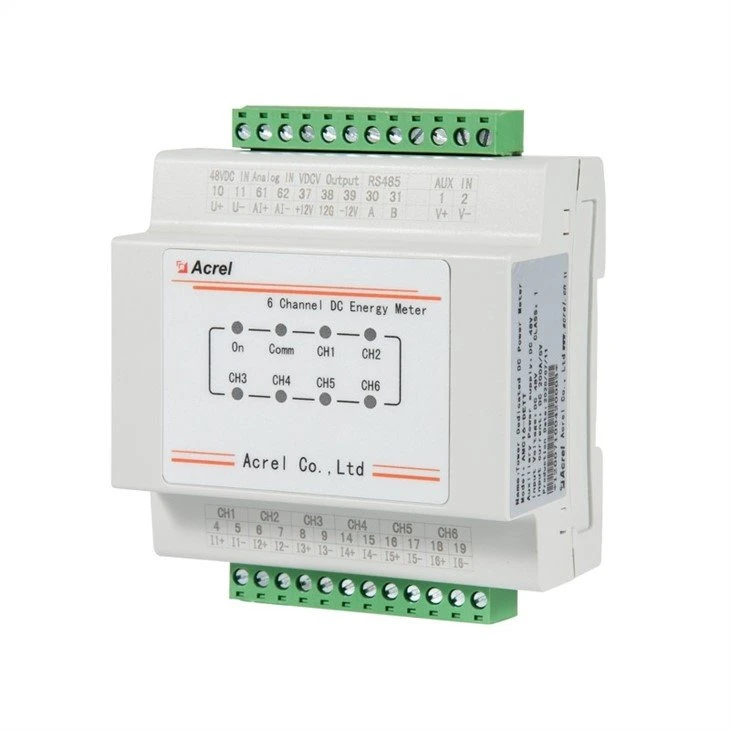

AMC 16-DETT DC Zog ntsuas
Multi-Channel DC Zog Meter yog tsim los rau cov chaw nres tsheb hauv paus nrog cov kev xav tau sib koom, qhov chaw hloov hluav taws xob tsis muaj cov neeg siv khoom ntsuas. Lub 'meter' tuaj yeem ntsuas hluav taws xob hluav taws xob thiab muab kev ua haujlwm tam sim no rau qhov sib txuam Hall sensor. Tsis tas li ntawd, xoom drift calibration tuaj yeem ua tiav los ntawm tus tswv software. Tsis tas li ntawd, nws muaj lub luag haujlwm ntawm kev ntsuas kev ntsuas, ntsuas cov chaw taws teeb, kev hloov pauv chaw taws teeb, ntsuas lub sijhawm ntawm lub sijhawm, lub tswb ntsuas hluav taws xob tsis zoo, cov ntaub ntawv khaws cia thiab ua haujlwm, thiab cov ntaub ntawv sib cuam tshuam; lub 'meter' tuaj yeem ntsuas kev siv hluav taws xob ntawm peb tus neeg ua haujlwm thiab muab cov ntaub ntawv ntxaws ntxaws rau lub hauv paus chaw nres tsheb.
LCD zaub
Cov khoom siv tau zoo thiab raug ua tiav thiab kuaj cov khoom siv.
high-performance metering nti
nrog kev lag luam micro-level ua raws li cov tub ntxhais.
Muaj kev paub dhau los hauv kev txhawb nqa cov neeg siv khoom
Cov neeg siv khoom thoob ntiaj teb kev txhawb nqa
Peb cov kev daws teeb meem
|
|
|
Parameter

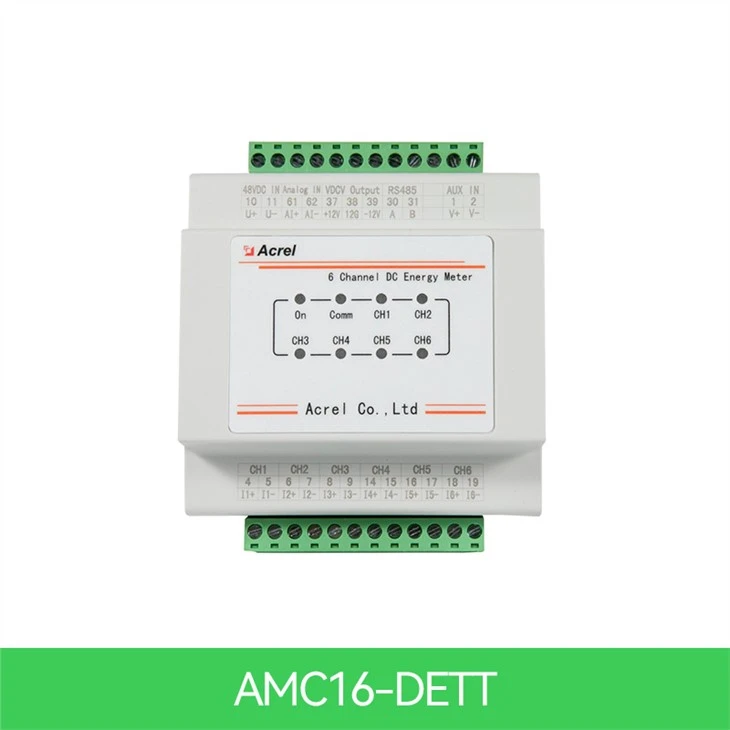

| Qauv nab npawb | AMC16-DETT | |
| Multichannel DC zog ntsuas | ||
| Tswv yim |
DC ntsuas voltage |
1 channel: -48VDC |
|
DC tam sim no |
6 channel nrog sensors: tag nrho 200A / 5V, 1,2,3,4 channel tseg 50A / 5V, 5th channel tseg 100A / 5V. |
|
|
Kev ua lag luam saib xyuas lub zog |
1 channel: 0-5 VDC |
|
|
Muaj peev xwm tshaj |
Voltage: 1.2 zaug txuas ntxiv, 2 zaug txuas ntxiv 1 s. Tam sim no: 1.2 zaug txuas ntxiv, 10 zaug txuas ntxiv 1 s. |
|
|
Qhov tseeb (superposition Hall sensors) |
1% Tsawg dua lossis sib npaug rau Kuv Tsawg dua lossis sib npaug rau 10% Hauv, yuam kev ± 2.5%; ＞ 10% Hauv; yuam kev ± 2% | |
|
Kev ntsuas kev daws teeb meem |
Voltage: {{0}} . | |
|
Muaj nuj nqi |
Basic muaj nuj nqi |
1. Saib xyuas cov khoom siv lub sijhawm; 2. Tag nrho qhov hluav taws xob, tag nrho tam sim no, lub zog, lub zog, txhua qhov hluav taws xob channel, tam sim no, lub zog, lub zog; 3. LED zaub; 4. RS485 kev sib txuas lus; |
| Metering muaj nuj nqi |
1. Pib tam sim no: nyob rau hauv qhov ntsuas voltage, thaum load tam sim no tus nqi ntawm lub 'meter' tsis tshaj 1% ntawm qhov max. tam sim no, lub meter pib. 2. Shunt khiav tam sim no: Thaum tsis muaj tam sim no nyob rau hauv lub tam sim no Circuit Court ntawm lub 'meter', thiab 85% ~ 125% ntawm cov rated voltage yog siv nyob rau hauv voltage Circuit Court, lub laij lej yuav tsum tsis txhob muaj ntau tshaj ib tug digital hloov. |
|
| Tswb muaj nuj nqi | DC under-voltage, DC dhau-voltage, ib lub hwj chim down, module voltage poob, metering ceg yuam kev, nyob rau hauv qhov kev pab cuam yuam kev, moos yuam kev, nco tsis ua hauj lwm, AC input fais fab tuag. |
|

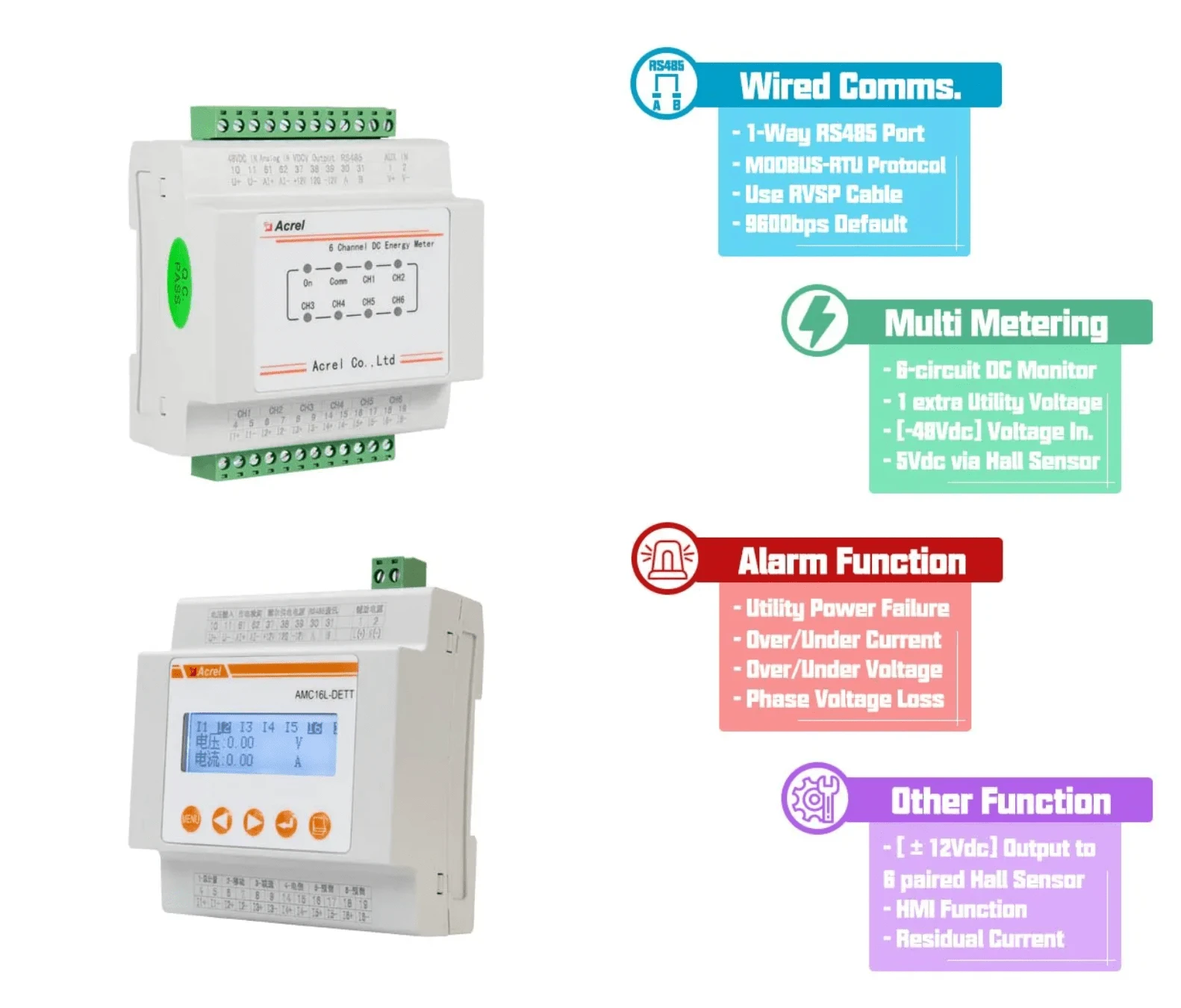

Qhov tshwm sim
Multi-circuit Metering
● Txog li 6-Circuit DC saib xyuas
● Rated Voltage [DC]: -48Vdc
● Rated Tam sim no [DC]: 5Vdc [ntawm chav sensor]
● 1 Ntxiv Kev Siv Hluav Taws Xob Saib Xyuas [ntawm -/5Vdc transducer]
● Daim Ntawv Thov: ± 12Vdc Fais fab tso zis rau 6 khub Hall Sensors
● Tso zis Specs: +12V/100mA, -12V/50mA
Paired Hall Sensors
Vim li cas thiaj xaiv peb?
Acrel Co., Ltd. [Stock Code: 300286. SZ] yog ib lub tuam txhab ua lag luam siab tsom rau kev tshawb fawb, tsim khoom, muag, thiab kev pabcuam. Nws tsuas yog muab cov kev daws teeb meem rau kev tswj xyuas hluav taws xob thiab hluav taws xob kev nyab xeeb rau cov neeg siv. Acrel tau nruab nrog cov kab ntau lawm los ntawm huab platform software mus rau sensors. Txog rau tam sim no, nws muaj ntau dua 8000 cov txheej txheem kev daws teeb meem siv hauv Suav teb los pab cov neeg siv paub txog kev tswj xyuas lub zog, muab cov ntaub ntawv siv hluav taws xob, thiab txhim kho hluav taws xob thiab kev nyab xeeb.
Acrel Energy Efficiency Management System suav nrog ntau lub tshuab huab cua xws li kev ua haujlwm hauv substation thiab kev saib xyuas, kev tswj hwm kev nyab xeeb, kev tiv thaiv ib puag ncig lub zog saib xyuas thiab kev them nyiaj ua ntej, thiab ntau yam kev saib xyuas thiab kev tswj xyuas xws li kev hloov pauv thiab kev xa tawm, lub zog zoo, kev siv hluav taws xob hauv tsev, muaj zog, hluav taws xob hluav taws xob, hluav taws xob hluav taws xob, lub qhov rooj hluav taws, teeb pom kev kub ntxhov, thiab kev khiav tawm cov lus qhia, them cov nqi hluav taws xob, cov ntaub ntawv lub zog hluav taws xob thiab ib puag ncig hloov pauv, lub teeb pom kev ntse thiab IT faib hluav taws xob rwb thaiv tsev.
Kev xaiv dawb.
Kev Taw Qhia.
Dawb Kho Thiab Hloov.
Ob Lub Xyoo Zoo Warranty.
American Tower
Kho vajtse: AMC16-DETT DC Zog Meter
AHKC-EKA Hall Effect Sensor
Camusat
Kho vajtse: AMC16-DETT DC Zog Meter
AHKC-EKA Hall Effect Sensor
ADW300W-C Peb-theem Zog Meter
TASC
Kho vajtse: DTSD1352-4S AC multi-circuit zog ntsuas,
AMC16L-DETT DC multi-circuit zog ntsuas
AKH-0.66/K split core tam sim no transformer
Tuam Tshoj Ntauwd
Kho vajtse: AMC16-DETT DC Zog Meter
AHKC-EKA Hall Effect Sensor
ADW210-4S multi Circuit Peb Theem Zog Meter
