Peb Theem Prepaid Zog Meter

● Measurement: 3-phase kWh (Class 0.5s), kVarh, Active Power, Reactive Power, Current, Voltage and etc
● Rated Voltage: 3x380456V AC 4565Hz (Voltage Signal Input also served as Power Supply of Meter)
● Rated Current: 3x10(80)A AC (Direct Connection); 3x1(6)A AC (Connected via CTs)
● Communication: RS485 (MODBUS-RTU); Infrared
● Auto Control: Built-in Holding Relay for Switch On-off Control
● Multi-rateMulti-tariff: 4 Tariff Rates (Spike, Peak, Valley and Flat kWh Unit Price)

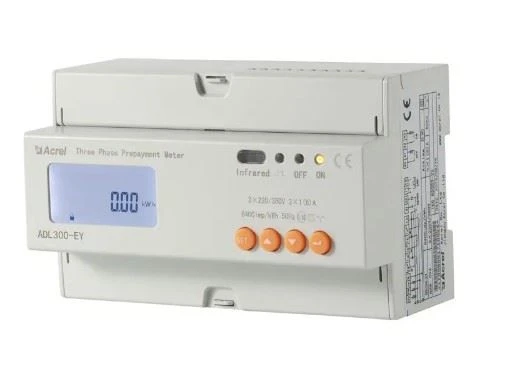

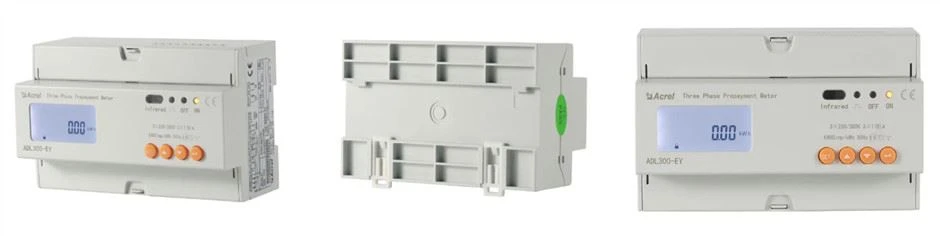

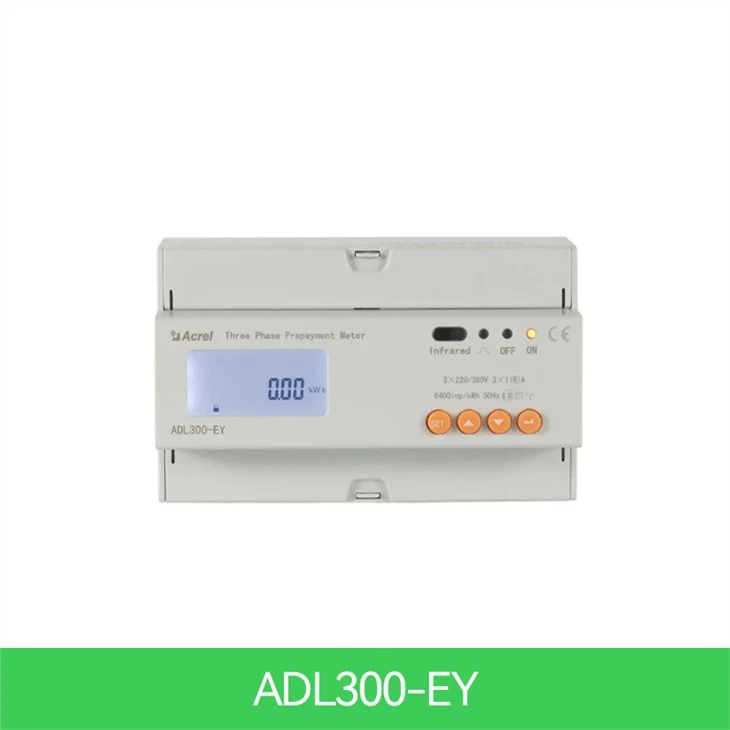

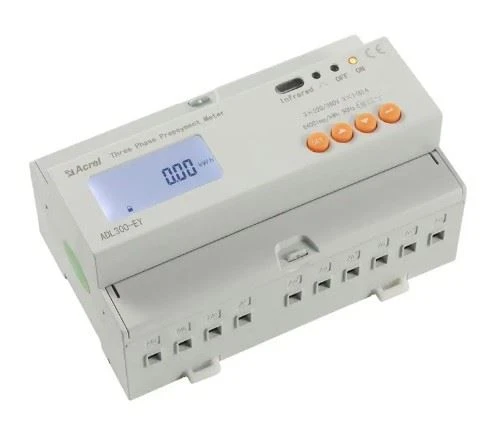

● Model: ADL300-EY

Kev piav qhia

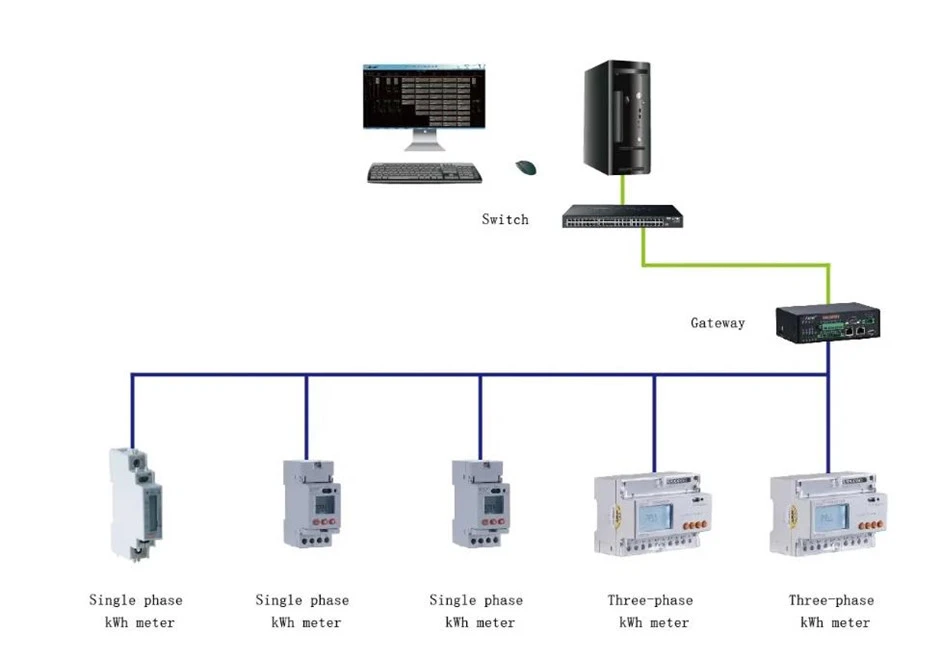

Tam sim no Acrel muaj peb qhov prepaid zog ntsuas, ADL100-EY ib theem prepaid meters nrog intro- tswj, ADL300-EY peb-theem prepaid meters nrog intro-tswj, thiab ADF400L prepaid zog ntsuas, lawv tau dav siv rau kev xam cov tib thiab peb-theem active zog raws li qhov zaus ntawm 50 Hz. Lub 'meter' muaj lub luag haujlwm ntawm kev them nyiaj ua ntej, tswj kev thauj khoom thiab RS485 kev sib txuas lus, thiab lwm yam. Hauv cov meters muaj qhov tuav me me kom paub qhov tam sim no rau lossis tawm. Nrog Acrel IoT EMS platform tuaj yeem paub cov chaw taws teeb tswj lub zog. Cov ntsuas no ua tau raws li cov kev xav tau ntawm cov ntsuas hluav taws xob hluav taws xob hauv IEC62053-21, IEC62053-22 tus qauv.

Qhov tshwm sim

Tsis muaj

Technical parameter		ADL300-EY
Qhov hluav taws xob	Reference voltage	3220/380V
	Kev siv zaus	50 Hz
	Kev noj haus	<4va(each>
Tam sim no	Input tam sim no	1(6)A,10(80)A
	Pib tam sim no	Connect direct: {{0}}.004 Ib, connect via CT: 0.002In
	Kev noj haus	<4va (maximum="">
Kev ntsuas kev ua tau zoo	Qhov tseeb ntawm ntsuas	0.5s Chav
Lub moos raug		yuam kev tsawg dua los yog sib npaug rau 0.5s/d
Active mem tes	mem tes dav	80ms±20ms
Active mem tes	Pulse tas li	6400 kWh/m², 400 imp/kWh
Kev sib txuas lus ntawm	Interface	RS485 (A ntxiv ,B-)
	Kev sib txuas hom	Shielded twisted khub conductors
	raws tu qauv	MODBUS-RTU

Muaj nuj nqi

Lub npe ua haujlwm	Cov lus piav qhia ua haujlwm		Muaj nuj nqi muab
	ADL300-EY	ADL100-EY
Kev ntsuas kWh	Tag nrho cov active kWh (zoo thiab tsis zoo nyob rau hauv tag nrho)		■
Kev ntsuas hluav taws xob tsis muaj	U, I, P, Q, S, PF, F		■
Ua ntej- them nyiaj hom	Los ntawm RS485 kev sib txuas lus prepaid recharge, cov ntaub ntawv encryption		■
Tswj	Ua-hauv siab- muaj peev xwm sub- tuav relay kom ua tiav thauj khoom ntawm -off tswj		■
LCD zaub	8-ntsis seem LCD zaub		■
Kev sib txuas lus	Kev sib txuas lus interface: RS485, Kev sib txuas lus raws tu qauv: MODBUS-RTU		■
Ntau -tariff	4 tus nqi tariff, 14-lub sij hawm ib hnub		□F
