Cov ntaub ntawv

Yam ntxwv

1) Kev sib txuas lus:RS485 / Modbus-Rtu

2) Multi-circuit:A ntxiv rau B independet 2 circuit DC24V tso zis

3) Rated U thiab kuv:U: AC 220V / 380V I: 5A

Muaj nuj nqi

· A ntxiv rau B ywj siab 2 circuits peb-theem txoj kab tseem ceeb busbar qhov hluav taws xob, tam sim no, lub zog ua haujlwm, lub zog rov ua haujlwm, lub zog pom tseeb, lub zog muaj zog, lub zog ua haujlwm, lub zog reactive, Zero-to-av voltage, to tam sim no, xoom ntu tam sim no, tag nrho harmonic cov ntsiab lus (THD), 2-63 harmonics, ambient kub thiab av noo.

· 8 hloov cov xwm txheej inputs,

· 4 hloov cov xwm txheej tso tawm, 2 saib xyuas cov dej xau

· 3 RS485 kev sib txuas lus

Kev teeb tsa

DIN 35 hli

Qhov Loj (L * W * H):

180*90*45

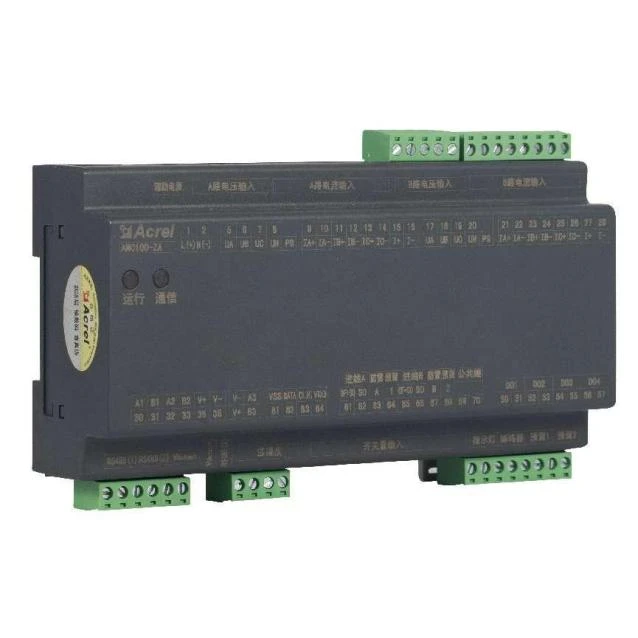

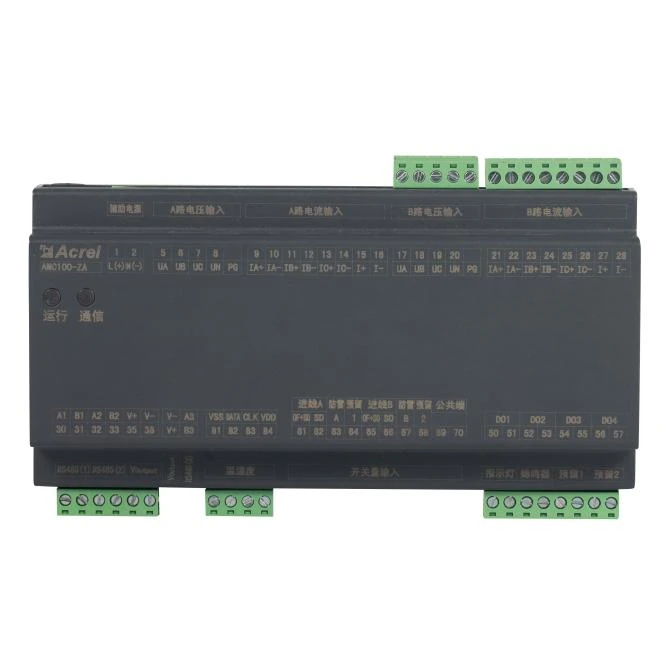

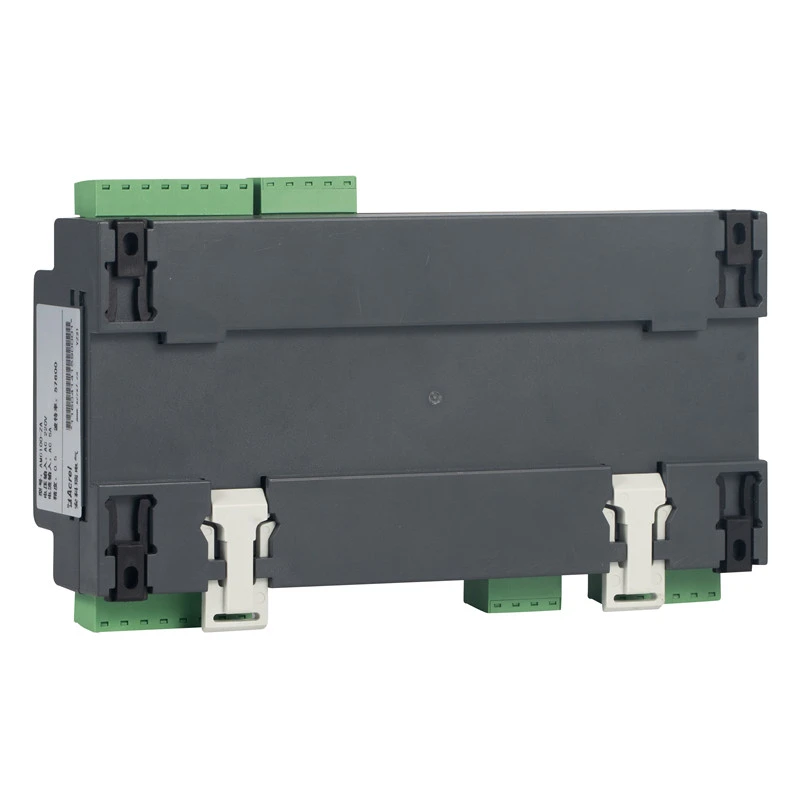

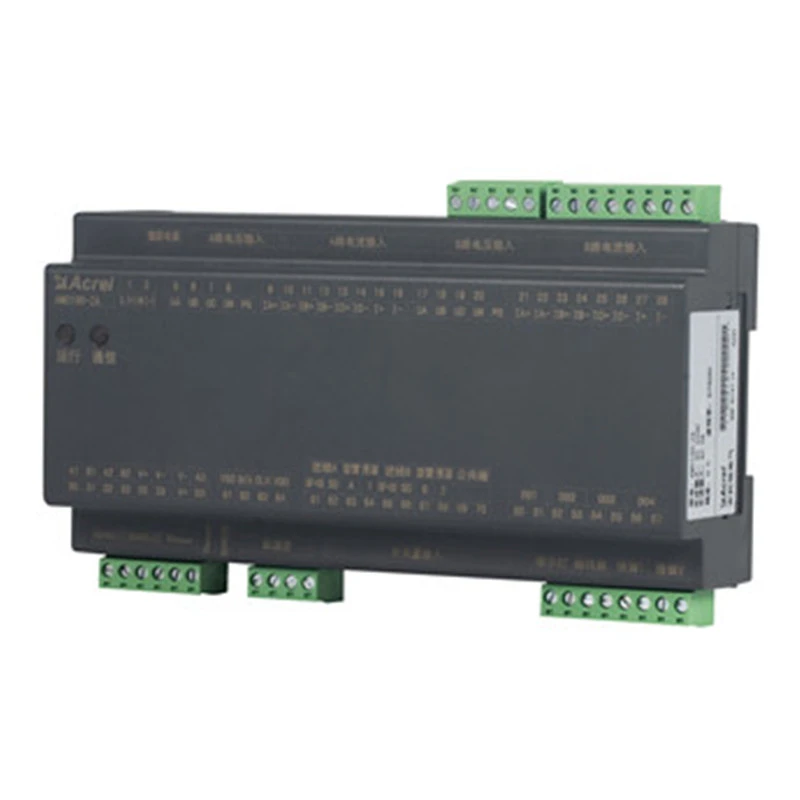

Qhov tsos

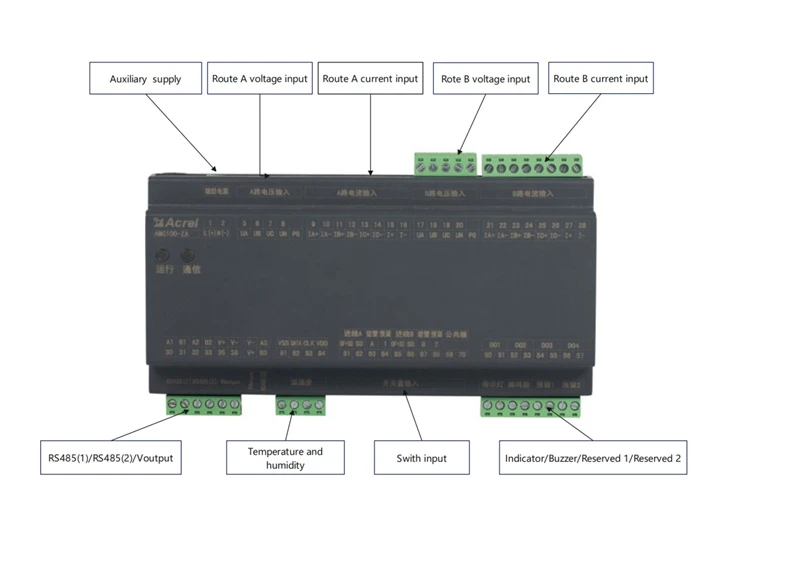

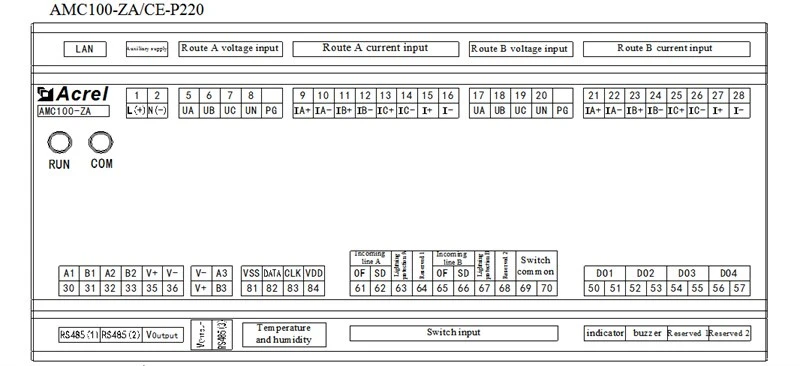

Kev xaim

Parameter

Distribution System		AC
Bus voltage	Rated voltage	220V
	Kev ntsuas ntau	± 20 feem pua
	Tshaj dhau	Instantaneous voltage 2 zaug / sec
Tam sim no nkag Circuit Court	Rated	Secondary 5A
	Ntau yam	0-6A
	Tshaj dhau	Nruam 1.2 zaug, instantaneous 10 zaug / sec
Qhov tseeb	Cov kab nkag	Voltage/tam sim no theem {{0}}.2, nquag zog/zog theem 0.5, reactive zog/zog theem 1
	Kub	± 1 degree
	Cov av noo	± 5 feem pua
Ntau zaus		AC 45-65Hz
Pab txhawb zog		AMC100-ZA: teeb liab coj lub zog (tsawg dua lossis sib npaug li 15W) AMC100-ZA-P220: 220V ywj siab fais fab mov AMC100-ZA-P24: DC 12-24 V ywj siab fais fab mov
Rwb thaiv tsev tsis kam		Lub rwb thaiv tsev tiv thaiv ntawm tag nrho cov terminals thiab cov conductive qhov chaw ntawm lub plhaub yog tsis tsawg tshaj li 100MΩ
Hloov cov zis		4 channel 3A 250VAC / 3A 30VDC
Hloov cov tswv yim		8 qob dry
Kev sib txuas lus		1 cais RS485/Modbus-RTU mus rau lub keeb kwm yav dhau 1 RS485/Modbus-RTU rau kov npo 1 RS485/Modbus-RTU kev twb kev txuas downstream module Xaiv tau 1-channel Ethernet kev sib txuas lus muaj nuj nqi
Kev teeb tsa		DIN35mm rail lossis hauv qab phaj installation

Nqe lus

Cov duab	Hom	Muaj nuj nqi	FOB Shang Hai (USD)
	AMC100-ZA	Saib xyuas tag nrho lub zog tsis muaj zog ntawm A ntxiv rau B dual peb-theem AC nkag Circuit Court, 8 hloov cov xwm txheej inputs, 4 hloov cov xwm txheej tawm, 2 kev saib xyuas dej, 1 ntsuas kub thiab av noo, 3 RS485 kev sib txuas lus	148
	AMC-FA 30	Saib xyuas lub zog tag nrho ntawm tag nrho 30 ceg ntawm A ntxiv rau B dual AC qhov hluav taws xob, thiab 1 RS485 kev sib txuas lus	133
	AMC-FA48	Saib xyuas lub zog tag nrho ntawm tag nrho ntawm 48 ceg ntawm A ntxiv rau B dual AC qhov hluav taws xob, thiab 1 RS485 kev sib txuas lus	177
	AMC-FAK 30	Saib xyuas tag nrho lub zog tsis muaj zog thiab hloov cov xwm txheej ntawm tag nrho 30 ceg ntawm A ntxiv rau B dual AC qhov hluav taws xob, thiab 1 RS485 kev sib txuas lus	177
	AMC-FAK 48	Saib xyuas lub zog tag nrho thiab hloov cov xwm txheej ntawm tag nrho ntawm 48 ceg ntawm A ntxiv rau B dual AC qhov hluav taws xob, thiab 1 RS485 kev sib txuas lus	237
	AMC100-ZD	Saib xyuas qhov hluav taws xob, tam sim no, lub zog, thiab hluav taws xob hluav taws xob ntawm 2 txoj kab txuas ntxiv A ntxiv rau B, 8 hloov cov tswv yim, 4 hloov cov zis, 1 qhov ntsuas kub thiab av noo, thiab 3 RS485 kev sib txuas lus	148
	AMC100-FD30	Saib xyuas lub zog tag nrho ntawm A ntxiv rau B dual DC cov kab tawm hauv tag nrho ntawm 30 ceg, thiab 1 RS485 kev sib txuas lus	133
	AMC-FD48	Saib xyuas lub zog tag nrho ntawm A ntxiv rau B dual DC cov kab tawm hauv tag nrho ntawm 48 ceg, thiab 1 RS485 kev sib txuas lus	177
	AMC100-FDK30	Saib xyuas tag nrho lub zog tsis muaj zog thiab hloov pauv cov xwm txheej (active) ntawm A ntxiv rau B dual DC qhov hluav taws xob 30 ceg, thiab 1 RS485 kev sib txuas lus	177
	AMC100-FDK48	Saib xyuas tag nrho lub zog tsis muaj zog thiab hloov pauv cov xwm txheej (active) ntawm A ntxiv rau B dual DC qhov hluav taws xob 48 ceg, thiab 1 RS485 kev sib txuas lus	237
