Cov ntaub ntawv

Yam ntxwv

1) Kev sib txuas lus:RS485 / Modbus-Rtu

2) Multi-circuit:A ntxiv rau B independet 2 circuit DC24V tso zis

3) Rated U thiab kuv:U: DC 48V / 240V / 336V I: 5V

Muaj nuj nqi

· A ntxiv rau B ywj siab ob kab DC ntawm qhov hluav taws xob, tam sim no, lub zog, hluav taws xob hluav taws xob, 1 channel kub thiab av noo xyuas

· 8 hloov cov xwm txheej inputs

· 4 hloov cov xwm txheej tso tawm

· 3 RS485 kev sib txuas lus

Kev teeb tsa

DIN 35 hli

Qhov Loj (L * W * H):

180*90*45

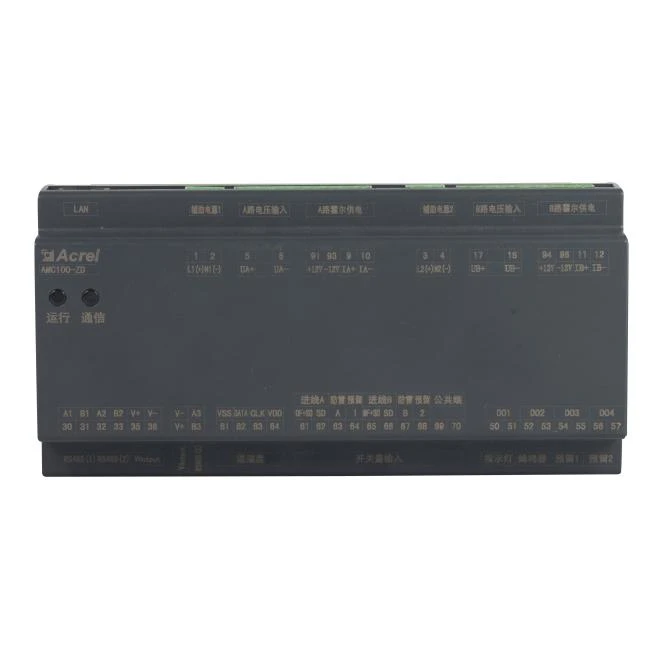

Qhov tsos

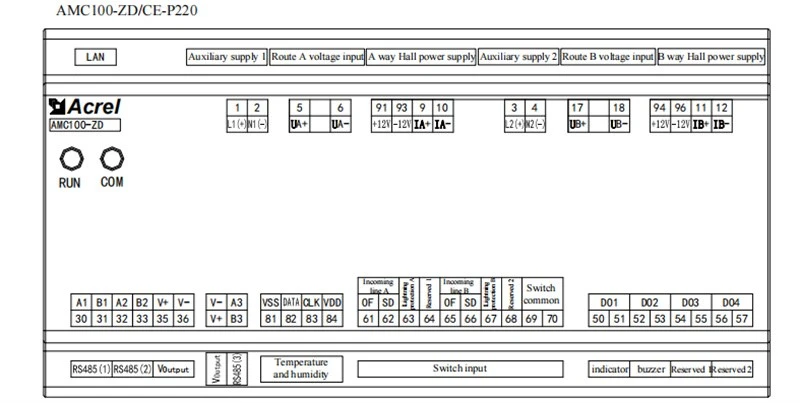

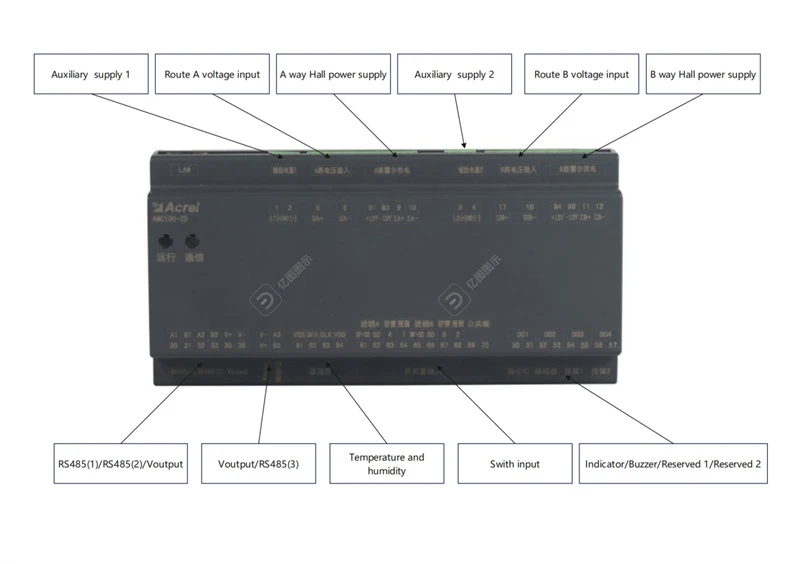

Kev xaim

Parameter

Distribution System		DC
Bus voltage	Rated voltage	48VDC, 240VDC, 336VDC
	Kev ntsuas ntau	± 20 feem pua
	Tshaj dhau	Instantaneous voltage 2 zaug ib ob
Tam sim no nkag Circuit Court	Rated	5V (Hall sensor, ± 12V powered by AMC100-ZD)
	Tshaj dhau	Duration yog 1.2 zaug, instantaneous 10 zaug / thib ob
Ib puag ncig	Qhov siab	Tsawg dua los yog sib npaug li 2500m
	Kub	Kev Ua Haujlwm:-15 degree -55 degree Cia:-25 degree -70 degree
	Cov av noo	Tus txheeb ze humidity Tsawg dua los yog sib npaug li 93 feem pua
Kev teeb tsa		Txoj kev DIN35mm rail lossis hauv qab phaj installation
Pab txhawb zog		AMC100-ZD: Lub zog hluav taws xob (tsawg dua lossis sib npaug rau 15W) AMC100-ZD-P24:DC 12-24V ywj siab fais fab mov AMC100-ZD-P220: 1, Thaum qhov hluav taws xob tas li yog DC240V, DC336V, lub zog los ntawm AC220V, DC240V, DC336V ywj siab muab 2, Thaum qhov hluav taws xob tas li yog DC48V, lub zog los ntawm DC48V ywj siab muab khoom
Rwb thaiv tsev tsis kam		Lub rwb thaiv tsev tsis kam ntawm tag nrho cov terminals thiab cov khoom siv hluav taws xob ntawm lub plhaub yuav tsum yog tsawg kawg yog 100MΩ
Hloov cov zis		4 channel 3A 250VAC / 3A 30VDC
Hloov cov tswv yim		8 qob dry
Kev sib txuas lus		1 channel cais RS485 / Modbus-RTU rau lub hauv paus system 1RS485 / Modbus-RTU rau kov npo 1RS485 / Modbus-RTU kev twb kev txuas mus rau downstream module 1-channel Ethernet kev sib txuas lus muaj nuj nqi yog xaiv tau
Kev teeb tsa		DIN35mm rail lossis hauv qab phaj installation

Nqe lus

Cov duab	Hom	Muaj nuj nqi	FOB Shang Hai (USD)
	AMC100-ZA	Saib xyuas tag nrho lub zog tsis muaj zog ntawm A ntxiv rau B dual peb-theem AC nkag Circuit Court, 8 hloov cov xwm txheej inputs, 4 hloov cov xwm txheej tawm, 2 kev saib xyuas dej, 1 ntsuas kub thiab av noo, 3 RS485 kev sib txuas lus	148
	AMC-FA 30	Saib xyuas lub zog tag nrho ntawm tag nrho 30 ceg ntawm A ntxiv rau B dual AC qhov hluav taws xob, thiab 1 RS485 kev sib txuas lus	133
	AMC-FA48	Saib xyuas lub zog tag nrho ntawm tag nrho ntawm 48 ceg ntawm A ntxiv rau B dual AC qhov hluav taws xob, thiab 1 RS485 kev sib txuas lus	177
	AMC-FAK 30	Saib xyuas tag nrho lub zog tsis muaj zog thiab hloov cov xwm txheej ntawm tag nrho 30 ceg ntawm A ntxiv rau B dual AC qhov hluav taws xob, thiab 1 RS485 kev sib txuas lus	177
	AMC-FAK 48	Saib xyuas lub zog tag nrho thiab hloov cov xwm txheej ntawm tag nrho ntawm 48 ceg ntawm A ntxiv rau B dual AC qhov hluav taws xob, thiab 1 RS485 kev sib txuas lus	237
	AMC100-ZD	Saib xyuas qhov hluav taws xob, tam sim no, lub zog, thiab hluav taws xob hluav taws xob ntawm 2 txoj kab txuas ntxiv A ntxiv rau B, 8 hloov cov tswv yim, 4 hloov cov zis, 1 qhov ntsuas kub thiab av noo, thiab 3 RS485 kev sib txuas lus	148
	AMC100-FD30	Saib xyuas lub zog tag nrho ntawm A ntxiv rau B dual DC cov kab tawm hauv tag nrho ntawm 30 ceg, thiab 1 RS485 kev sib txuas lus	133
	AMC-FD48	Saib xyuas lub zog tag nrho ntawm A ntxiv rau B dual DC cov kab tawm hauv tag nrho ntawm 48 ceg, thiab 1 RS485 kev sib txuas lus	177
	AMC100-FDK30	Saib xyuas tag nrho lub zog tsis muaj zog thiab hloov pauv cov xwm txheej (active) ntawm A ntxiv rau B dual DC qhov hluav taws xob 30 ceg, thiab 1 RS485 kev sib txuas lus	177
	AMC100-FDK48	Saib xyuas tag nrho lub zog tsis muaj zog thiab hloov pauv cov xwm txheej (active) ntawm A ntxiv rau B dual DC qhov hluav taws xob 48 ceg, thiab 1 RS485 kev sib txuas lus	237
