● Daim Ntawv Thov
Nyob rau xyoo tsis ntev los no, hauv kev teb rau kev ua kom sov hauv ntiaj teb thiab kev hloov pauv huab cua tshwm sim los ntawm kev tso pa roj carbon tsev tso pa countries lub teb chaws loj tau tsom mus rau kev txhawb nqa cov tsheb hluav taws xob los hloov cov tsheb ib txwm siv roj. Thiab kev tsim cov nqi them nqi yog ib qho tseem ceeb heev hauv kev txhawb nqa lub zog tsheb tshiab.Yog li ntawd, ntau qhov kev them nqi phiaj xwm tau tshwm sim thoob ntiaj teb.
Ib theem thiab peb theem AC, DC lub zog ntsuas hluav taws xob ua raws IEC tus qauv sib xws thiab tuaj yeem siv rau txhua yam ntawm AC thiab DC them nqi kom paub txog kev them nqi ntsuas lub zog, thiab tuaj yeem xa hluav taws xob tsis nyob hauv lub sijhawm tiag tiag los ntawm kev sib txuas lus.
Qauv
Lub luag haujlwm tseem ceeb
Nws tuaj yeem ntsuas thiab ntsuas ntsuas hluav taws xob xws li qhov hluav taws xob, tam sim no, lub zog, lub zog, thiab txhawb RS485 kev sib txuas lus thiab hluav taws xob lub zog siv hluav taws xob.
1. Qhov tseeb
Kev Muaj Zog Zoo: Chav Kawm 0.5S lossis Chav Kawm 1
2. Yeem Kev Kho
Yeem ntau tus nqi se.
3. Daim ntawv pov thawj
Nrog CE lossis IEC muaj ntawv pov thawj.
Kev Xaiv Khoom
Yam khoom | Zoo | Hom | Muaj nuj nqi |

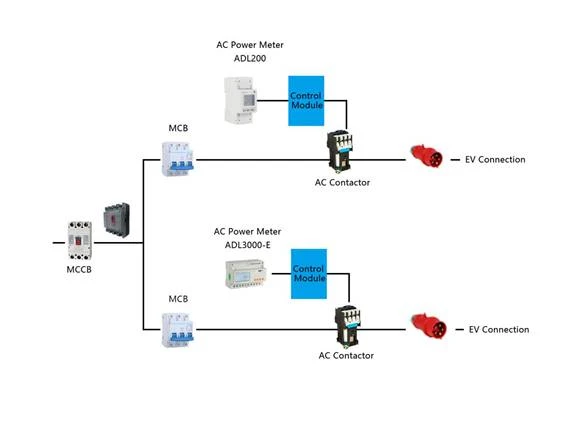

Ib Theem AC Zog Meter |
| ADL10-E | Din rail ntsia; ib theem 60A, 50/60Hz cov tswv yim; ntsuas cov ntsuas hluav taws xob xws li qhov hluav taws xob, tam sim no, lub zog, lub zog; RS485 kev sib txuas lus (Modbus raws tu qauv). |
| ADL100-ET | Din rail ntsia; ib theem 60A, 50/60Hz cov tswv yim; ntsuas cov ntsuas hluav taws xob xws li qhov hluav taws xob, tam sim no, lub zog, lub zog; RS485 kev sib txuas lus (Modbus raws tu qauv). lub zog mem tes tso zis; yeem ntau tus nqi. | |
| TXL 200 | Din rail ntsia; ib theem 80A, 50/60Hz cov tswv yim; ntsuas cov ntsuas hluav taws xob xws li qhov hluav taws xob, tam sim no, lub zog, lub zog, thiab lwm yam; RS485 kev sib txuas lus (Modbus raws tu qauv); lub zog mem tes tso zis; yeem ntau tus nqi. | |
Peb Theem AC Zog Ntsuas |
| ADL400 | Din rail ntsia; peb theem 80A, 50/60Hz input; ntsuas cov ntsuas hluav taws xob xws li qhov hluav taws xob, tam sim no, lub zog, lub zog; RS485 kev sib txuas lus (Modbus raws tu qauv); lub zog mem tes tso zis; yeem ntau tus nqi. |
| ADL3000-E | Din rail ntsia; peb theem 80A, 50/60Hz input; ntsuas cov ntsuas hluav taws xob xws li qhov hluav taws xob, tam sim no, lub zog, lub zog; RS485 kev sib txuas lus (Modbus raws tu qauv); lub zog mem tes tso zis; yeem ntau tus nqi. | |

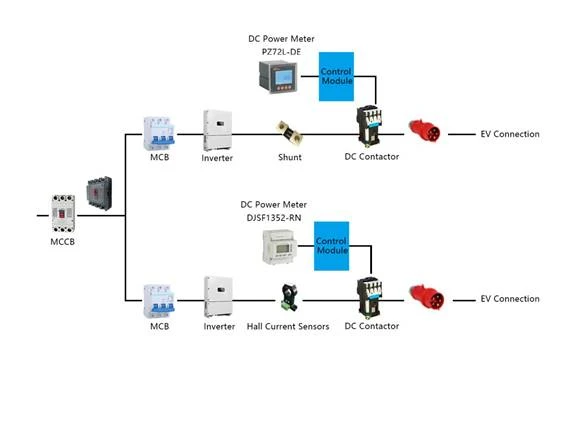

DC Zog Meter |
| PZ72 (L) -DE | Vaj huam sib luag mounted, ntsuas DC voltage, tam sim no, lub zog; ntsuas DC zog; ncaj qha txuas qhov hluav taws xob 0-1000V; kev ntsuas tam sim no txhawb 75mV tso tawm ntawm shunt, txhawb 0-5V, 0-20mA tso tawm ntawm chav; RS485 (Modbus raws tu qauv) |
| SWB 1352 | Phab ntsa mounted, ntsuas DC voltage, tam sim no, lub zog; ntsuas DC zog; ncaj qha txuas qhov hluav taws xob 0-1000V; kev ntsuas tam sim no txhawb nqa 75mV cov zis tawm, txhawb 0-5V, 0-20mA tso zis ntawm chav; RS485 (Modbus raws tu qauv) | |
| DJSF1352-RN | Din-rail mounted, txhawb kev xaiv ob-channel DC voltage, tam sim no, ntsuas lub zog; ntsuas DC zog; ncaj qha txuas qhov hluav taws xob 0-1000V; kev ntsuas tam sim no txhawb nqa 75mV cov zis, txhawb Hall sensor 0-5V, 0-20mA tso zis; RS485 kev sib txuas lus (Modbus raws tu qauv) | |
Shunt |
| AFL-TSO | Kev Qhia Tshwj Xeeb: 300A/75mV |
Hall Sensor |
| AHKC | Kev Qhia Tshwj Xeeb: 1000A/5V |

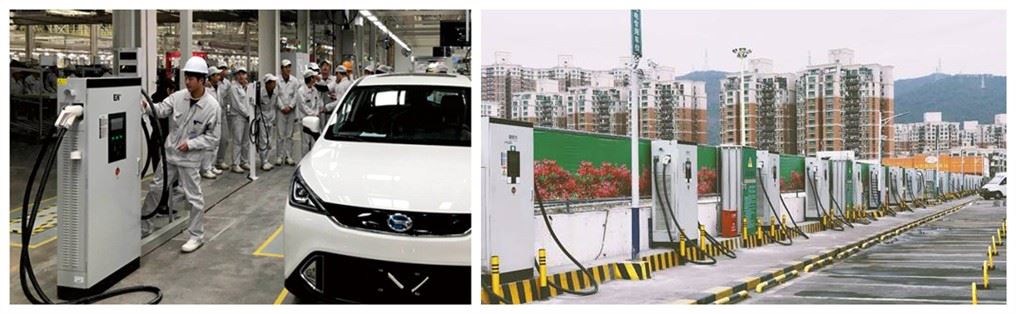

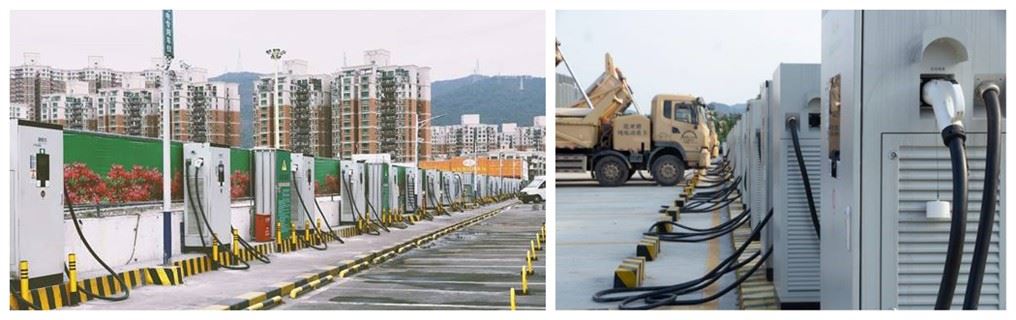

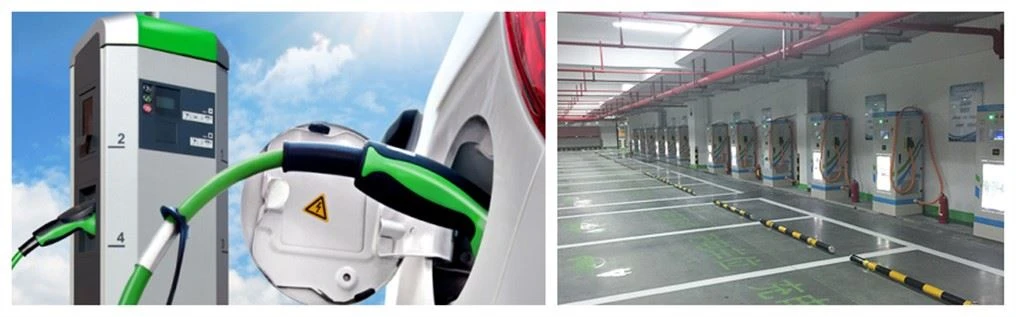

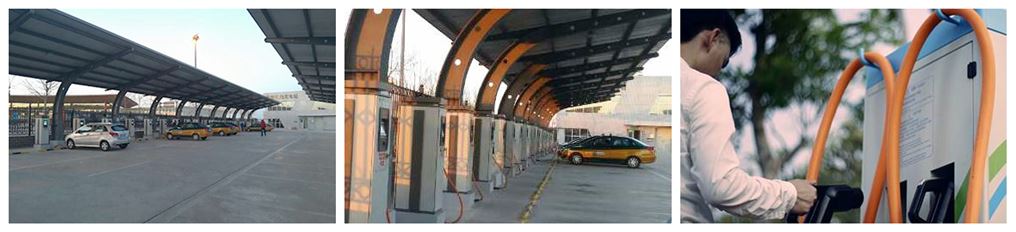

Duab Nyob Ntawm Qhov Chaw
