1. Qhov project Overview
Lub tuam txhab cov ntaub ntawv hauv South Africa tau hu rau peb lub tuam txhab los nrhiav ib lub zog ntsuas hluav taws xob. Tom qab ua kom pom tseeb ntawm qhov yuav tsum tau ua, nws tau txais ib lub zog ntsuas ADL10-E los sau cov ntaub ntawv, thiab tom qab ntawd xa cov ntaub ntawv mus rau lub platform los ntawm lub rooj vag AWT100-wifi.
2. ADL 10-E

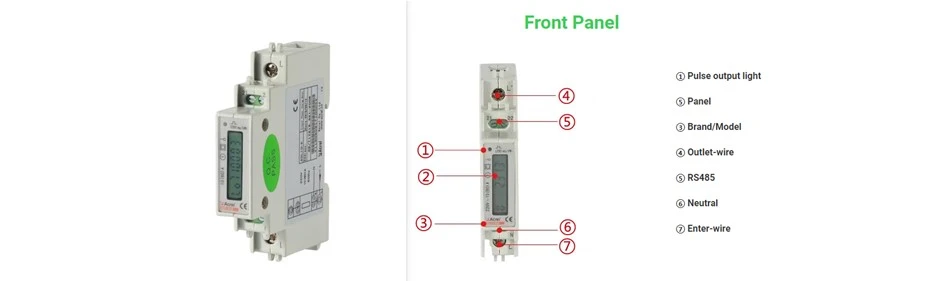

2.1 Khoom Qhia

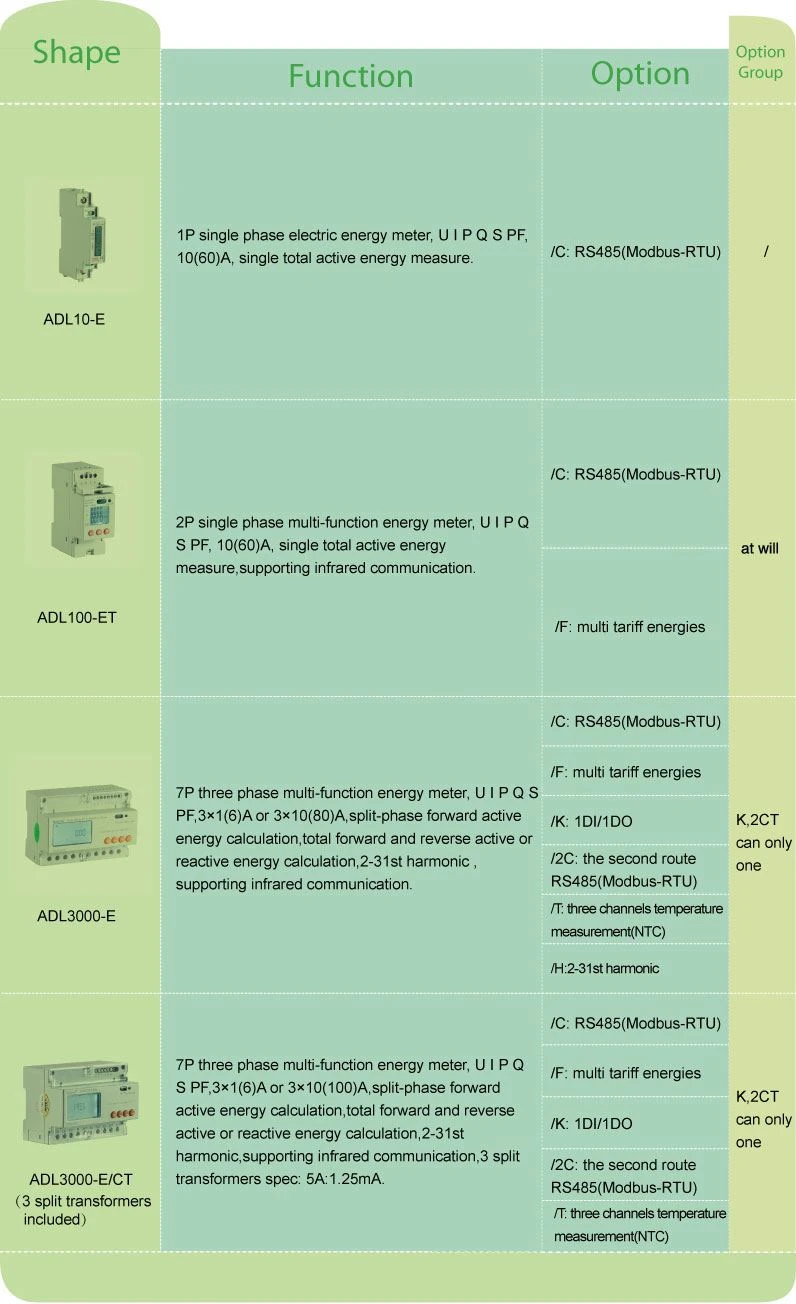

2.2 Yam khoom
2.3 Parameter
Hom | Ntev | Dav | Qhov siab |
ADL 10-E | 96mm ua | 18 hli | 70 hli |
Qhov hluav taws xob | Reference voltage | AC 220 V | |
Kev siv zaus | 45-65 Hz | ||
Kev noj haus | & lt; 10VA (ib theem) | ||
Tam sim no | Qhov siab tshaj plaws | 60A | |
Pib tam sim no | 0.004 Ib | ||
Kev noj haus | & lt; 4VA (siab tshaj tam sim no) | ||
Kev ntsuas kev ua tau zoo | Qhov tseeb ntawm active kWH | Chav kawm 1 | |
Cov qauv | TS EN 62053-21: 2003 | ||
mem tes | mem tes dav | 80+20 ms | |
Pulse tas li | PEB 3200 kWh | ||
Kev sib txuas lus | Interface | RS485 ua | |
raws tu qauv | Modbus-RTU | ||
Outling | L * W * H (mm) | 18*88*70 | |
Ib puag ncig | Kub | Kev khiav hauj lwm: -25 ℃ ~ 55 ℃ ; Cia: -40 ℃ ~ 70 ℃ | |
Cov av noo | ≦95% (tsis muaj condensation) | ||
Qhov siab | & lt; 2000m |

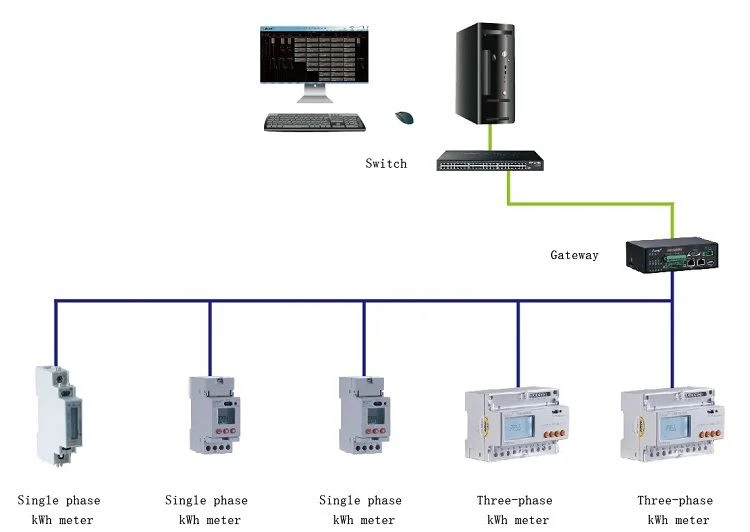

2.4 Network
2.5 Installation site
