Cov Lus Qhia: Daim ntawv no qhia txog daim ntawv thov ntawm Acrel DJSF1352-RN DC lub zog ntsuas hluav taws xob hauv DC sab ntawm lub tshuab hluav taws xob photovoltaic hauv Nigeria. Nws yog tsuas yog siv los ntsuas DC tam sim no nyob rau hauv lub tshuab hluav taws xob photovoltaic, thiab koom tes nrog cov cuab yeej tam sim no los ntsuas, sib txuas lus thiab tswj cov kab ke hauv Circuit Court.
1. Qhov project Overview
Lub tuam txhab nyob hauv Nigeria thiab yog lub tuam txhab hluav taws xob tshiab. Feem ntau koom nrog hauv kev tsim hluav taws xob photovoltaic hauv Africa. Cov neeg siv khoom xav siv DC meters thiab cov sensors rau saib xyuas tam sim no thiab voltage ntawm DC sab ntawm photovoltaic system.
2. DJSF1352-RN DC Zog Meters
DJSF1352-RN rail-mounted DC lub zog ntsuas hluav taws xob tsim los rau kev sib txuas lus hauv paus chaw nres tsheb, DC them pawg, hnub ci photovoltaic thiab lwm yam kev siv, cov ntsuas ntsuas no tuaj yeem ntsuas qhov voltage, tam sim no, lub zog thiab rov qab thiab rov qab zog thiab lwm yam hauv DC system. Kev siv qhov chaw tiag tiag, koj tuaj yeem ntsuas tag nrho lub zog, tab sis kuj ntsuas lub zog hauv lub sijhawm teev tseg. Cov txiaj ntsig kev xeem tuaj yeem siv rau cov khoom siv hauv zos, tab sis kuj nrog cov cuab yeej tswj kev lag luam, khoos phis tawj los tsim kev ntsuas thiab kev tswj hwm.
Lub 'meter' tuaj yeem muaj kev sib txuas lus infrared thiab RS-485 kev sib txuas lus interface, thiab txhawb Modbus-RTU raws tu qauv thiab DLT645-97 (07) raws tu qauv tib lub sij hawm.Lub 'meter' yuav muaj relay tswb tso zis thiab cov input muaj nuj nqi; Koj muaj peev xwm teem lub ratio. , tswb, thiab kev sib txuas lus los ntawm cov 'meter' vaj huam sib luag yuam sij raws li cov kev xav tau sib txawv.The 'meter' tuaj yeem muaj qhov xwm txheej kaw ntawm kev hloov pauv (Modbus raws tu qauv), programming thiab teeb tsa cov ntaub ntawv (645 raws tu qauv), instantaneous thiab lub sij hawm khov muaj nuj nqi ntawm cov ntaub ntawv (645 raws tu qauv), qhov siab tshaj plaws thiab qhov tsawg kawg nkaus tus nqi sau ua haujlwm ntawm qhov hluav taws xob thiab lub zog tam sim no.

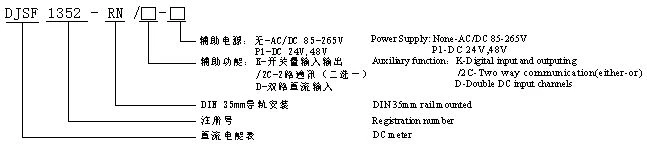

3. Hom thiab Function Description
Nco tseg: thaum xaiv dual DC input (D) muaj nuj nqi, yog Hall tam sim no sensor input siv nyob rau hauv
tam sim no channel, ib lub hwj huam mov module yuav tsum muab lub hwj chim rau lub thib ob Hall sensor; yog hais tias D muaj nuj nqi tsis muab, lub built-in fais fab mov ntawm hluav taws xob meter yuav siv tau.
Technical parameters | Index | |||||
Tswv yim | Nominal nqi | Voltage input ntau yam | Cov tswv yim tam sim no | |||
DC 0-1000V | Hall sensor: 0-20mA, 4-20mA, 0-5V, 0-10V thiab hais txog. | |||||
Tshaj dhau | 1.2 lub sij hawm ntsuas (nruam); 2 zaug ntsuas / 1 thib ob; | |||||
Kev siv fais fab | Voltage: ≤0.2VA, tam sim no ≤0.1VA | |||||
Chav kawm raug | Chav kawm 1 | |||||
Muaj nuj nqi | Zaub | 8-ntsis ntu LCD npo (LCD) | ||||
Kev sib txuas lus Interface | RS485 (ob txoj kev xaiv) | |||||
Kev sib txuas lus raws tu qauv | Modbus-RTU, DL/T 645-2007 | |||||
Hloov | Hloov cov zis | 2 Relay outputs, 2A / 30VDC lossis 2A / 250VAC | ||||
Hloov cov tswv yim | 2 qhuav tiv tauj inputs | |||||
Pulse tso zis | Qhov thib ob pulse tso zis, lub zog pulse tso zis | |||||
Saib SYS-> PLUS tso rau hauv cov ntawv qhia zaub mov 'meter'. Piv txwv li: Lub 'meter' qhia 100, uas yog 100imp / kWh | ||||||
Fais fab mov | Voltage ntau | AC / DC 85-265V lossis DC24V (± 10%) lossis DC48V (± 10%) | ||||
Kev siv fais fab | ≤ 3W | |||||
Fais fab zaus withstand voltage | Fais fab mov // Voltage input // Tam sim no input // Relay tso zis thiab hloov cov tswv yim // Kev sib txuas lus interface // Pulse output 3kV / 1min Fais fab mov // Relay output // Voltage input // Tam sim no input 3kV / 1min Pulse tso zis // Kev sib txuas lus interface // Hloov cov tswv yim 2kV / 1min | |||||
Impulse withstand voltage | ± 6 KV | |||||
Rwb thaiv tsev tsis kam | ≥ 40M Ω | |||||
Nruab nrab barrier-free teev ua hauj lwm | ≥50000h | |||||
Ib puag ncig | Kub | Kev khiav hauj lwm kub: -25 ° C ~ +65 ° C; Txwv kev ua haujlwm kub: -40 ° C ~ +70 ° C; Cia kub: -40 ℃ ～ +80 ℃ | ||||
Cov av noo | ≤ 93% RH, tsis muaj condensation, tsis muaj roj corrosive | |||||
Qhov siab | ≤2500m | |||||
4. Split Core Hall Tam sim no Transformer
Hom | Rated tam sim no | Rated tso zis | Ntsuas Aperture | Fais fab mov |
AHKC-UA | 0-(50-500)A | 5V/4V | Φ20 hli | ±15V |
AHKC-UA | DC 0-(50-500)A | 4-20 mA | Φ20 hli | 12V/24V |
UA-EKDA | AC 0-(50-500)A | 4-20 mA | Φ20 hli | 12V/24V |
UA-EKB | 0-(200-1000)A | 5V/4V | Φ40 hli | ±15V |
AHKC-IB | DC 0-(200-1000)A | 4-20 mA | Φ40 hli | 12V/24V |
AHKC-EEBDA | AC 0-(200-1000)A | 4-20 mA | Φ40 hli | 12V/24V |
UA-EKC | 0-(500-1500)A | 5V/4V | Φ55 hli | ±15V |
UA-EKCA | DC 0-(500-1500)A | 4-20 mA | Φ55 hli | 12V/24V |
UA-EKCDA | AC 0-(500-1500)A | 4-20 mA | Φ55 hli | 12V/24V |
UA-K | 0-(400-2000)A | 5V/4V | 64 * 16mm | ±15V |
AHKC-UA | DC 0-(400-2000)A | 4-20 mA | 64 * 16mm | 12V/24V |
UA-KDA | AC 0-(400-2000)A | 4-20 mA | 64 * 16mm | 12V/24V |
UA-H | 0-(500-3000)A | 5V/4V | 82*32 | ±15V |
AHK-UA | 0-(500-5000)A | 5V/4V | 104*36 | ±15V |
AHK-HB | 0-(2000-8000)A | 5V/4V | 132*52 | ±15V |
0-(10000-20000)A | 5V/4V | 132*52 | ±15V | |
0-(25000-40000)A | 5V/4V | 132*52 | ±15V | |
AHKC-HBAA | DC0-(2000-8000)A | 4-20 mA | 132*52 | 12V/24V |
DC0-(10000-20000)A | 4-20 mA | 132*52 | 12V/24V | |
DC0-(25000-40000)A | 4-20 mA | 132*52 | 12V/24V | |
AHKC-HBDA | AC0-(2000-8000)A | 4-20 mA | 132*52 | 12V/24V |
AC0-(10000-20000)A | 4-20 mA | 132*52 | 12V/24V | |
AC0-(25000-40000)A | 4-20 mA | 132*52 | 12V/24V |
5. Cov neeg siv khoom xav tau
客户 有 一个 太阳能 混合 动力 系统 .PV 板, 电池 储能 与 柴油 发生器 电信 站, 三者 连接 到 同 一根 母线. 客户 想 用 直流 仪表 来 监测 母线 的 电流 电压. 他们 的 太阳能 系统 是 电信 基站, 辅助DC48V, DC100A.
Cov neeg siv khoom muaj lub hnub ci hybrid. PV vaj huam sib luag, roj teeb cia thiab diesel generator rau lub chaw nres tsheb hauv xov tooj, Tag nrho 3 lub tshuab txuas nrog ib lub tsheb npav. Lawv xav paub watt teev nyeem los ntawm lub npav npav siv DC meter. Thiab lawv qhov chaw hnub ci yog qhov chaw telecom. Lub zog hluav taws xob yog DC 48V, tam sim no yog DC100A.
